Reattach Tubing and Chest Piece
Attach the additional tubing connector onto the end of CORE
as shown below. Then attach the chest piece into the tubing
connector as it was on the analog stethoscope.
To get the best sound, we recommend you test all Eko-supplied
tubing adapters & select the one that provides the tightest fit
with your analog stethoscope.

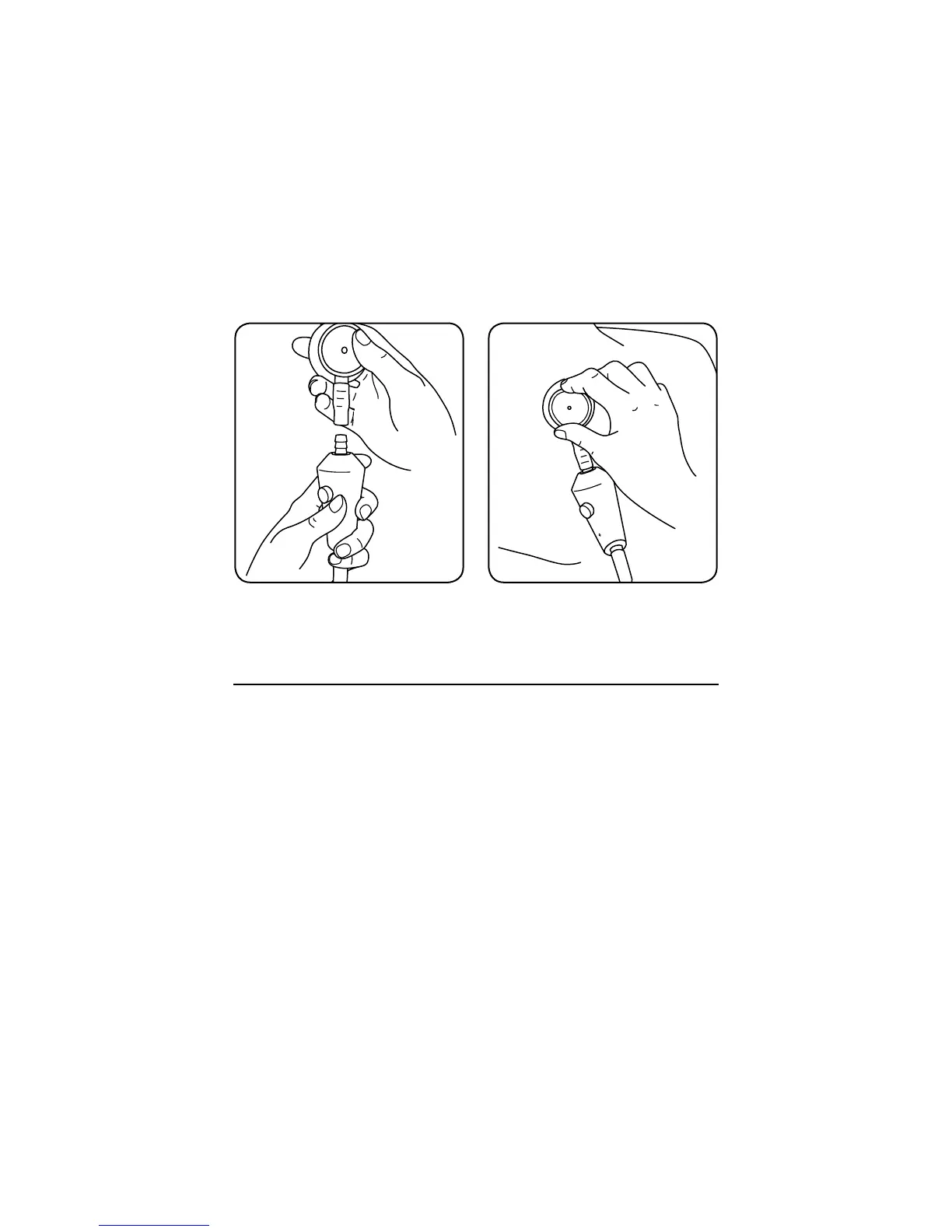

Fig. 5 CORE with Attached Tubing Fig. 6 Completed Installation
2.2 CORE Use
Charge Battery
The battery in CORE will need to be charged; insert the included
micro USB cable into the USB port on the device and plug the
other end into the included USB charger. The LED will begin to
flash yellow, signifying that it is charging. The LED will change to
solid yellow when the device is fully charged.
NOTE: CORE will not turn on while it is plugged in and charging.
Power Off
When CORE is turned Off, sounds will be heard as through the
analog stethoscope. “OFF” will be displayed on the toggle when
the device is powered off.
Power On
Depress the power slider to move the switch from the OFF to the
ON position. “ON” will be displayed on toggle when the device
is powered on.
