EKO KP480P User Manual

12
Once you have your Projector all setup, input mode selected, power turned on.
You can now adjust the focus and keystone correct (tilt forward or backwards)
depending on the orientation of your projector.

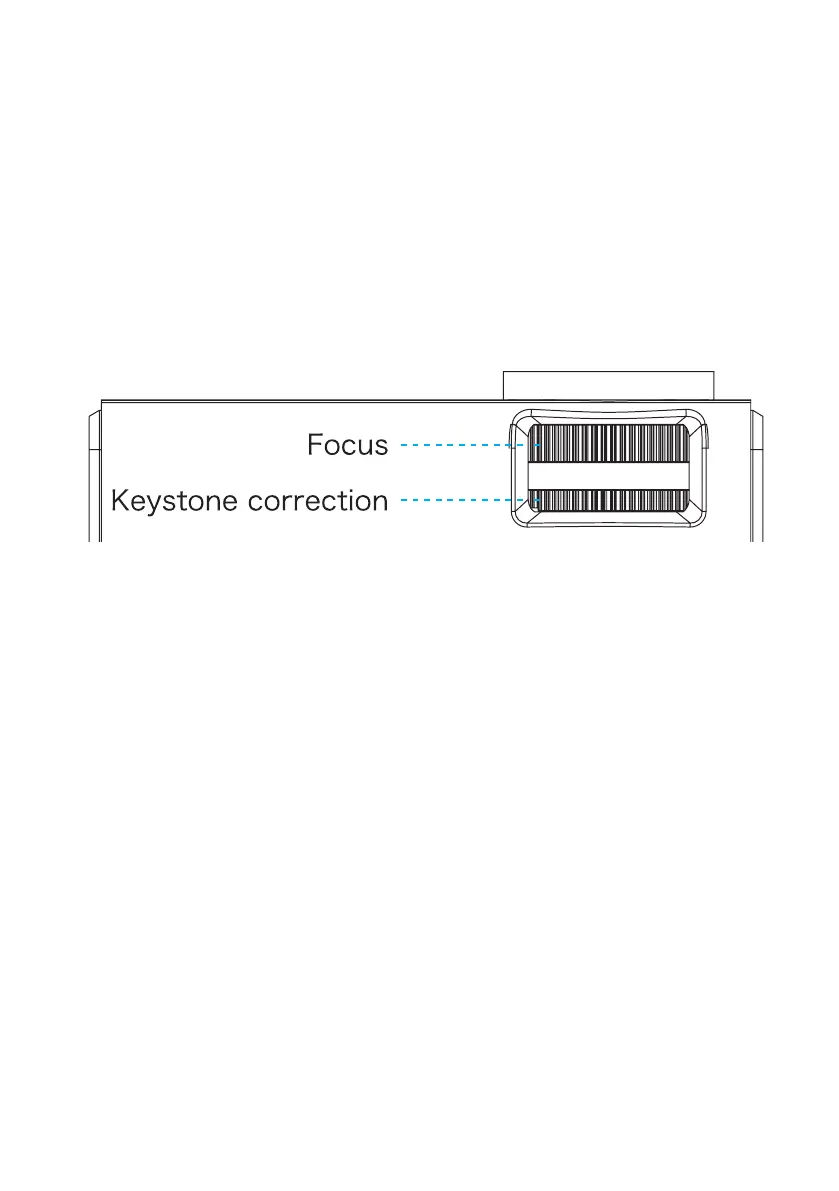

1. Turn the FOCUS dial to adjust the LENS focus.
LEFT DIRECTION - Is toward larger screen sizes best focus point.
RIGHT DIRECTION - Is towards smaller screen sizes best focus point.
2. Turn the KEYSTONE dial to adjust the Tilt Direction.
RIGHT DIRECTION - Tilts the screen backwards (top of screen)
This is best for aiming the project up higher
on the wall. Tilting the screen backward will
straighten out the picture.
LEFT DIRECTION - Will tilt the screen back to the standard position.
PROJECTOR LENS FOCUS

EKO KP480P Specifications

General

Brand	EKO
Model	KP480P
Category	Projector
Language	English
