EKO INSTRUMENTS CO., LTD. - Pyranometer MS-80 - Instruction Manual Ver. 3
Pg. 17
2-2. How to Connect MS-80A (See Table 5-3. Wire Color Codes also)
Connect the output cable ends to DC power supply (12-24V), ammeter, voltmeter or data logger
(voltage can be measured by connecting precision resistance in series). For overcurrent
protection, install fuse (0.5A) in series between the DC power supply and MS-80A connecting wire.
Connection for measuring by Current
Connection for measuring by Voltage
(Connecting precision resistance in series)
*A voltage drop will occur when a precision resistance is connected in series. To compensate the
voltage drop, it is recommended to use 24V for power supply voltage.
*Please choose the precision resistance value and cable length those can keep the power supply
to MS-80 over DC 9.6V

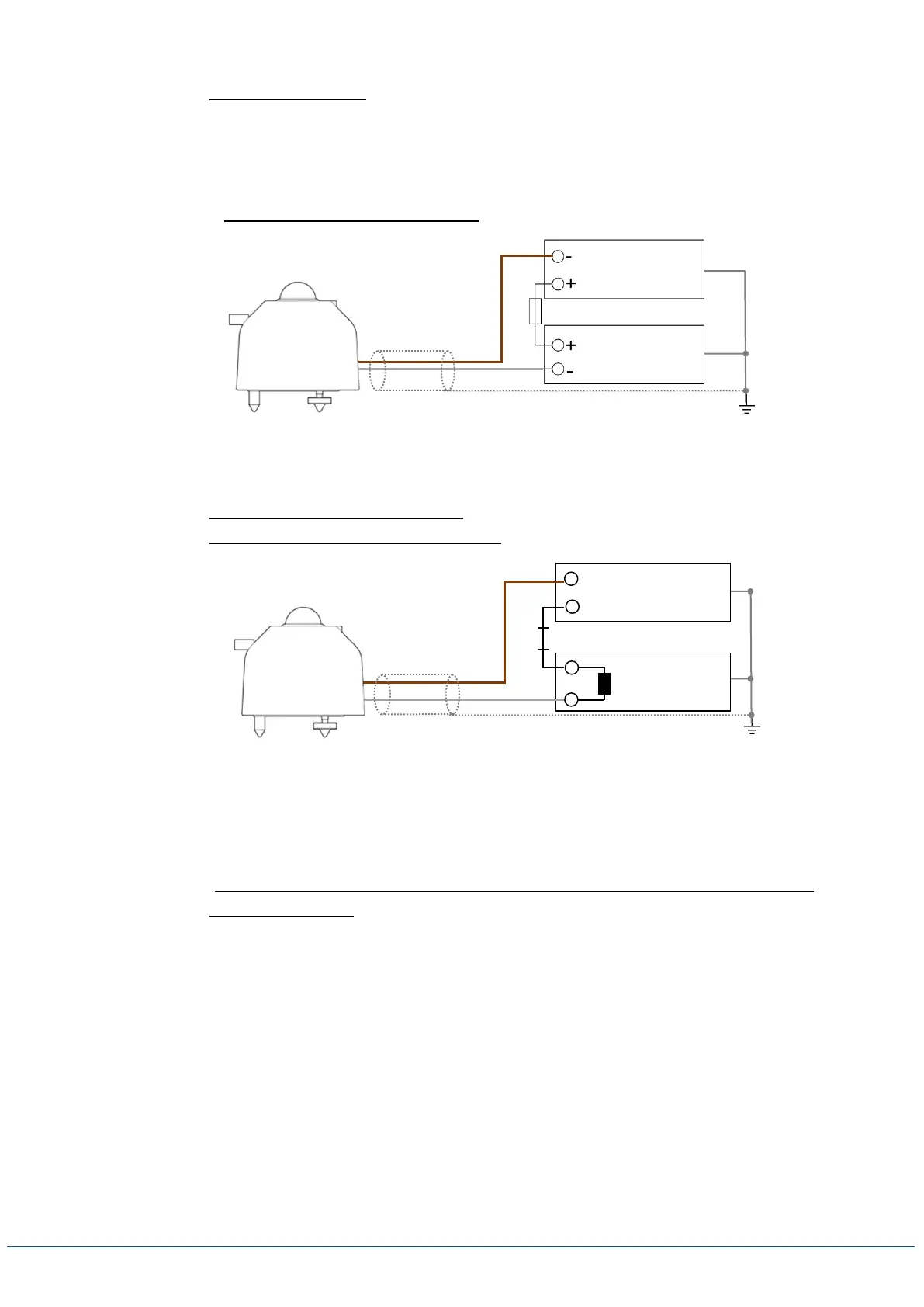

Figure 5-3A. How to Connect MS-80A
Figure 5-3B. How to Connect MS-80A
Power supply
DC12-24V
4-20mA Input
Measurement Device
Fuse (0.5A)
Power supply
DC12-24V
1-5V input
Measurement Device
Device
Fuse (0.5A)
-
+
-
+
250Ω
