5. Getting Started
5- 1. Parts Name and Descri pti ons
Each part name and its main function is described below.
Parts Name
A. Diffuser
B. Glass Dome
C. Detector
D. Body
E. Sun screen
F. Levelling Screw
G. Cable, Connector
H. Spirit Level
I. Knurling Screw
J. Detector temperature
sensor
K. Internal temperature
sensor
Parts Name
A. Diffuser
B. Glass Dome
C. Detector
D. Body
E. Levelling Screw
F. Cable
G. Spirit Level
MS-80 / MS-80S
MS-80U
*The cable can’t be removed from the pyranometer

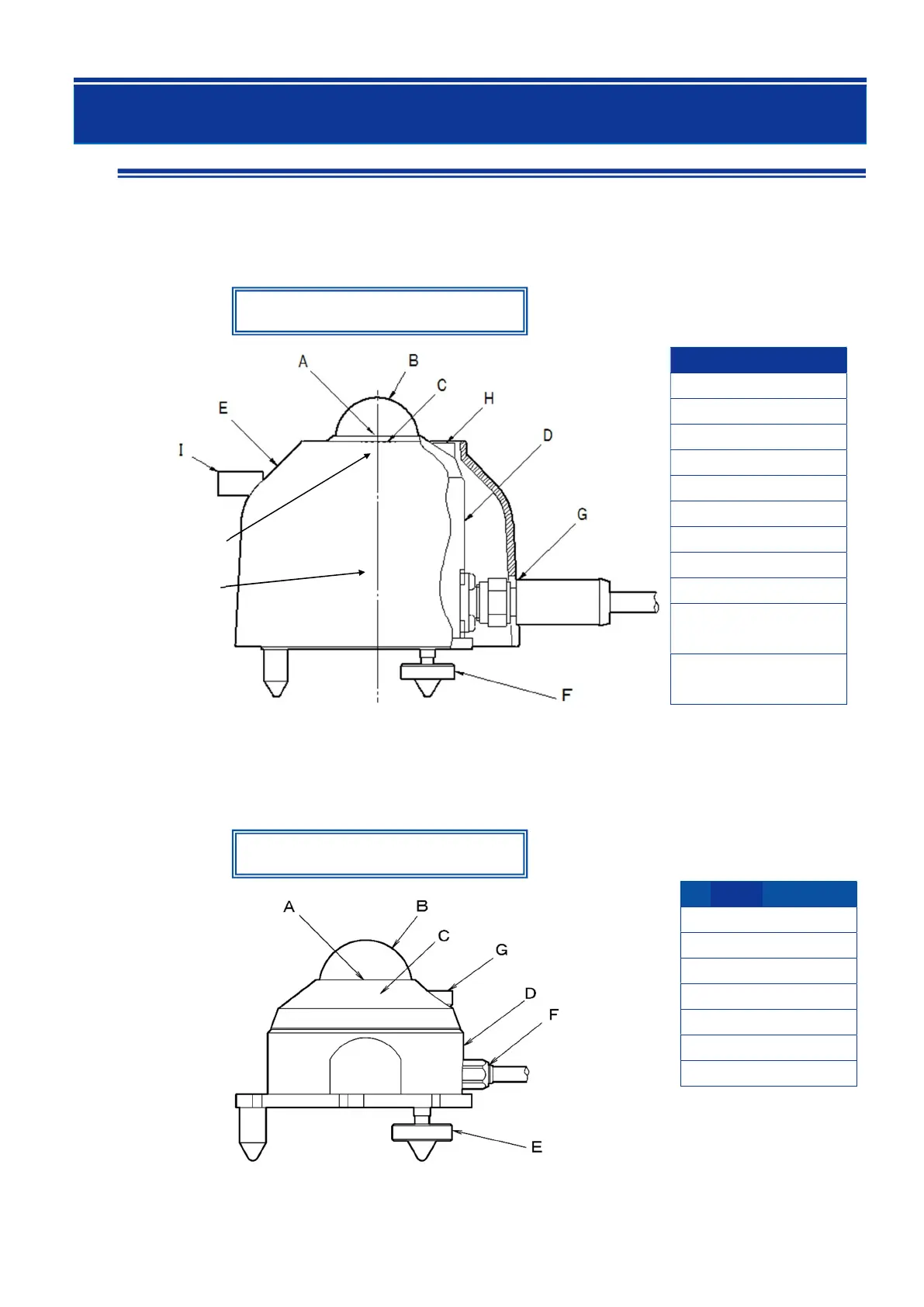

Figure 5-2. Pyranometer Parts Name [MS-80U]
Table 5-1. Parts Name
[MS-80 / MS-80S]
Table 5-2. Parts Name
[MS-80U]
*Signal converter is built-in for MS-80S.
Figure 5-1. Pyranometer Parts Name [MS-80 / 80S]
J
K
