EKO INSTRUMENTS CO., LTD. - Pyranometer MS-80/80S/80U - Instruction Manual Ver. 1
Pg. 20
1. Analog output
The MS-80 and MS-80U have an analog output for irradiance and detector temperature.
 Use a measuring device with an input impedance of 100MΩ or more. Low input
impedance may cause underestimation of the output voltage measured.
 Be sure to connect the cable shield to the frame ground of the measurement device,
otherwise noises may occur.
A. MS-80 (from S/N: S19046151, temperature sensor 3W Pt100 class A). Connect the 5 wires with corresponding
color to the input terminals of the voltmeter or data logger (figure 5-5).
[*] Always connect the shield cable to prevent signal noise.
[**] See the Appendix A-8 resistance to temperature conversion table [PT-100].
B. MS-80 (Till S/N: S19046150, temperature sensor type NTC 10kΩ). Connect the 4 wires with corresponding
color to the input terminal sof the voltmeter or data logger (figure 5-6).
[*] Always connect the shield cable to prevent signal noise.
[**] See the Appendix A-7 resistor to temperature conversion table. [NTC 10k Ω].
Brown
White
Blue
Black
Gray
Shield
+
Measurement
Device
-
Pt100 [B]
Pt100 [B]
Ω
[**]
Pt100 [A]
FG [*]

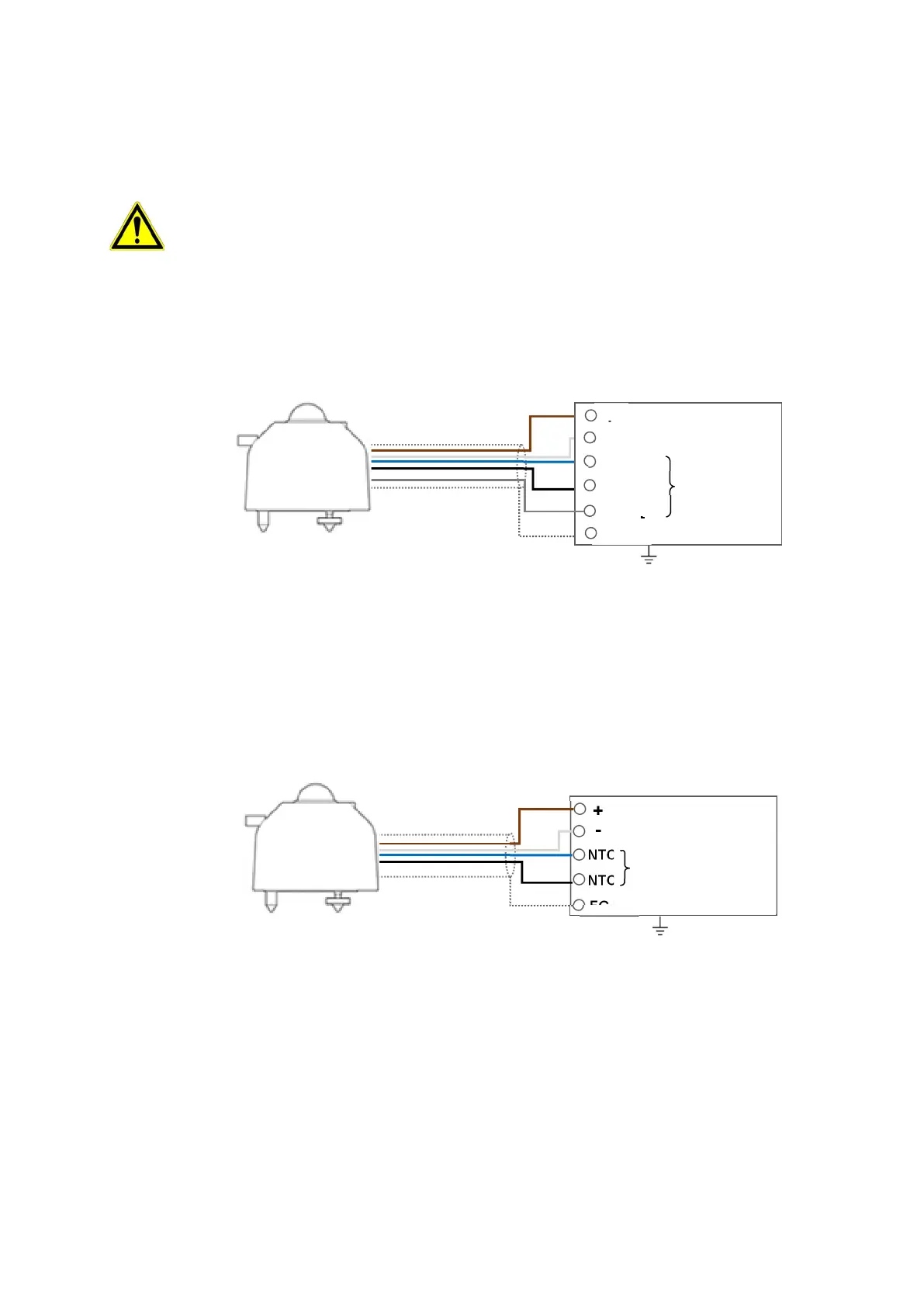

Fig. 5-5. How to connect MS-80 (from S/N: S1904615)
Fig. 5-6. How to connect MS-80 (Till S/N: S19046150)
+
Measurement
Device
-
FG [*]
NTC
NTC
Ω
[**]
Brown
White
Blue
Shield
