7- 3. Output Cabl es
See [5-2. Setup, 2. Wiring] for instruction
1. MS-80 / MS-80S
Different lengtsh (10m standard, 20m / 30m / 40m / 50m optional).
2. EKO Converter Cable （Option）
3. MS-80U
No. Line color
1. Brown
2. White
3. Blue
4. Black
5. Gray
Shield

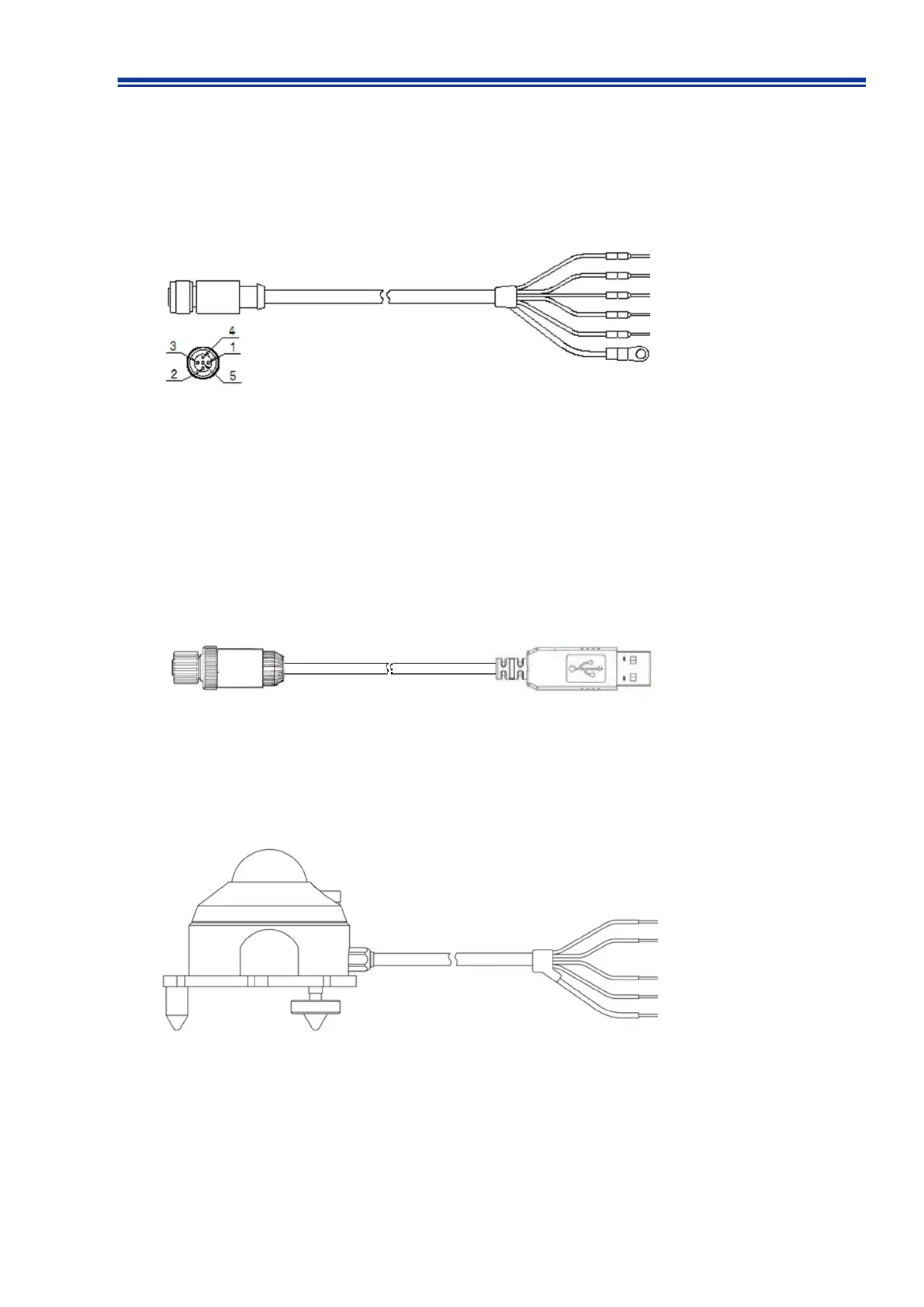

Figure 7-3. Output Cables [MS-80 / MS-80S]
No. Line color
1. Red
2. White
3. Green
4. Black
Shield
Figure 7-5. Output Cables [MS-80U]
Figure 7-4. EKO Converter cable [MS-80S]
USB
Type
-
A
