ELAC DCB41 - Television Connection Guide; Subwoofer Connection Guide

Model : DCB41
UPDATE ONLY
HDMI (ARC)
1938 N. Batavia St.
Suite K
Orange, CA, 92865
Fraunhofestrabe 16
24118 Kiel, Deutchland
SERIAL NUMBER
USB OPT SUB OUT
PHONO
ON/OFF
CAN ICES-0003(B)/NMB-003(B)
FCC ID: XXX-XXXXX
IC: XXXXX-XXXXX
Desinged by Elac
Made in China
SPEAKER OUT
120-240V~50/60Hz AC
80W
L/R
GND
OUT
SPEAKER
HDMI-ARC
Optical
Note: HDMI supports eARC and ARC inputs from most
televisions.
Your television remote control can also control, power,
mute and volume of your Debut ConneX.

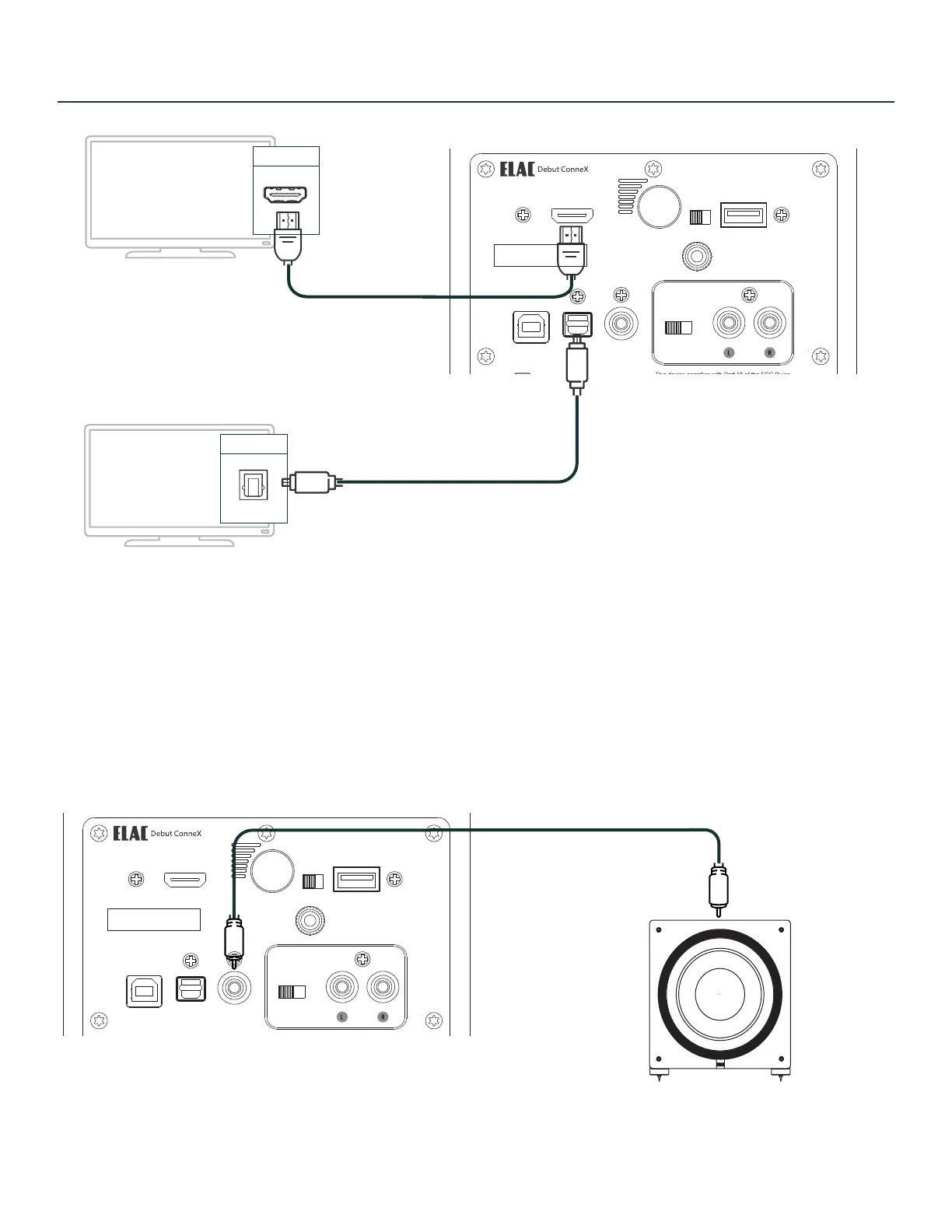

CONNECTIONS - SUBWOOFER
CONNECTIONS - TELEVISION
ELAC DEBUT ConneX DCB41 | www.elac.com | Page 6
Can be connected via
HDMI or Optical Cable
