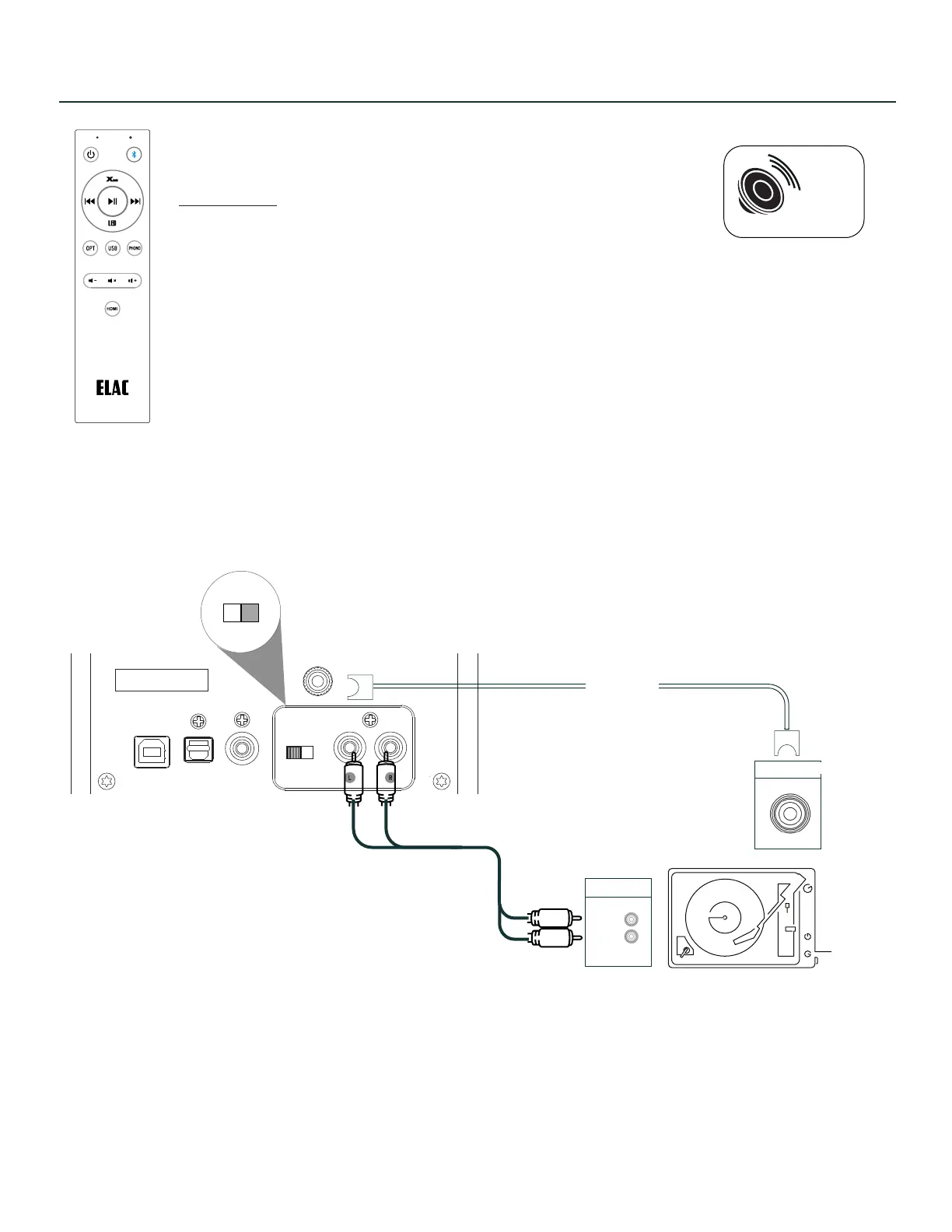

ELAC DEBUT ConneX - XBASS Feature Operation; XBASS On;Off and Settings; Turntable Connection Setup; Connecting Turntable with Pre-amp

Audio Out
R
L
Ground
Optional
Note: Some turntables have built in phono pre-amplifiers that can be disabled. Ensure the turntable pre-amplifier
is set to OFF and DCB41 is set to ON.
If you choose to use the turntable’s Phono pre-amplifier, then ensure its switch is set to ON postion and DCB41 is
set to OFF.
The Ground connection is optional. It is recommended to be used as it can lower residual noise.
CONNECTIONS - TURNTABLE
ELAC DEBUT ConneX DCB41 | www.elac.com | Page 5
Model : DCB41
UPDATE ONLY
HDMI (ARC)
1938 N. Batavia St.
Suite K
Orange, CA, 92865
Fraunhofestrabe 16
24118 Kiel, Deutchland
SERIAL NUMBER
USB OPT SUB OUT
PHONO
ON/OFF
CAN ICES-0003(B)/NMB-003(B)
FCC ID: XXX-XXXXX
IC: XXXXX-XXXXX
Desinged by Elac
Made in China
SPEAKER OUT
120-240V~50/60Hz AC
80W
L/R
GND
OUT
SPEAKER
ON/OFF
Set to ON if plugging into a turntable
XBASS
XBass is a propietary circuit to boost low frequency performace.
Turn ON/OFF
Press and hold XBass button on remote for 2 seconds :
LED display will blink once for ON
LED display will blink twice of OFF
When ON - pressing XBass will cycle XBass setting.
If connecting a subwoofer, XBass can be turned OFF completely.
XBass
