SUB Out
ELAC SUB1020 Subwoofer | www.elac.com | Page 5

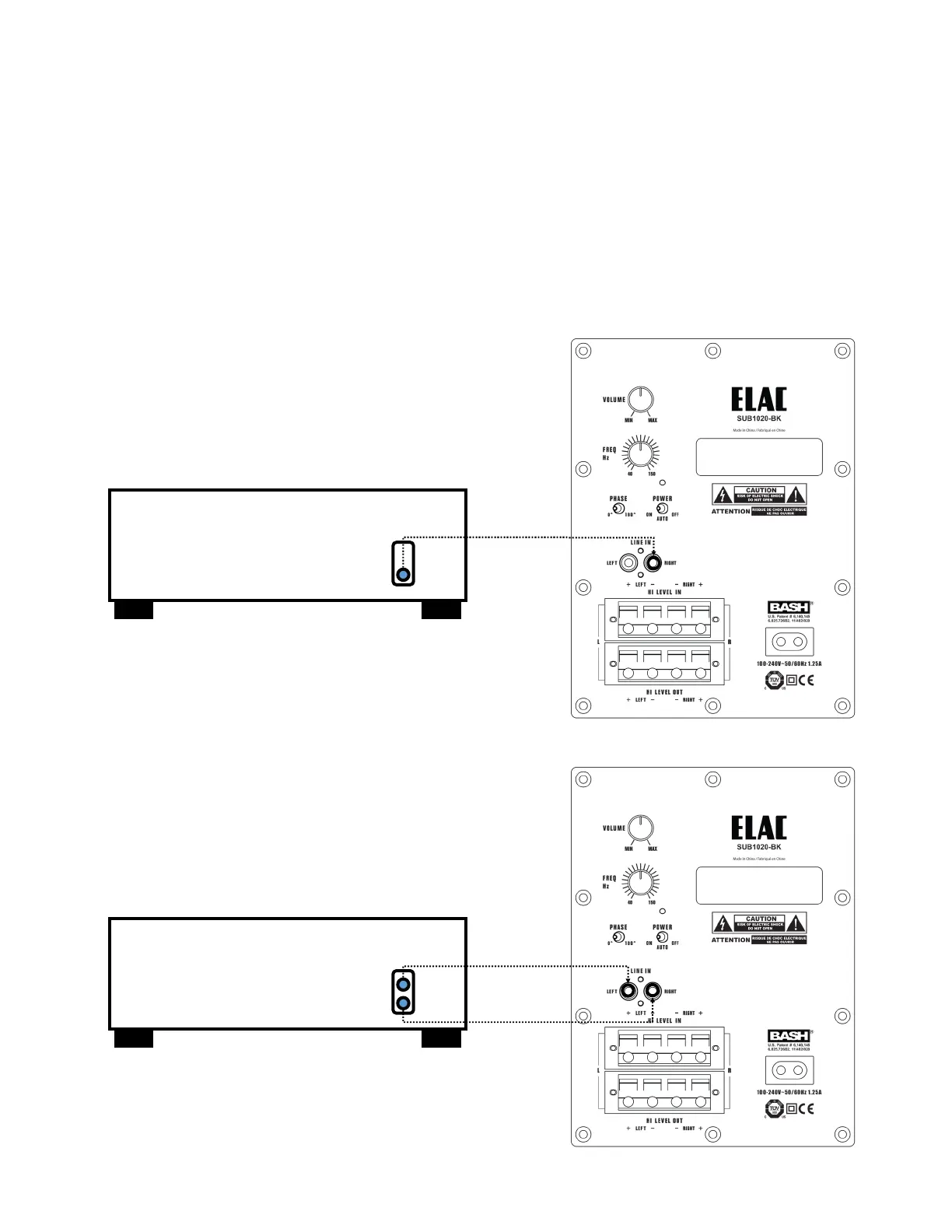

Connecting your Subwoofer
• If you are connecting the subwoofer to an AV Receiver or Pre-Amp with a dedicated subwoofer or LFE out-
put, connect an RCA cable (not supplied) from the LFE/Subwoofer output on the AV Receiver/Pre-Amp to the
Left RCA input on the subwoofer (Fig 1).
• If you are connecting the subwoofer to a stereo pre-amp or AV Receiver without a dedicated LFE/Subwoofer
output, connect a set of stereo RCA connectors from pre-outs on your pre-amp/receiver to the left and right
RCA inputs on the subwoofer. If you are using a pre-amp with only one set of pre-outs, use a splitter for each
output on the pre-amp and connect two sets of stereo RCA cables to both the amplifier and to the subwoof-
er (Fig 2).
Fig.1
Fig.2
Tape Out
To Next Page
