7. SYSTEMS AND CIRCUITS
7.1. POSITION OF SEACOCKS AND THROUGH-HULL FITTINGS
Keep the seacocks closed when not in operation to avoid the possibility of
water penetration or leakage.
When sailing, the sacocks must be kept closed.
When sailing close the water tank connection valve.

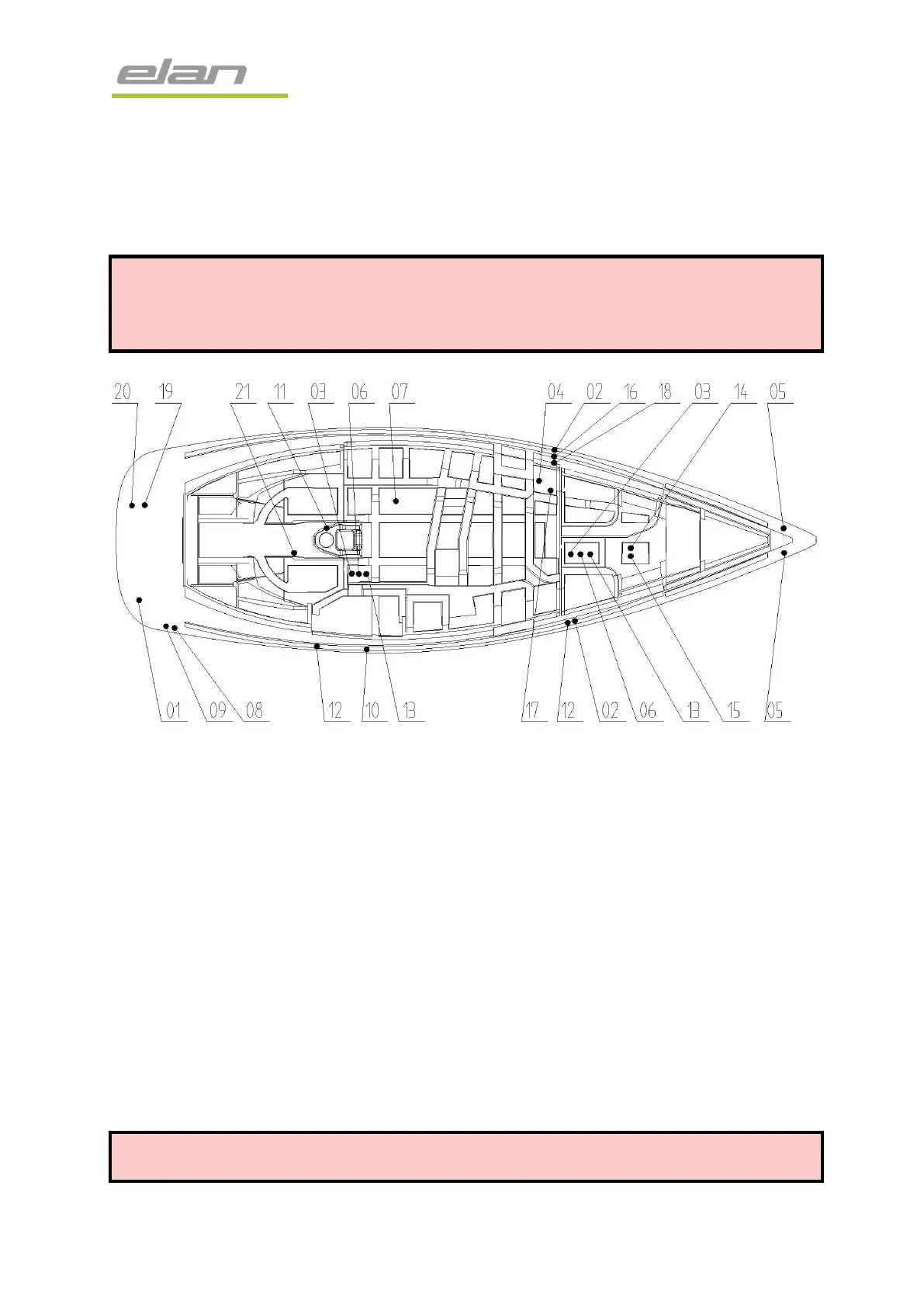

Figure 9
1. Engine exhaust outlet
2. Water tank ventilation
3. Toilet outlet / head
4. Holding tank outlet (option)
5. Anchor locker drainage
6. Head sink outlet
7. Galley sink outlet
8. Electric bilge pump outlet
9. Manual bilge pump outlet
10. Fuel tank ventilation
11. Cooling water inlet
12. Shower drain outlet
13. Toilet seawater inlet
14. Depth sounder
15. Speedometer
16. Holding tank vent (option)
17. Air-conditioner inlet (option)
18. Air-conditioner outlet (option)
19. Cockpit sink drainage (option)
20. Generator exhaust outlet (option)
21. Generator water inlet
OPERATION:
The seacock is OPEN when the lever is in line with the pipe.
The seacock is CLOSED when the lever is at right angle (90 degrees).
Keep seacocks, cockpit drains, bungs and other opening/closing devices in
the hull closed or open, as appropriate, to minimize the risk of flooding.
