Elan Impression 444 - Philippi Instrument Setup and Settings

Impression 444 – Owner's manual
32

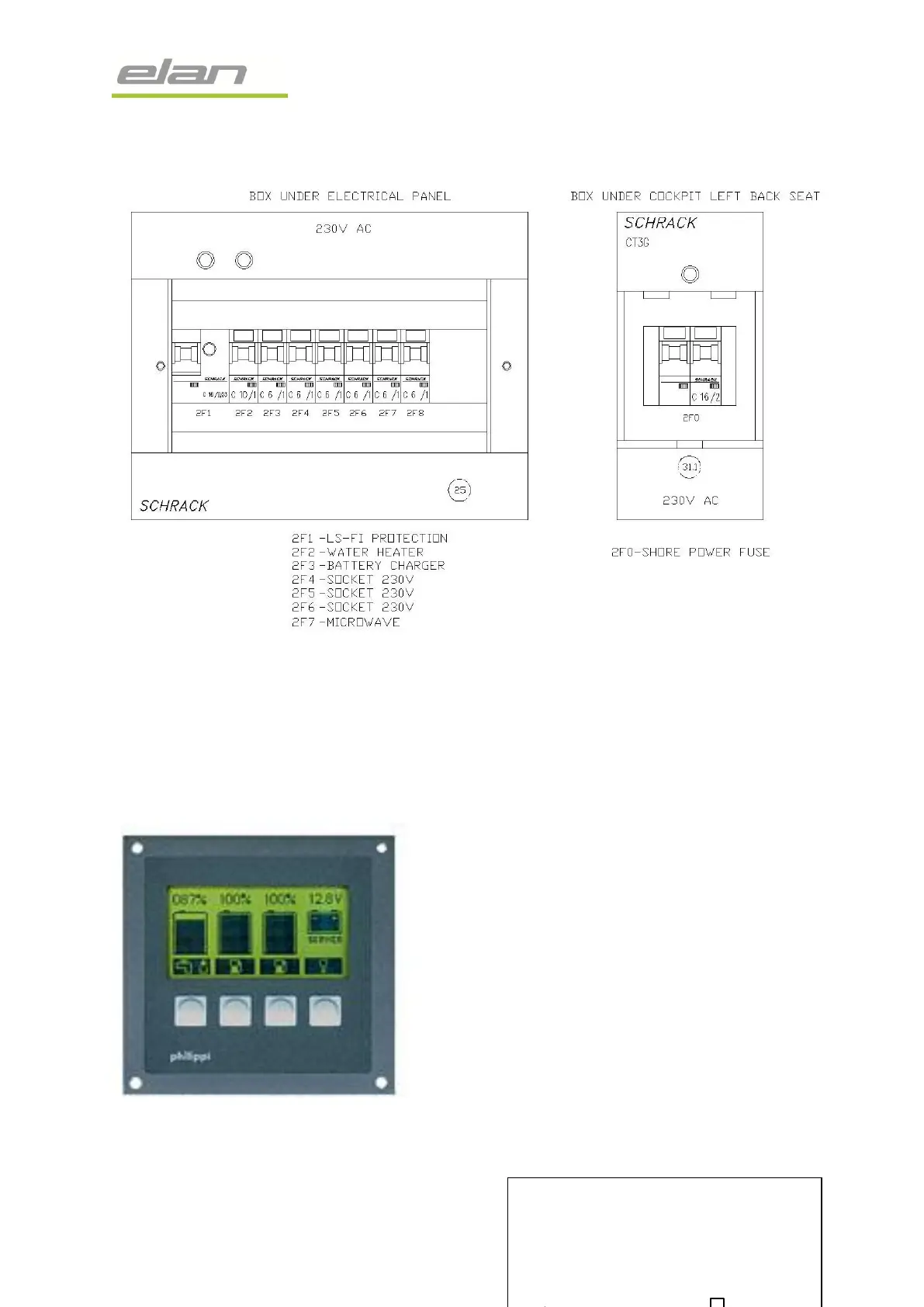

CONTROL PANEL 230V:
Figure 15
7.6.3. PHILIPPI INSTRUMENT SETUP AND SETTINGS
Display on control panel:
Technical data TCM
Connection voltage 8-30 V
Instrument dimensions 105 x 105 x 40 mm
Cut-pout to install instrument 90 x 90 mm
Type: TCM 1 TCM 2 TCM 4 TCM 4p
Number of tanks 3 3 1-4 1-4
Pouring sensor DFS 0 1 0 1
Tank sensors TGT/TGW/UTV 3 2 1-4 1-3
Measuring voltage 2 batteries 2 batteries no no
Consumption 2 mA 9 mA 2 mA 9 mA
PHILIPPI TCM 1/2/3/3p
General settings:
Key functions
Sprache
Anzeige l/% 00
Anzahl tanks 04
