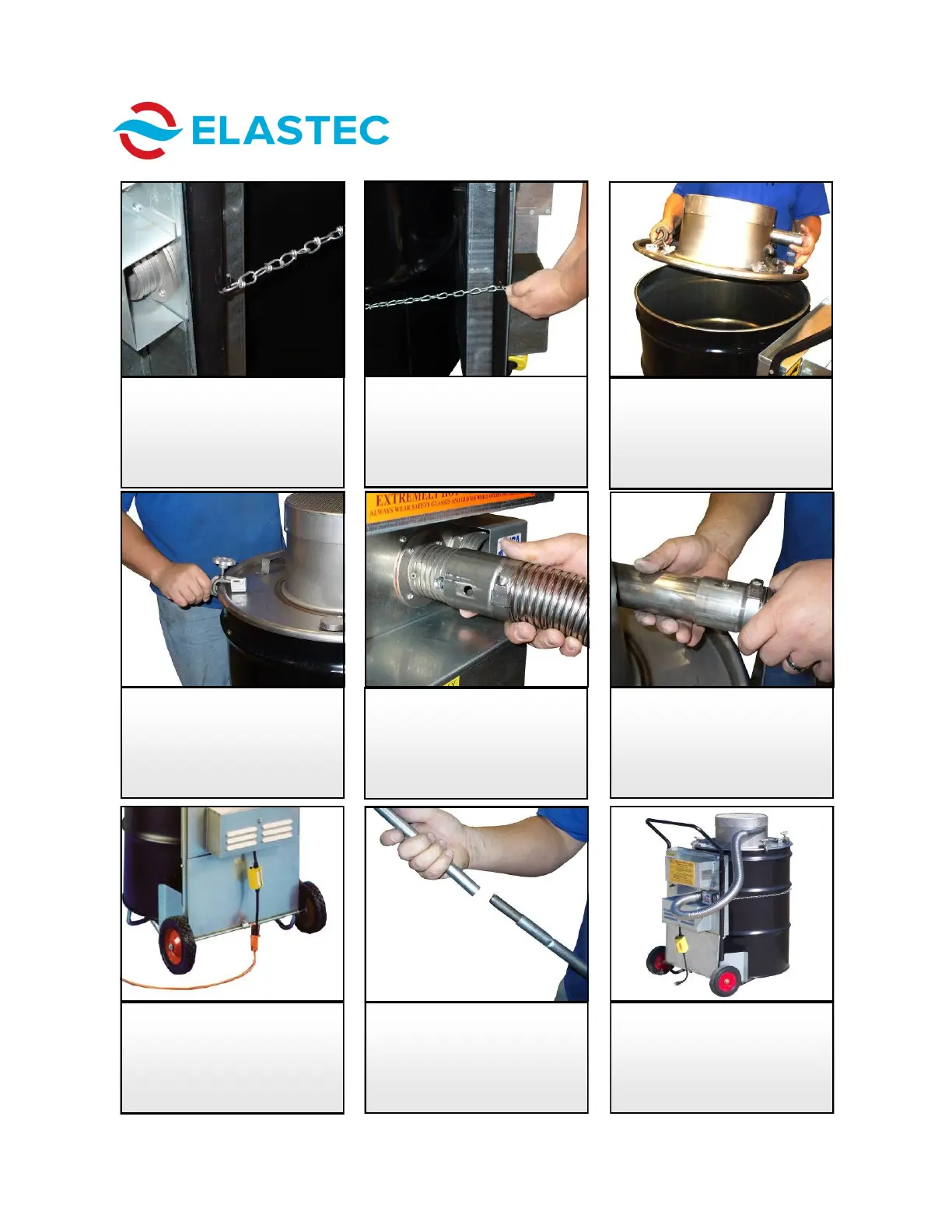

SmartAsh ASSEMBLY
30. Set drum lid on drum.
28. Attach chain to hook as
shown.
29. Wrap chain around barrel.
Pull tight to remove any
slack and attach to
second hook.
31. Rotate clamps into
position and tighten by
turning knob.
32. Slide flex hose over snap
button on 2-inch outlet on
plenum.
33. Slide flex hose over snap
button on 2-inch inlet on
drum lid.
34. Install plug in cord lock.
35. Assemble stir rod by
inserting upset end over
straight end and push
together.
36. See above for assembled
unit.
