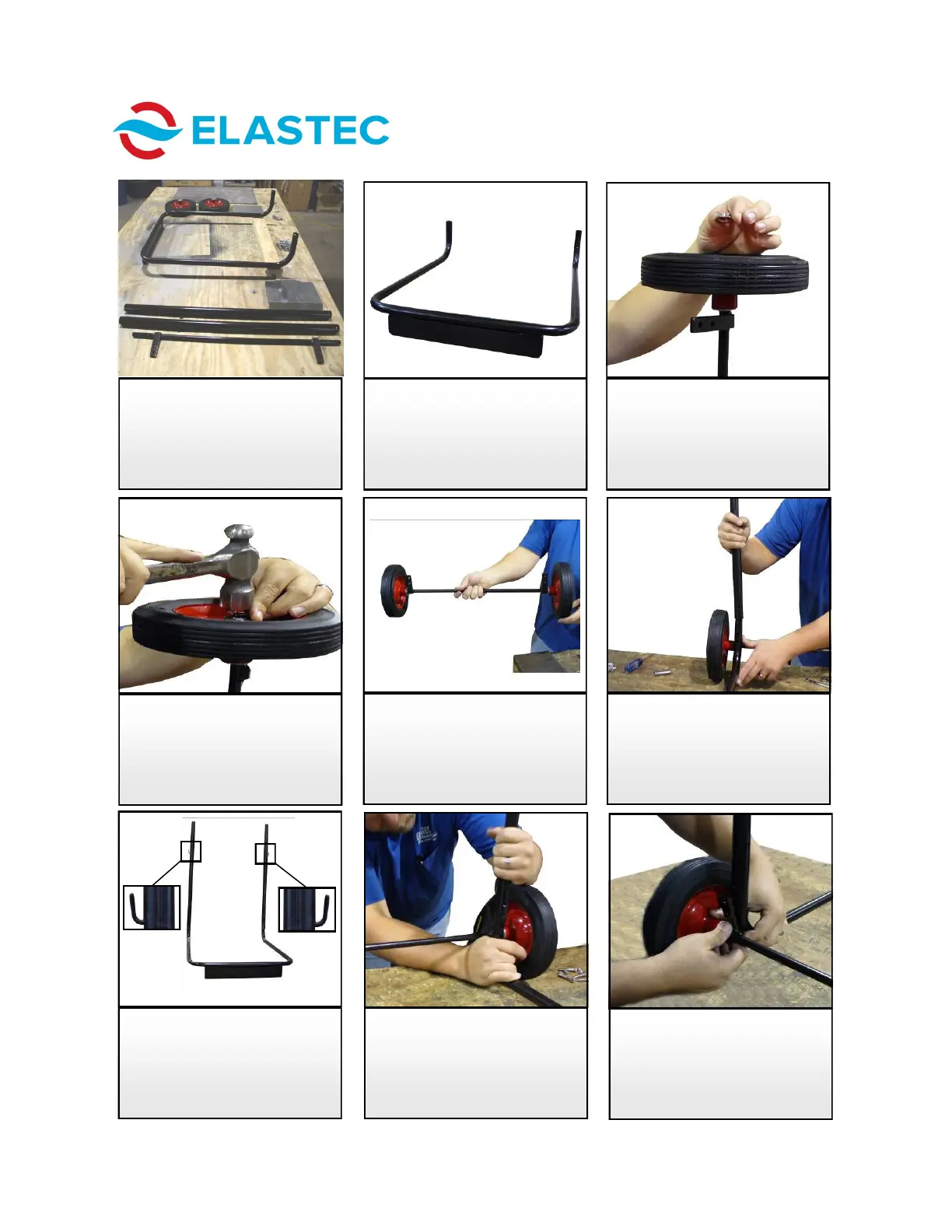

SmartAsh ASSEMBLY
4. Use hammer to drive on
push nut.
5. Repeat Steps 3 and 4 for
second wheel to complete
axle assembly.
8. Ensure that mounting holes
are lined up in lower
portion of side rail.
7. Ensure that chain hooks are
on the outside.
9. Line up axle tab mounting
holes with side rail
mounting holes.
2. Place cart base on work
surface.
3. Mount wheel and push nut
onto wheel. Wheel has
step shoulder on one side.
Ensure that shoulder is
facing in, toward axle.
6. Place axle assembly near
open side of cart base.
Ensure that axle tabs are
on the inside.
1. Open cardboard box;
remove contents. Open box
labeled “0KIT-AS010” and
bag labeled “0KIT-HA010”
and set contents nearby.
To Next Page
