SMARTASH 9 D-044 Rev 008
www.elastec.com

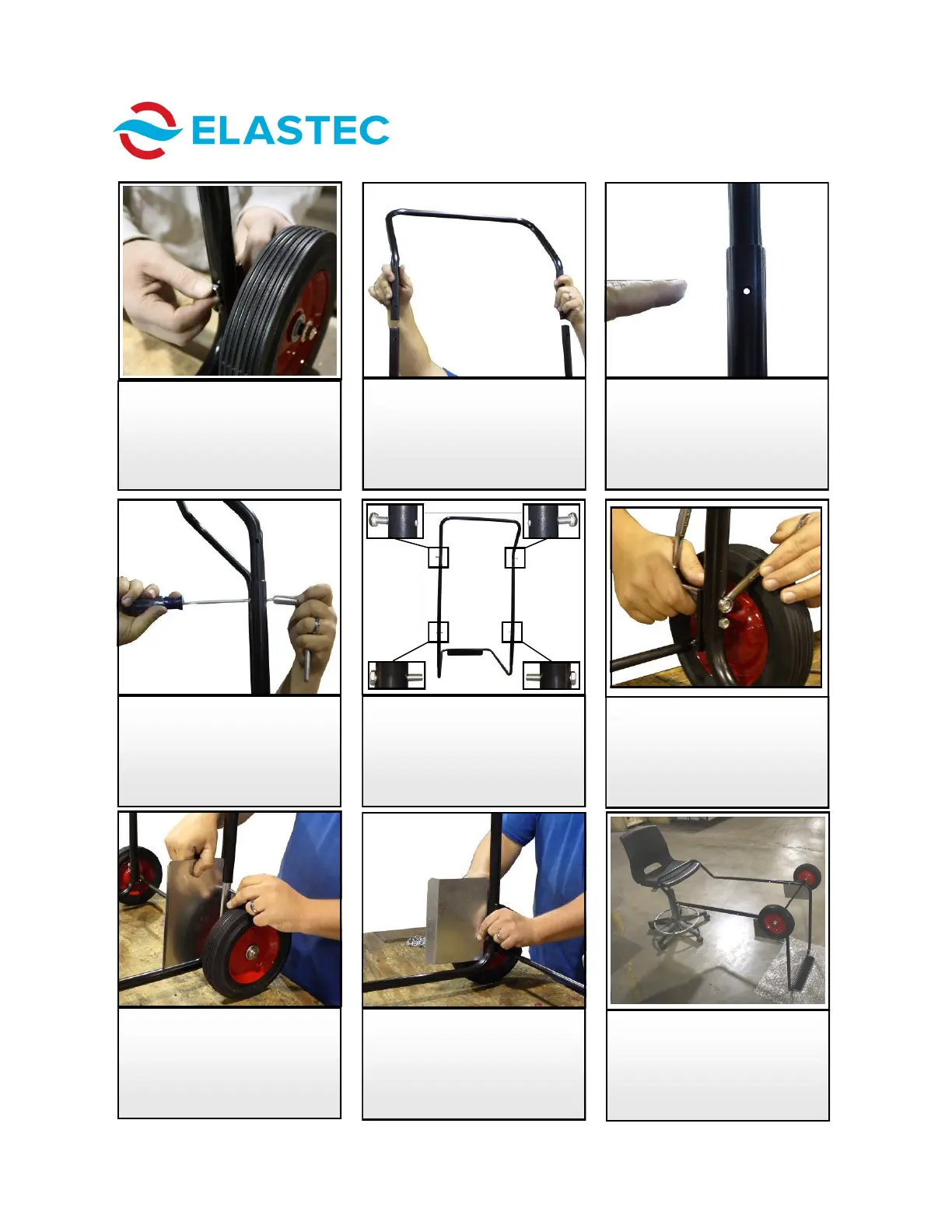

SmartAsh ASSEMBLY
16. Install fender to side rail
with 1-1/2” long screw,
using the top hole only.
Fender flare is to the
outside.
17. Repeat Step 16 for second
fender.
11.Insert cart handle into side
rails.
12. Ensure that mounting
holes are lined up in upper
portion of side rail.
13. Use 1/4” screws and nuts
to attach handle to side
rails and tighten, using
3/8” wrench or socket.
14. Install 1/4” bolts into side
rails as shown. Lower
bolts should be screwed in
all the way, upper bolts
through side rails only.
18. Position assembly in this
manner.
10. Using two 1/4” bolts on
each side, mount axle
tabs to side rails. Hand-
tighten.
15. Tighten nuts to bolts
mounting axle tabs to side
rails with 7/16” wrench or
socket.
To Next Page
