2.3.7 DO (Digital Output)

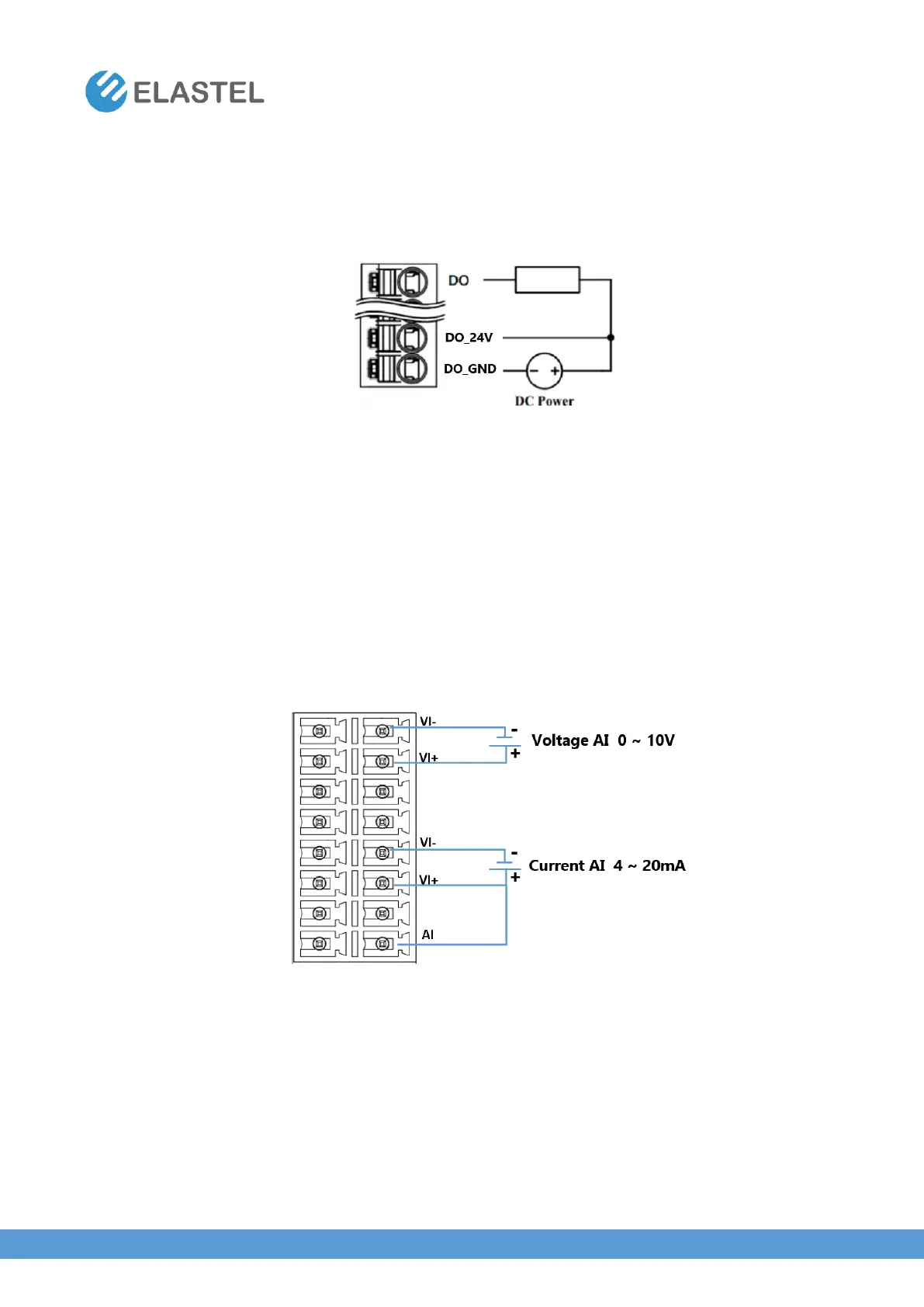

EG500 provide 6x DO to control the external slave devices. With an overvoltage protection
circuit that DO 24V wiring, it could filter the overvoltage to avoid destroying device itself.
The external DC power voltage should be under 60V. Check the above application wiring for
reference.
2.3.8 AI (Analog input)
EG500 provide 3x Analog input ports with two types of analog signal, 4-20mA current input,
or 0-10VDC voltage input.
Check the above application wiring for reference.
