Industrial Edge Computing Gateway EG500
ELASTEL TECHNOLOGY CO., LTD.
2.3.12 LED indicator

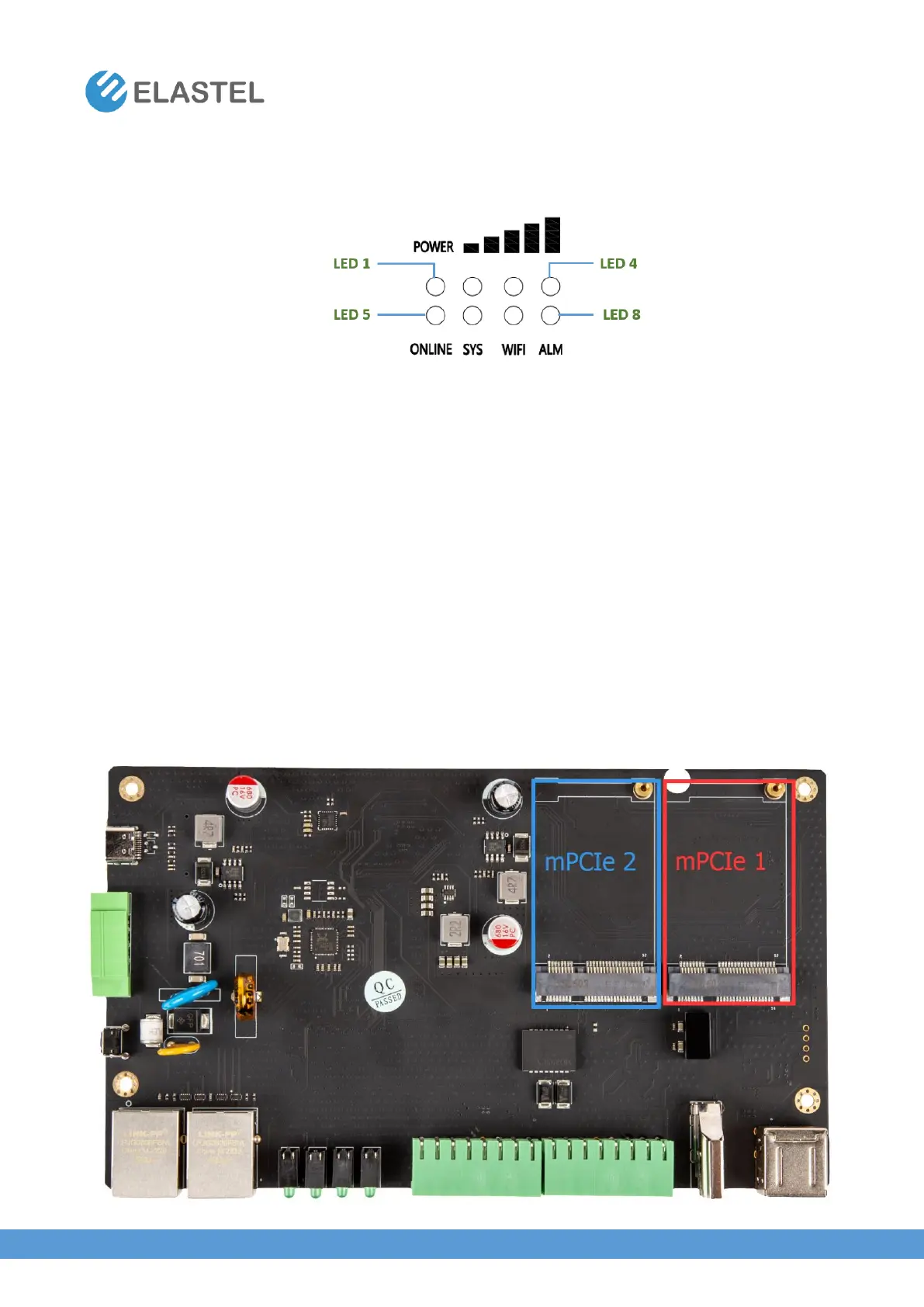

EG500 extend 8 LED indicators for apparent status indication as printed label shown,
LED1 is defined as Power indicator which on once power on.
LED2 ~LED4 are defined as cellular signal strength.
LED5 as ONLINE which indicate the network online status.
LED6 for system status.
LED7 for WiFi status.
LED8 for Alarm in case any system error or resetting.
2.4 Carrier Board Connectors
The EG500 carrier board provides some reserved interfaces for user mount necessary modules as
needed, it contains dual mini-PCIe, WiFi HaLow module SX-NEWAH, and Raspberry Pi CM4 socket.
