Elba C 96 DF - Removing the Oven Door

17

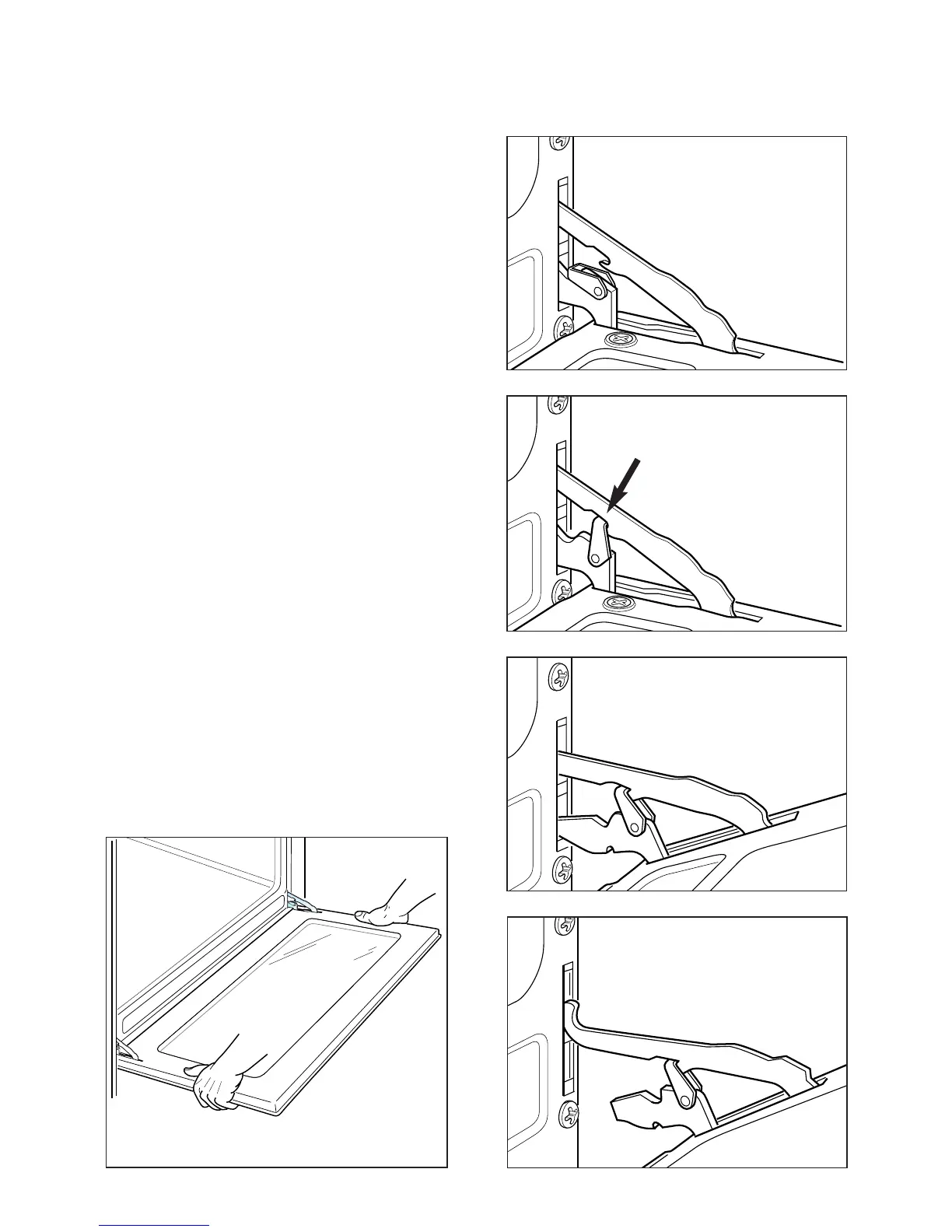

The oven door can easily be removed as
follows:
– Open the door to the full extent (fig.
6.6A).
– Attach the retaining rings to the hooks
on the left and right hinges (fig. 6.6B).
– Hold the door as shown in fig. 6.6.
– Gently close the door and withdraw the
lower hinge pins from their location
(fig. 6.6C).
– Withdraw the upper hinge pins from
their location (fig. 6.6D).
– Rest the door on a soft surface.
– To replace the door, repeat the above
steps in reverse order.
Fig. 6.6D
Fig. 6.6C
Fig. 6.6B
Fig. 6.6A
REMOVING THE OVEN DOOR
Fig. 6.6
