CONVERSION TO LPG
1 - Injectors replacement of top burners
The injectors can be obtained from the “Service Centre”.
To replace the injectors it is necessary to lift the hobtop and proceed as follows:
– Remove pan-supports and burners from the hobtop.

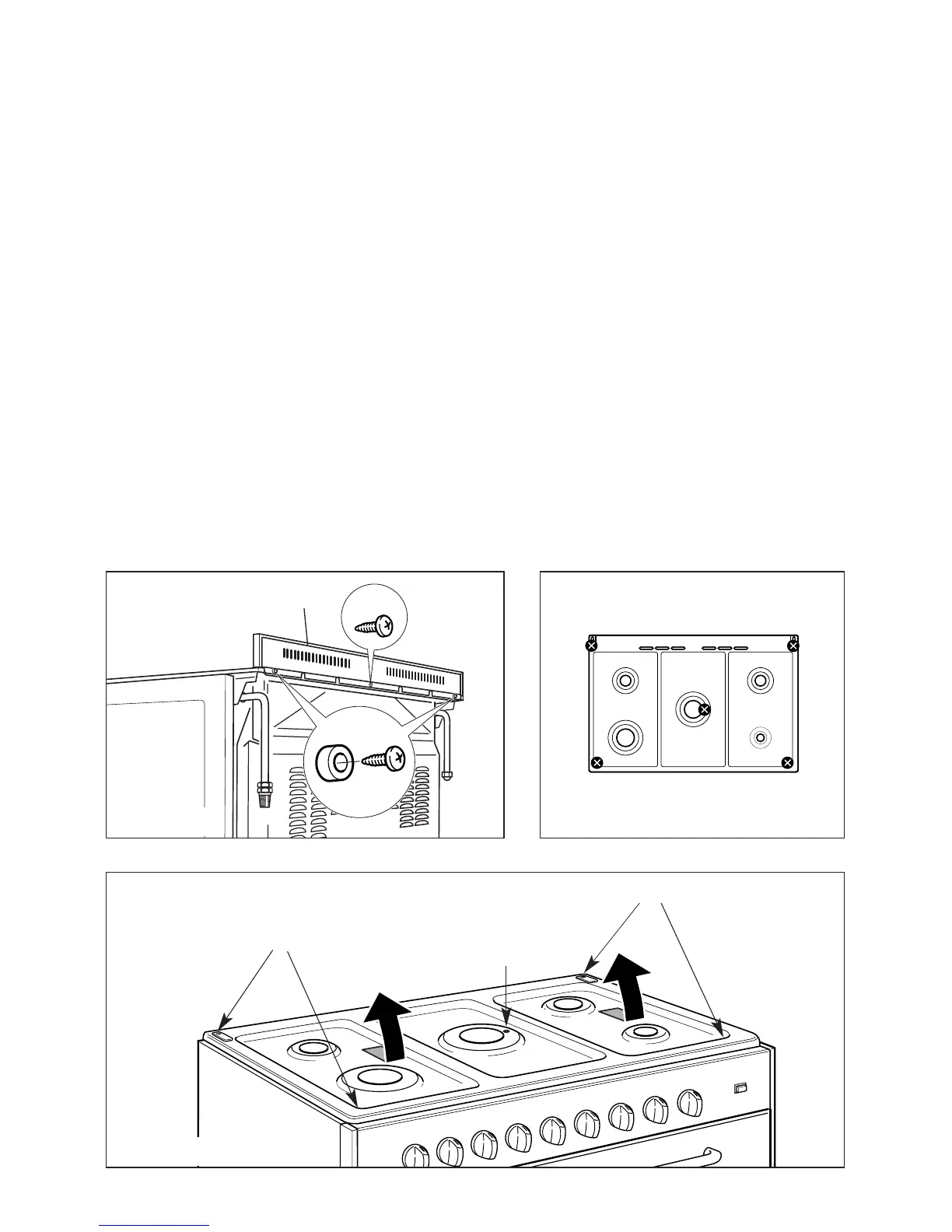

– Remove the backguard “E” by unscrew the central screw “B” and the two side screws
“A” (fig. 8.4a).
– Unscrew the 4 screws “C” and the central screw “D” (figs. 8.4b - 8.4c).
– Pull forwards the hobtop to release it, then lift following arrow “F” (fig. 8.4c)
– Hold the hobtop open by a support.
– Fully raise the adjusting air tube “K” (fig. 8.5) in order to easily reach the injector.
– By an angle 7 spanner, remove the injector from its housing and replace it by the prop-
er one according to the kind of gas (see following tables - page 28).
Each injector can be identified by the engraving of the hole diameter expressed in hun-
dredths of a millimetre.
C
C
D
F
F
Fig. 8.4c
B
A
E
Fig. 8.4a
Fig. 8.4b
D
C
C
C
C
