MODELS WITH REMOVABLE INNER
AND MIDDLE PANES OF GLASS
(SOME MODELS ONLY)
The oven door is fitted with no. 3 panes:
– no. 1 outside;
– no. 1 inner;
– no. 1 in the middle.
To clean all panes on both sides it is nec-
essary to remove the inner and the middle
panes as follows:
REMOVING THE MIDDLE AND INNER
PANES OF GLASS:

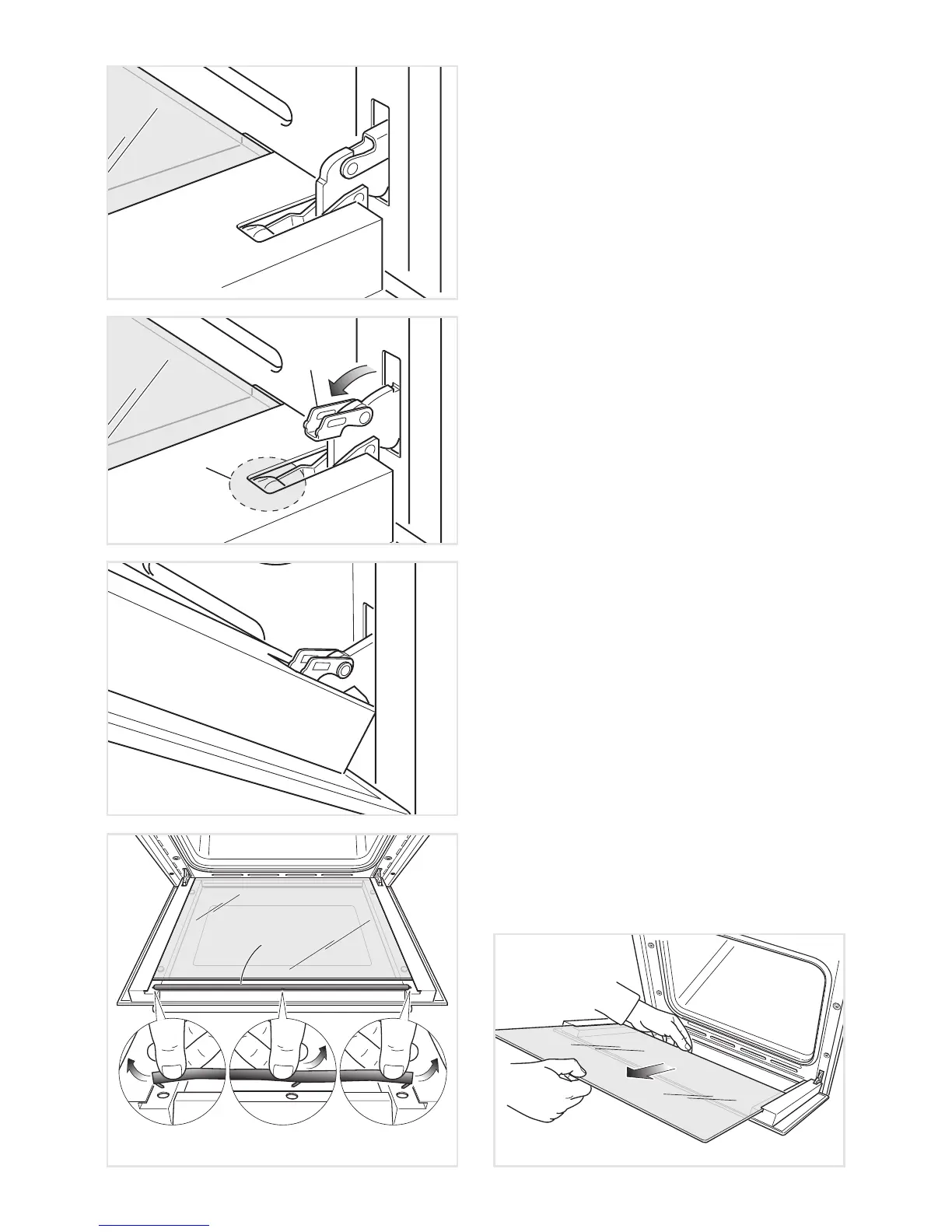

1. Lock the door open:
• Fully open the oven door (g. 2.27).
• Fully open the lever “A” on the left and
right hinges. (g. 2.28).
• Gently close the door (g. 2.29) until
the left and right hinge levers “A” are
hooked to part “B” of the door (g.
2.28).
2. Remove the inner pane:
• Remove the seal “G” by unhooking the
no. 3 xing hooks (g. 2.30).
• Gently pull out the inner pane of glass
(g. 2.31).
• Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
B
A
Fig. 2.29
Fig. 2.28
Fig. 2.27
G
Fig. 2.30
Fig. 2.31
