REPLACING THE MIDDLE AND INNER
PANES OF GLASS:
1. Make sure the door is locked open
(see fig. 2.29).
2. Replace the middle pane:
• Check that the four rubber pads are in
place (“M” in g. 2.35).
• Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.

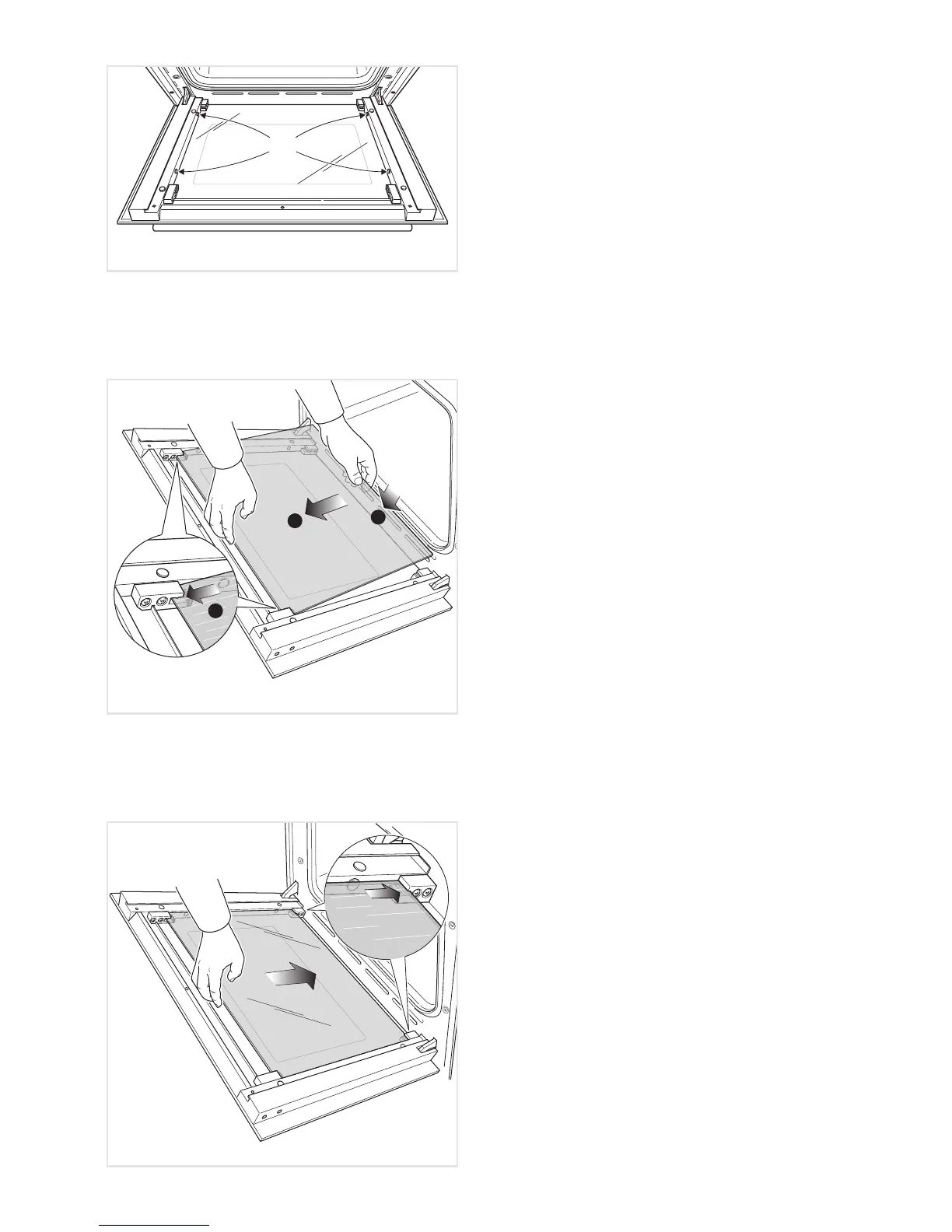

• Gently insert the top edge of the
pane into the top clamps (arrow 1 in
g. 2.36), then lower the pane and
insert the bottom edge into the bottom
clamps (arrow 2 in g. 2.36); and then
slide the pane into position (g. 2.37).
