Elba ELIO E93 MF - FIXING THE OVEN

10
F IX ING TH E O V EN

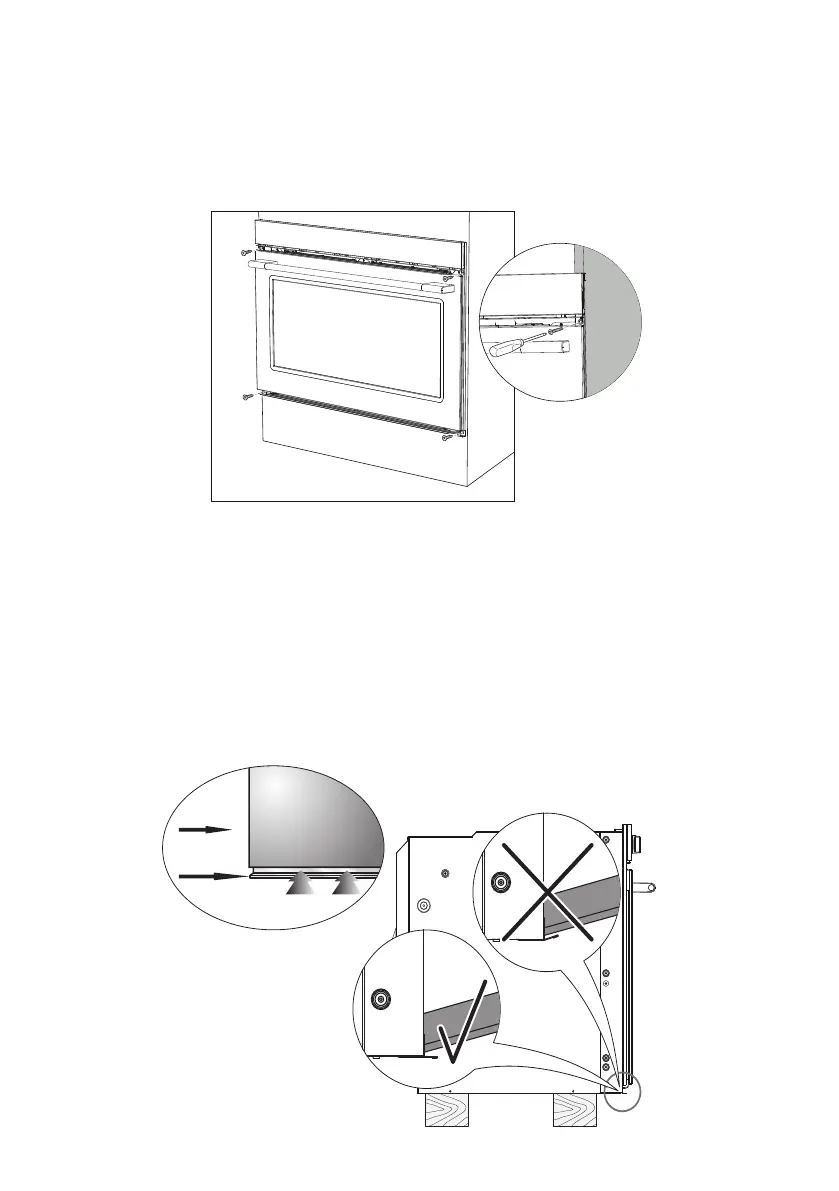

Introduce the oven into the furniture opening and x it with 4 screws (not supplied) as gure
1.2. It is essential that the oven rests on a surface which will support its weight, as the
screw xing is only complementary.
Adjust the hinges of furniture doors adjacent to the oven to allow a 4-5 mm gap between
the furniture door and the oven frame.
IMP O R TANT:
To a v o i d d a m a g e t o t h e l o w e r t r i m p l e a s e n o t e t h e f o l l o w i n g i n s t r u c t i o n s .
The lower trim is designed to allow for good air circulation and the correct opening of the
oven door.
To ensure the trim is not damaged due to the appliance being placed on the oor, the
appliance should be suitably supported as in illustration here below.
After installation the appliance door should be slowly opened to ensure no damage has
occurred.
No r e s p o n s i b i l i t y f o r l o w e r t r i m d a m a g e w i l l b e a c c e p t e d i f t h e s e i n s t r u c t i o n s h a v e
n o t b e e n f o l l o w e d .
Fig. 1.3
Oven
door
Lower
trim
Air ow
Fig. 1.2
