48
Fig. 4.3
TELES C O P IC S LIDING S H ELF S UP P O R TS ( S UP P LIED W ITH S O ME MO DELS O NLY)
The telescopic sliding shelf supports make it safer and easier to insert and remove the
oven shelves and trays. They stop when they are pulled out to the maximum position.
Important! When tting the sliding shelf supports, make sure that you t:
• The slides to the top wire of a rack. They do not t on the lower wire.
• The slides so that they run out towards the oven door.
• Both sides of each pair of shelf slides.
• Both sides on the same level.
To x the sliding shelf supports onto the side racks:
• Screw the side racks onto the oven wall (g. 9.1).
• Fit the sliding shelf supports onto the top wire of a rack and press (g. 9.4a). You will
hear a click as the safety locks clip over the wire.
IMP O R TANT NO TE: W h e n c o o k i n g w i t h t h e r o t i s s e r i e DO NO T p o s i t i o n t h e g r i l l t r a y
o n t h e s l i d i n g s h e l f s u p p o r t s .
To remove the telescopic sliding shelf supports:
• Remove the side racks by unscrewing the xing screws (g. 9.1).
• Lay down the sliding shelf support and side racks, with the telescopic sliding shelf
support underneath.
• Find the safety locks. These are the tabs that clip over the wire of the side rack (arrow
“1 ” in g. 9.4b).
• Pull the safety locks away from the wire to release the wire (arrow “2 ” in g. 9.4b).
Cleaning the sliding shelf supports:
• Wipe the supports with a damp cloth and a mild detergent only.
• Do not wash them in the dishwasher, immerse them in soapy water, or use oven
cleaner on them.
1
2
1

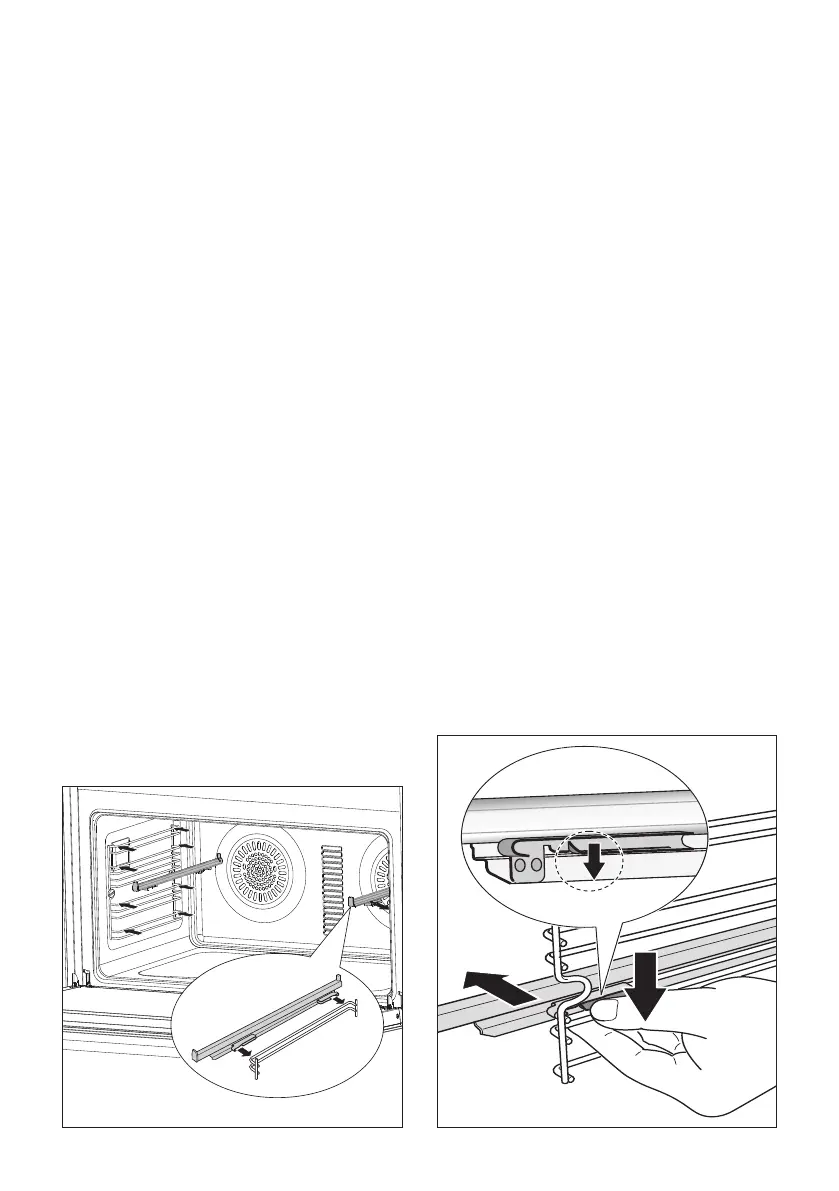

Fig. 9.4a Fig. 9.4b
