3

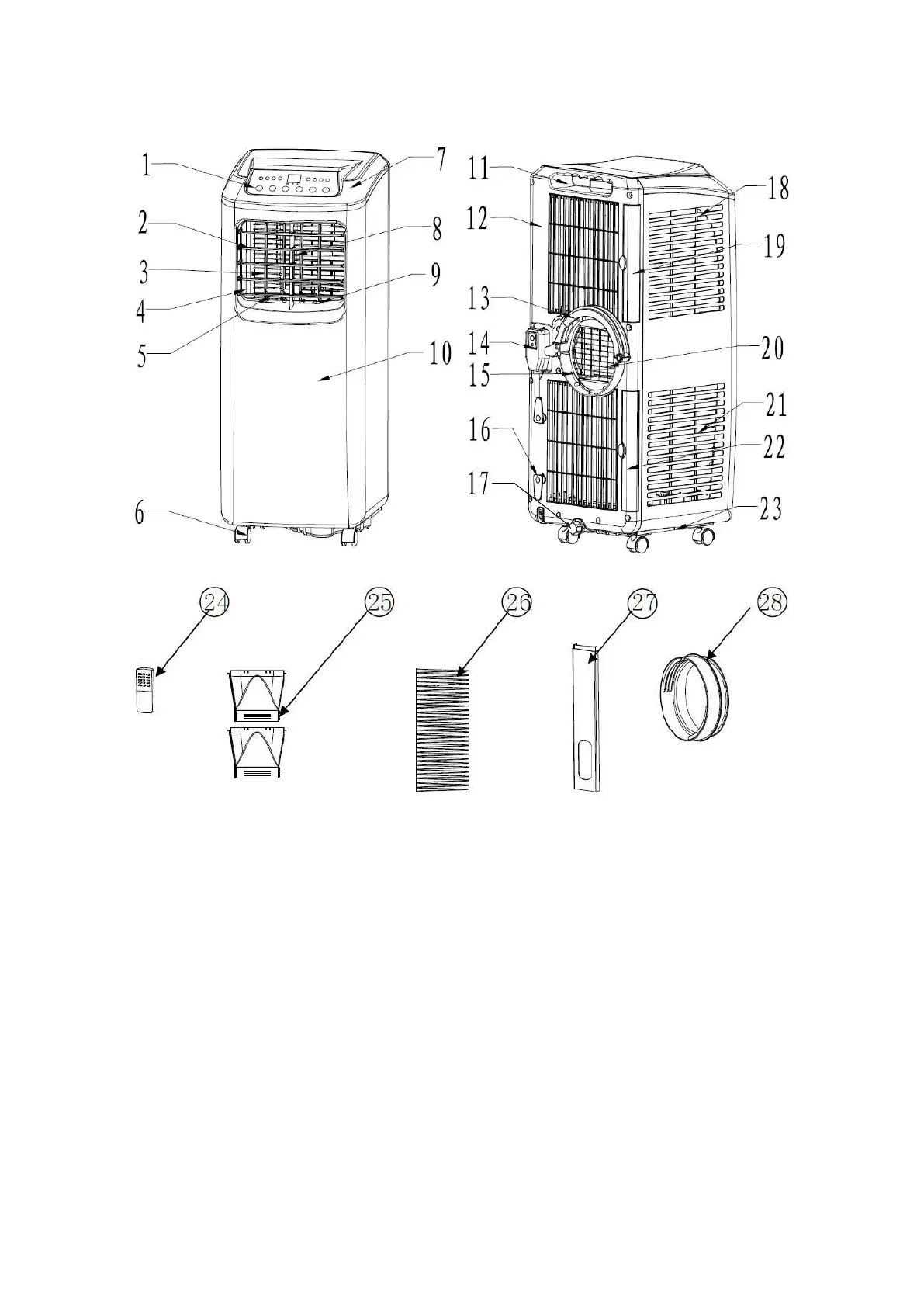

PRODUCT DESCRIPTION
1. Control panel 15. Air outlet
2. Horizontal louver 16. Wire-winding post
3. Vertical louver 17. Drain cap
4. Air outlet frame 18. Evaporator filter mesh
5. Vertical louver lever 19. Evaporator filter frame
6. Caster 20. Radiating fine mesh
7. Top panel 21. Condenser filter mesh
8. Horizontal louver lever 22. Condenser filter frame
9. Vertical louver 23. Base plate
10. Front panel 24. Remote control
11. Handle 25. Circular connector
12. Back panel 26. Ex
haust hose
13. C shape buckle of the heat exhaust 27. Window sealing plate
14. Power cord 28. Exhaust hose connector
