Installing the Window Sealing Plate

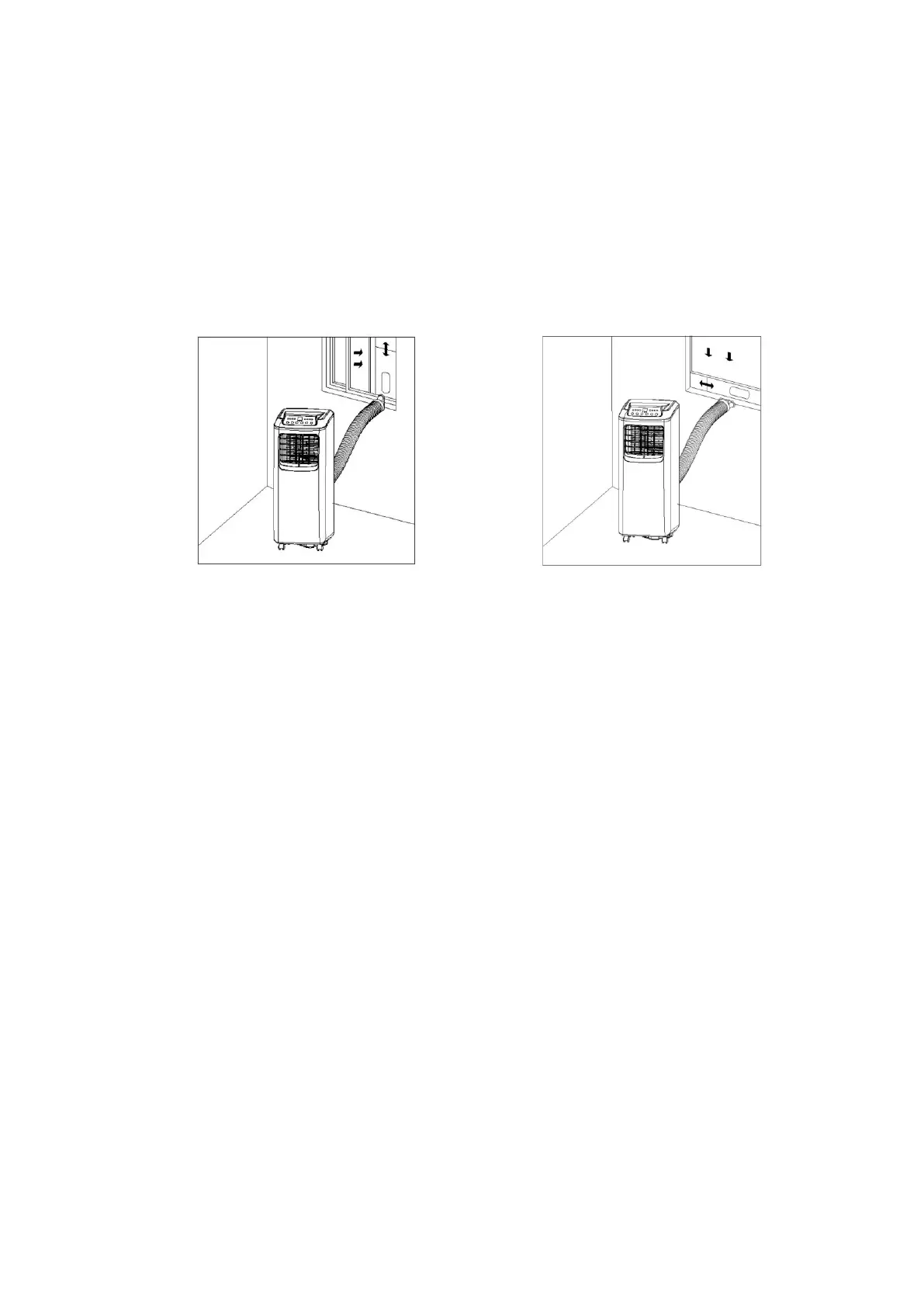

Half open the window and mount the window sealing plate onto the window, either
vertically or horizontally.
Adjust the opening width of the window so that the window can match with the sealing
plate properly. The length of the sealing plate is also adjustable.
Fasten the window sealing plate assembly with screw.
Insert the ducting circular connector onto the elliptical hole on the window sealing plate.
The exhaust hose must not be bent and shall be less than 45º flexure.
The exhaust hose is design to fit the appliance with the length of 280mm to 1500mm.
Do not use prolonged exhaust hose or replace with other different hoses as it may affect
the performance of the appliance. The appliance may overheat if the exhaust hose is
obstructed.
