Elba PXDO 60 - Dismantling the Door; Door Assembly

18

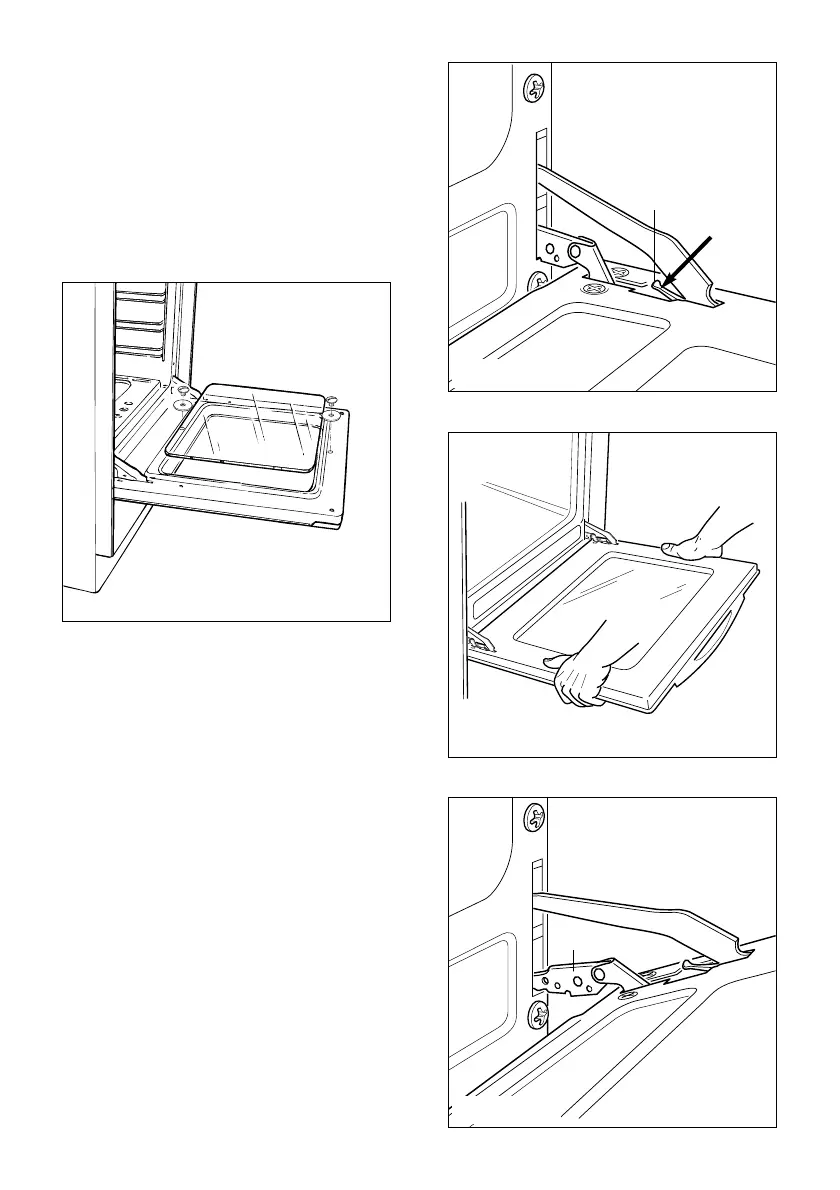

REMOVAL OF THE INNER GLASS
DOOR PANEL
The inner glass door panel can easily be
removed for cleaning by unscrewing the
two screws (fig. 12.4).
During re-assembly, ensure that the
inner glass is correctly aligned and do
not over tighten the screws.
L
H
DISMANTLING THE DOOR
Please operate as follows:
– Open the door completely.
– Push down the lever “L” and, keeping
it in this position, slowly close the
door in order to block the hinge.
– Grip the door (as indicated in fig.
12.6) and, while closing it, release the
two hinges as shown in fig. 12.7.
DOOR ASSEMBLY
– Grip the door with your hands placed
near the hinges and raise the levers
“H” with your forefingers (fig. 12.7)
– Insert the hinges in their position until
levers “H” are hooked.
– Open the door completely to obtain
the release of levers “L”.
Fig. 12.5
Fig. 12.6
Fig. 12.7
Fig. 12.4
