Elba PXDO 60 - Page 7

7

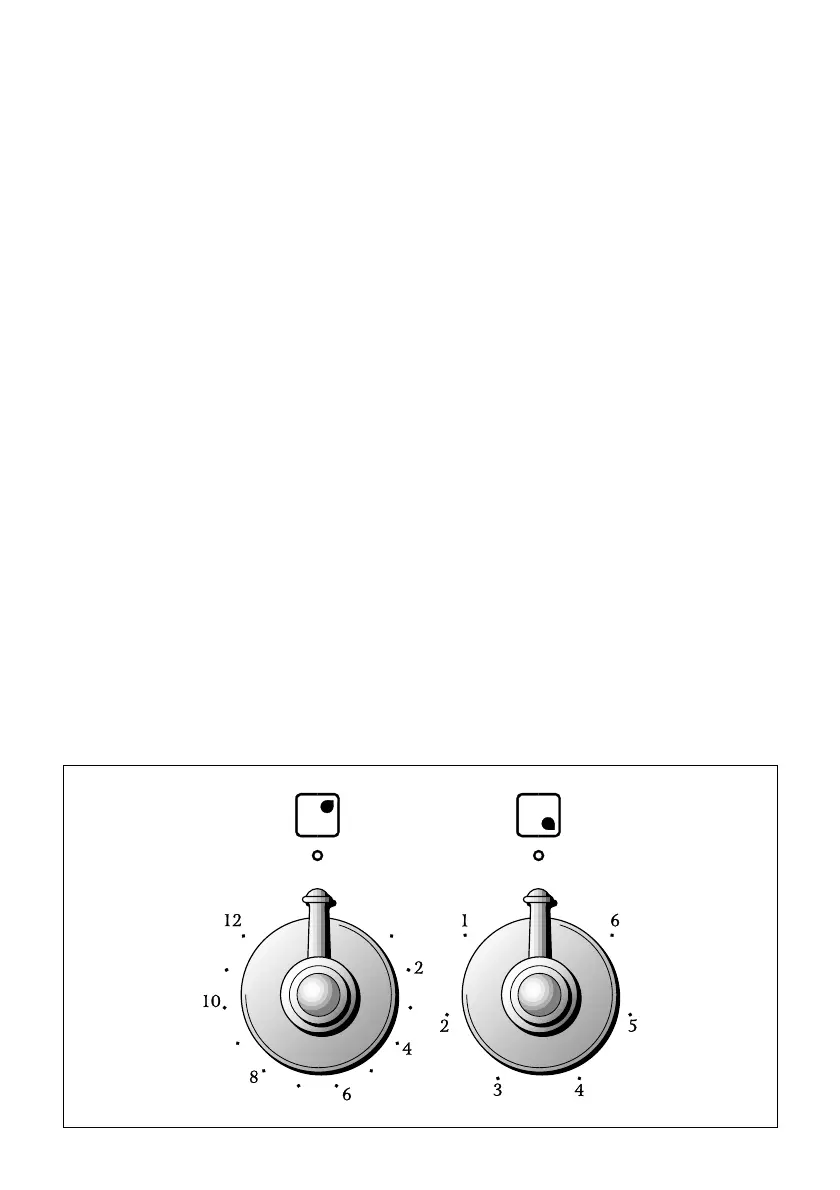

Fig. 3.2 Fig. 3.3
HALOGEN HOTPLATE CONTROL
KNOB
The halogen hotplate is controlled by a
energy regulator switch (fig. 3.1).
The heat power of the halogen hotplate
can be adjusted within steps from “0” to
its max “12”.
RADIANT HOTPLATE CONTROL
KNOB
The radiant hotplate is controlled by a 6-
position control switch (fig. 3.3).
