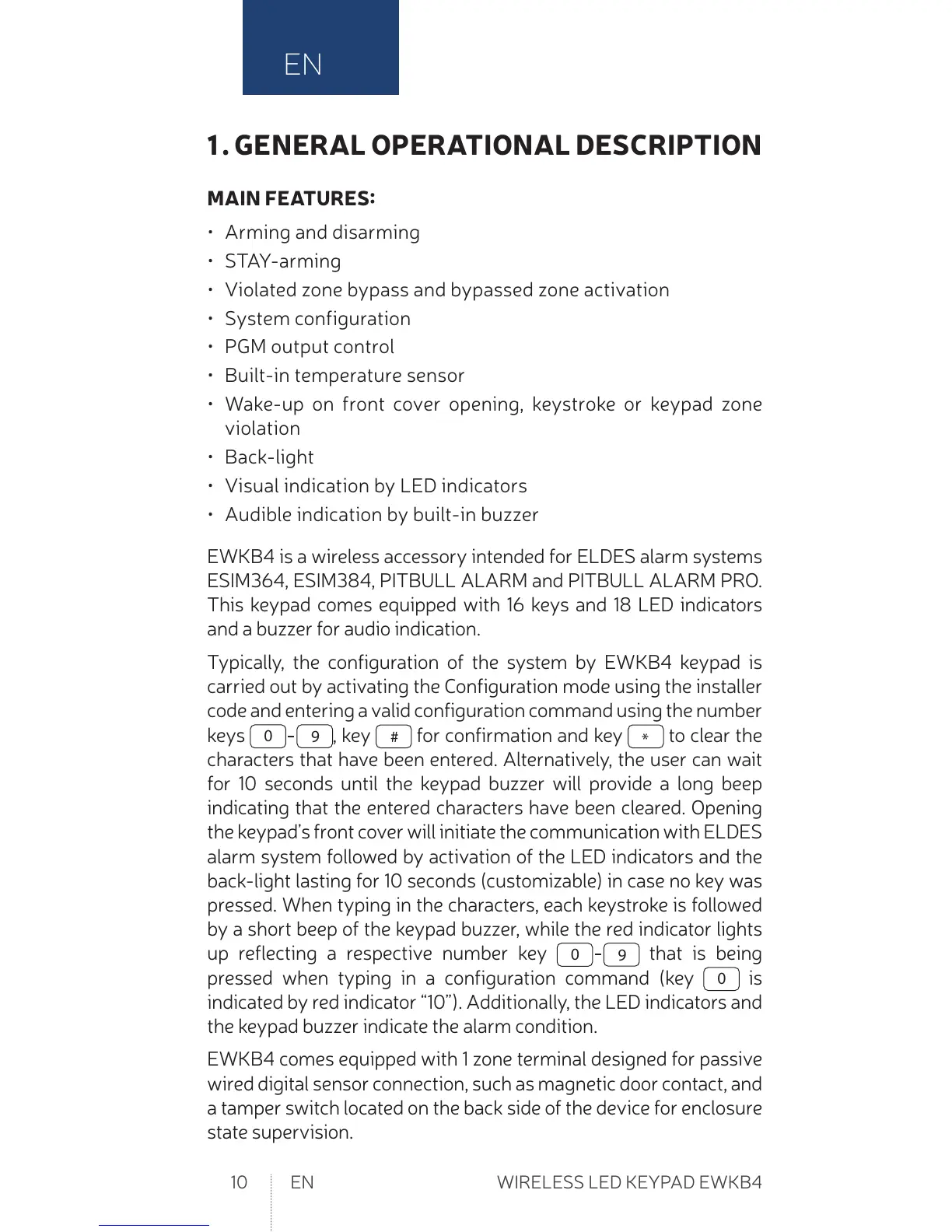

1 . GENERAL OPERATIONAL DESCRIPTION
MAIN FEATURES
• Arming and disarming
• STAY-arming
• Violated zone bypass and bypassed zone acivaion
• System coniguraion
• PGM output control
• Built-in temperature sensor
• Wake-up on front cover opening, keystroke or keypad zone
violaion
• Back-light
• Visual indicaion by LED indicators
• Audible indicaion by built-in buzzer
EWKB4 is a wireless accessory intended for ELDES alarm systems
ESIM364, ESIM384, PITBULL ALARM and PITBULL ALARM PRO.
This keypad comes equipped with 16 keys and 18 LED indicators
and a buzzer for audio indicaion.
Typically, the coniguraion of the system by EWKB4 keypad is
carried out by acivaing the Coniguraion mode using the installer
code and entering a valid coniguraion command using the number
keys
0
9
, key for conirmaion and key
*
to clear the
characters that have been entered. Alternaively, the user can wait
for 10 seconds unil the keypad buzzer will provide a long beep
indicaing that the entered characters have been cleared. Opening
the keypad’s front cover will iniiate the communicaion with ELDES
alarm system followed by acivaion of the LED indicators and the
back-light lasing for 10 seconds (customizable) in case no key was
pressed. When typing in the characters, each keystroke is followed
by a short beep of the keypad buzzer, while the red indicator lights
up relecing a respecive number key
0
9
that is being
pressed when typing in a coniguraion command (key
0
is
indicated by red indicator “10”). Addiionally, the LED indicators and
the keypad buzzer indicate the alarm condiion.
EWKB4 comes equipped with 1 zone terminal designed for passive
wired digital sensor connecion, such as magneic door contact, and
a tamper switch located on the back side of the device for enclosure
state supervision.
