WIRELESS LED KEYPAD EWKB4
EN
11

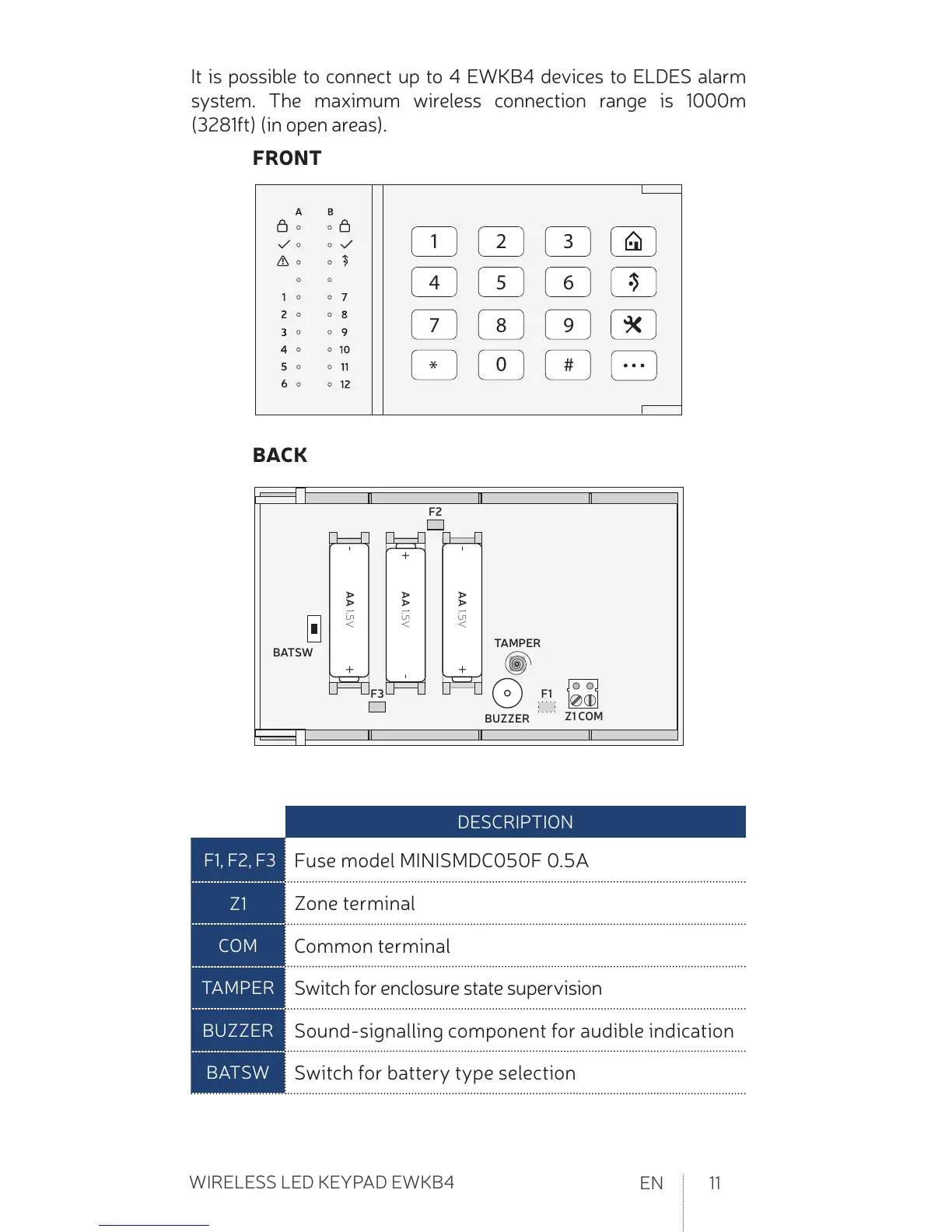

It is possible to connect up to 4 EWKB4 devices to ELDES alarm
system. The maximum wireless connecion range is 1000m
(3281t) (in open areas).
FRONT
1 2 3
4 5 6
7 8 9
*
0 #
BACK
Z1 COM
TAMPER
BUZZER
F1
BAT SW
+ -
AA 1.5V
+ -
AA 1.5V
+ -
AA 1.5V
F3
F2
DESCRIPTION
F1, F2, F3
Fuse model MINISMDC050F 0.5A
Z1
Zone terminal
COM
Common terminal
TAMPER
Switch for enclosure state supervision
BUZZER
Sound-signalling component for audible indicaion
BATSW
Switch for batery type selecion
