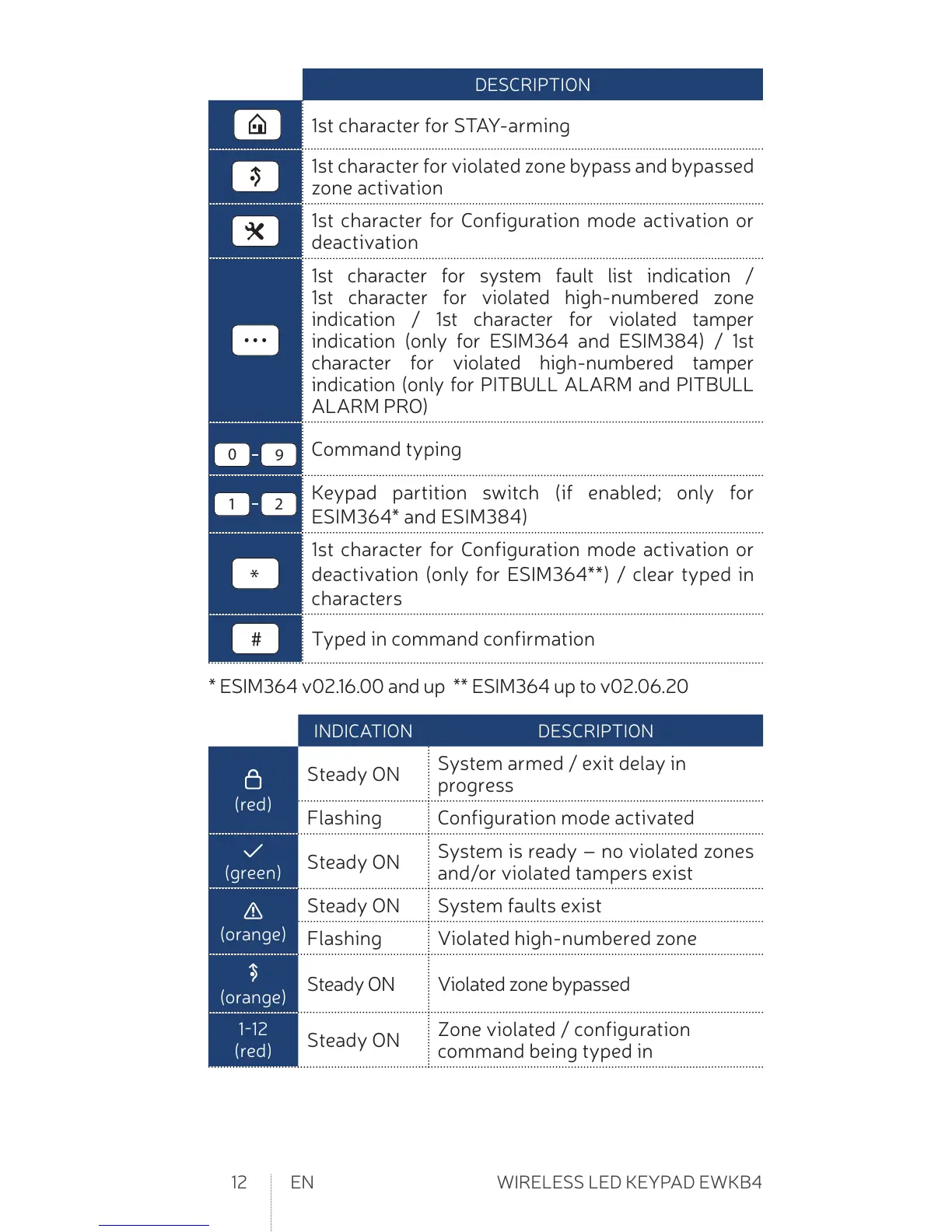

DESCRIPTION
1st character for STAY-arming
1st character for violated zone bypass and bypassed
zone acivaion
1st character for Coniguraion mode acivaion or
deacivaion
1st character for system fault list indicaion /
1st character for violated high-numbered zone
indicaion / 1st character for violated tamper
indicaion (only for ESIM364 and ESIM384) / 1st
character for violated high-numbered tamper
indicaion (only for PITBULL ALARM and PITBULL
ALARM PRO)
0
9
Command typing
1 2
Keypad pariion switch (if enabled; only for
ESIM364* and ESIM384)
*
1st character for Coniguraion mode acivaion or
deacivaion (only for ESIM364**) / clear typed in
characters
Typed in command conirmaion
* ESIM364 v02.16.00 and up ** ESIM364 up to v02.06.20
INDICATION DESCRIPTION
(red)
Steady ON
System armed / exit delay in
progress
Flashing Coniguraion mode acivated
(green)
Steady ON
System is ready – no violated zones
and/or violated tampers exist
(orange)
Steady ON System faults exist
Flashing Violated high-numbered zone
(orange)
Steady ON Violated zone bypassed
112
(red)
Steady ON
Zone violated / coniguraion
command being typed in
