SoilTest PRO Auto Soils Consolidator (ASC)
25-0500
Original Instructions 8 9901X0275 Issue 2
3 Description
The ASC machine consists of a consolidation frame and sensors. The part number for the
frame is 25-0500/09. The frame load capacity is 15 kN. The default S-type load cell is 15 kN
and its part number is 27-1565. The default consolidation measurement sensor (LVDT) has a
15 mm range. It’s part number is 27-1650. Other ELE S-type load cells or LVDTs may be
used.

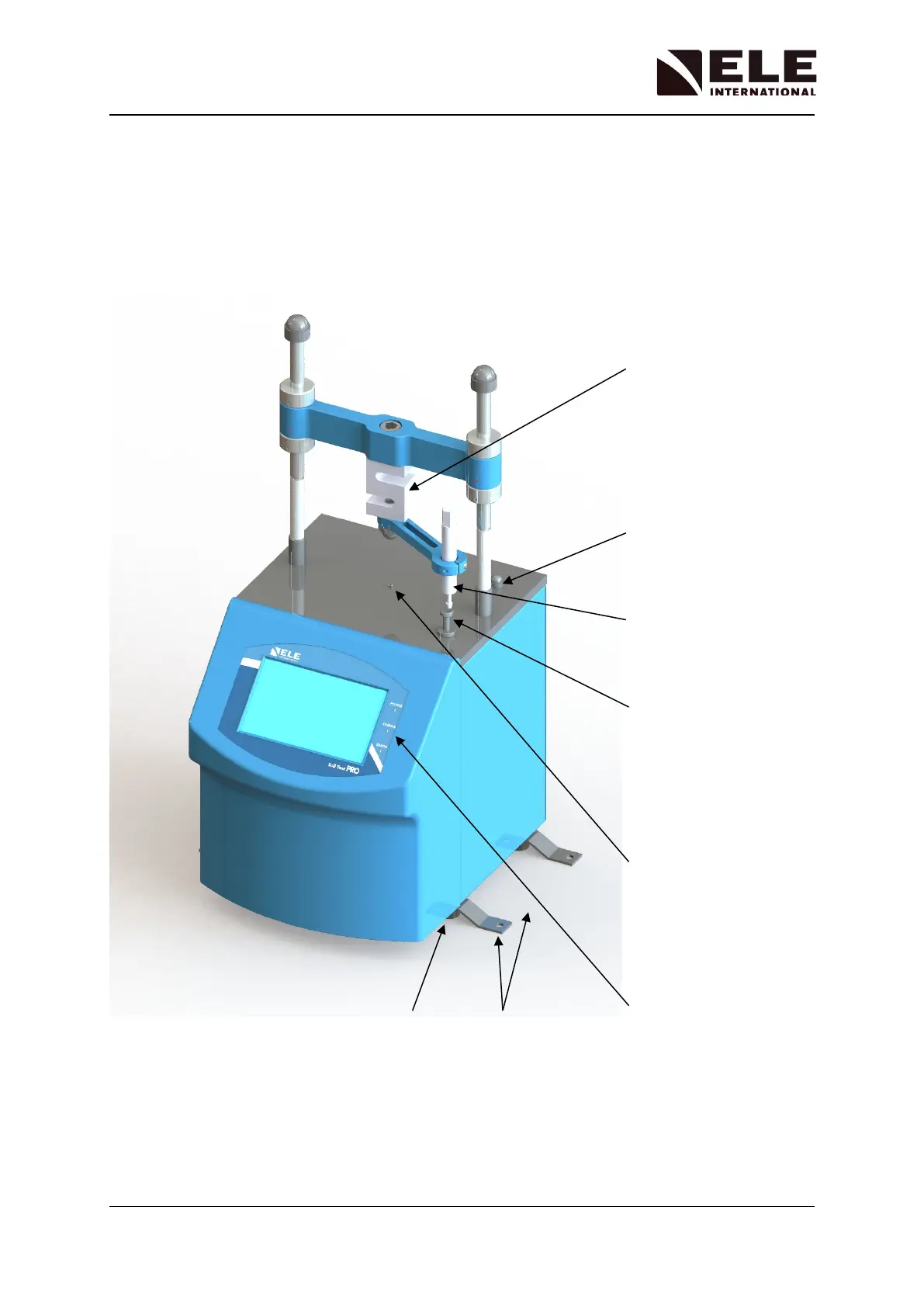

S-Type Load Cell
Alternative LVDT position
LVDT
LVDT measurement point
Cell centring pip
Status LEDs
Adjustable feet and fixing brackets
