Ele SoilTest PRO - Consolidation Cell Range

SoilTest PRO Auto Soils Consolidator (ASC)
25-0500
Original Instructions 9 9901X0275 Issue 2
3.1 Consolidation Cell Range
A large number of consolidation cell sizes are available for testing the soil sample. There are
4 overall cell sizes (Series 0444, 0469, 0490 and 0520) that cover the 12 standard sample
sizes offered. Refer to the Product Codes in the table below. The cell also includes a cutting
ring and porous discs. Spare rings and discs are available. Other custom sizes may also be
requested. The part numbers of calibration discs necessary for the deformation calculation
are also shown below.
Spare Parts
Series
Code
Product
Code
Cell Size
Cutting ring
Lower porous
disc
Upper porous
disc
Standards
0444
25-0444
35 mm
25-0444/12
25-0444/11
25-0444/10
BS, ISO, ASTM
0490
25-0446
50mm
25-0446/12
25-0490/11
25-0455/10
BS, ISO, ASTM
0469
25-0466
70 mm
25-0466/12
25-0469/11
25-0466/10
BS, ISO, ASTM
0469
25-0467
75 mm
25-0467/12
25-0469/11
25-0503/10
BS, ISO, ASTM
0520
25-0510
100 mm
25-0510/12
25-0520/11
25-0510/10
BS, ISO, ASTM
0520
25-0520
112.8 mm
25-0520/12
25-0520/11
25-0520/10
BS, ISO, ASTM
0490
25-0499
2 inch
25-0499/12
25-0490/11
25-0499/10
BS, ISO, ASTM
0490
25-0489
2.416 inch
25-0489/12
25-0490/11
25-0489/10
BS, ISO, ASTM
0490
25-0490
2.5 inch
25-0490/12
25-0490/11
25-0479/10
BS, ISO, ASTM
0469
25-0469
3 inch
25-0469/12
25-0469/11
25-0469/10
BS, ISO, ASTM
0520
25-0459
4 inch
25-0459/12
25-0520/11
25-0459/10
BS, ISO, ASTM
0469
25-0449
70 x 19 mm
25-0449/12
25-0469/11
25-0466/10
Geospec 3

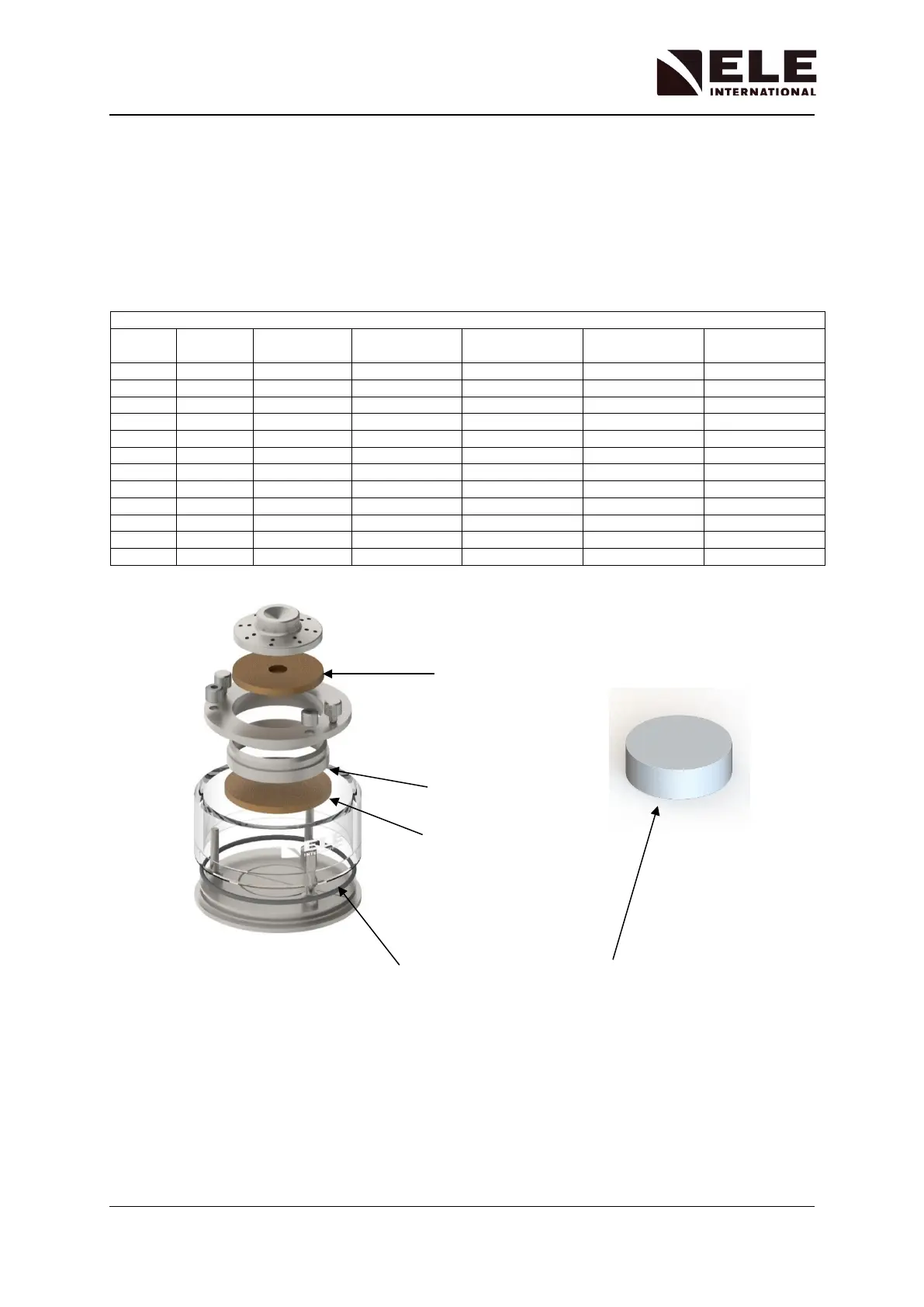

Upper porous disc
Cutting ring
Lower porous disc
Series Code
Cell Size
O ring
Calibration Disc
0444
35 mm
25-0444/14
25-0444/15
0490
50mm
25-0490/14
25-0446/15
0469
70 mm
25-0469/14
25-0466/15
0469
75 mm
25-0469/14
25-0467/15
0520
100 mm
25-0520/14
25-0510/15
0520
112.8 mm
25-0520/14
25-0520/15
0490
2 inch
25-0490/14
25-0499/15
0490
2.416 inch
25-0490/14
25-0489/15
0490
2.5 inch
25-0490/14
25-0490/15
0469
3 inch
25-0469/14
25-0469/15
0520
4 inch
25-0520/14
25-0459/15
0469
70 x 19 mm
25-0469/14
25-0449/15
