4-2

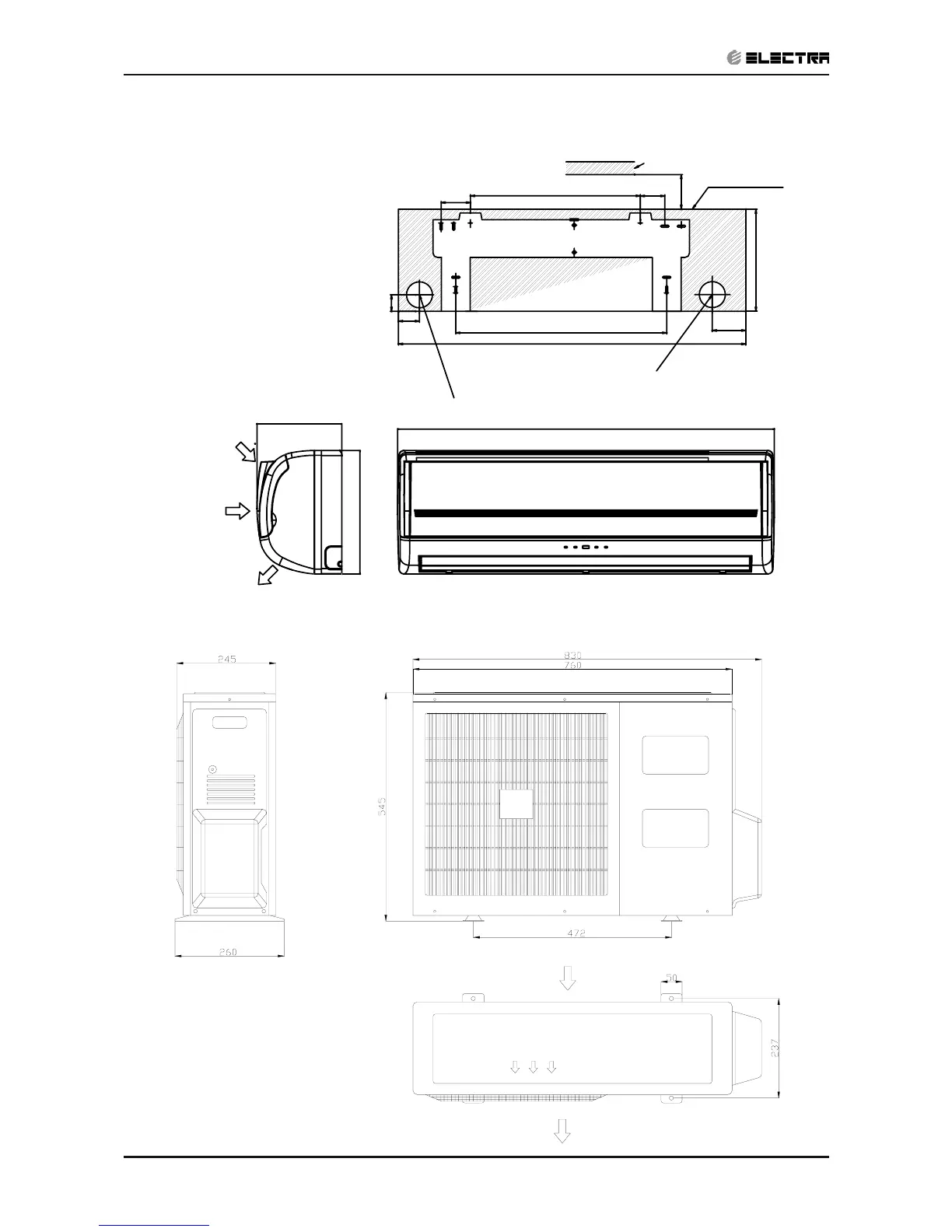

OUTLINE DIMENSIONS
Revision Y05-01 Service Manual - Delta DCI
4.3 Indoor Unit: 50 DCI
4.4 Outdoor Unit: DCR 22, 25, 35 DCI
TUBING WALL OPENING
(FOR REAR ROUTING)
205
AIR OUTLET
AIR INTAKE
AIR INTAKE
295
900
TUBING WALL OPENING
(FOR REAR LEFT ROUTING)
295
80
900
40
440
50
INDOOR UNIT OUTLINE
CEILING
MOUNTING TEMPLATE
TO BE USED FOR LOCATION
OF INDOOR UNIT ON THE WALL
483
65
Min50
65
AI R OUT L E T
AI R I NTAKE
