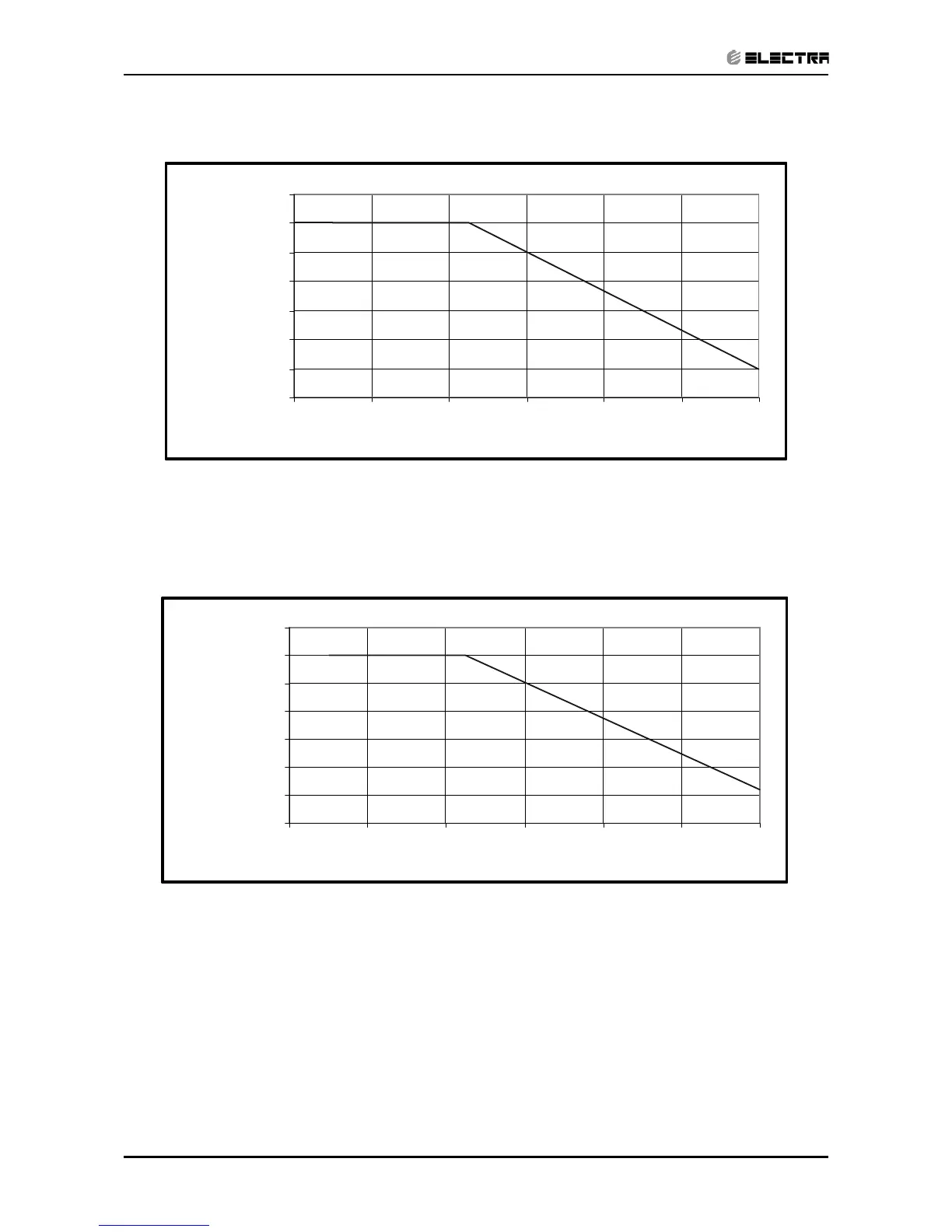

PERFORMANCE DATA & PRESSURE CURVES
Revision Y05-02 Service Manual - Delta DCI
5.5.7 Delta 50 DCI : Cooling
5.5.8 Heating
0.94
0.95
0.96
0.97
0.98
0.99
1.00
1.01
3 5 7 9 11 13 15
Tubing Length[m]
Capacity Ratio
0.970
0.975
0.980
0.985
0.990
0.995
1.000
1.005
3 5 7 9 11 13 15
Tubing Length[m]
Capacity Ratio
