Electra evolution - Technical Features of the System; Outdoor Video Panel Features

02

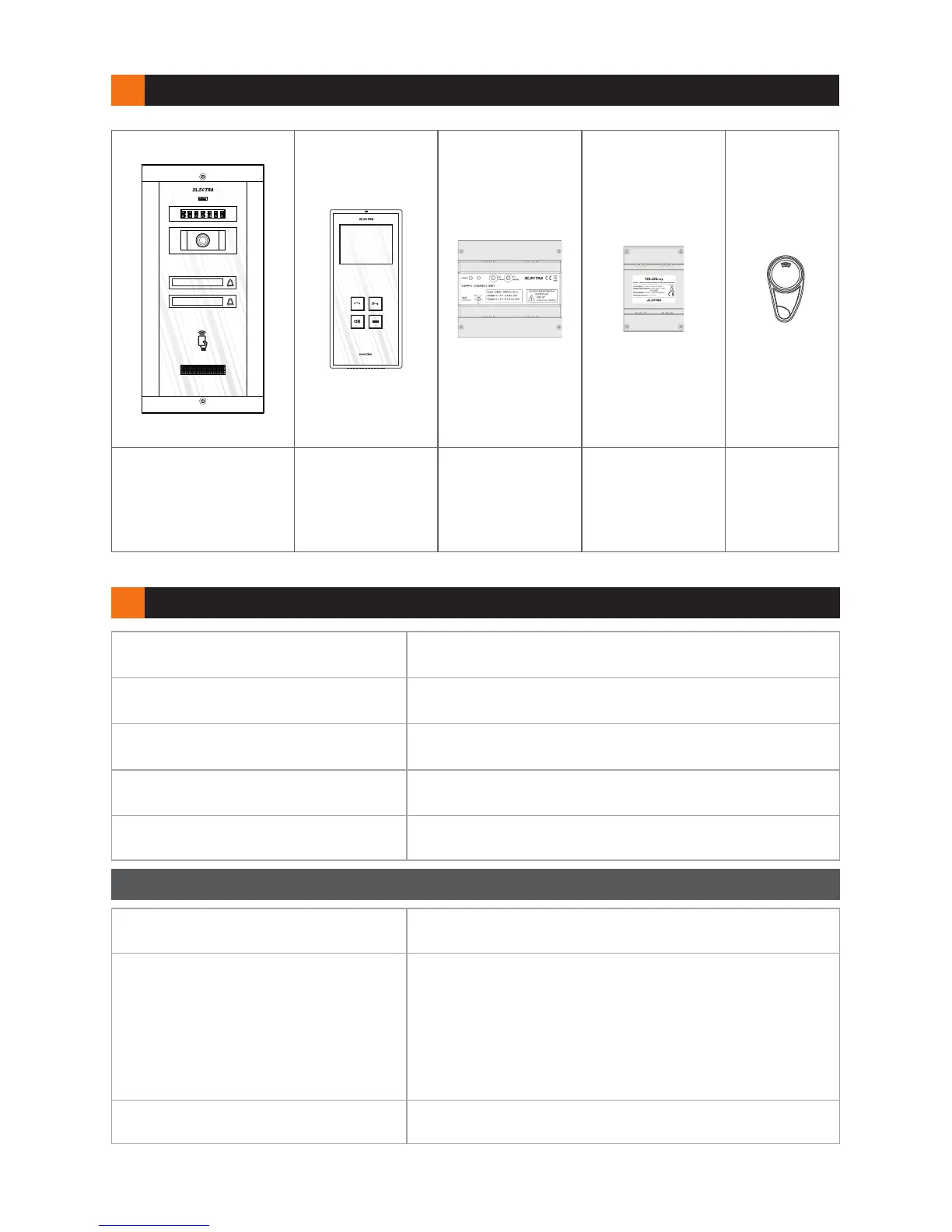

1 KIT COMPONENTS
Outdoor panel
1 pc.
294 × 144 × 53 mm
Indoor terminal
2 pcs.
212 × 96 × 30 mm
Supply control unit
1 pc.
130 × 141 × 73 mm
Access tag
10 pcs.
35 x 62 x 7 mm
Video connection box
1 pc.
100 × 71 × 60
Supply tension of the system
(supply of the control unit)
Video communication
230 V±10% / 50 Hz
0,4A AC
Audio communication
Full-duplex
Data communication
Digital
Analog video signal
Maximum power expenditure
from the 230 V AC network
2 TECHNICAL FEATURES OF THE SYSTEM
Supply tension
12,0 ... 14,3 V DC(stabilized)
Steerable video camera module
- CCD, 1/3”, 573(H) x 597(V) pixel resolution;
420 TV Lines;
- angle of visualization: 96° horizontal, 45° vertical;
- video signal: 1Vvv/75 PAL;
- presence of video camera – 1 RED LED,
intermittently on;
- left-right rotation angle: ± 25°
13 LED's = 850 nm; 7mW/sr per LED radiated
luminous intensity
Infrared illumination
2.1 Technical features of the Outdoor video panel
