CONTROL SYSTEM
11-4 SM PXD 1-E.3 GB

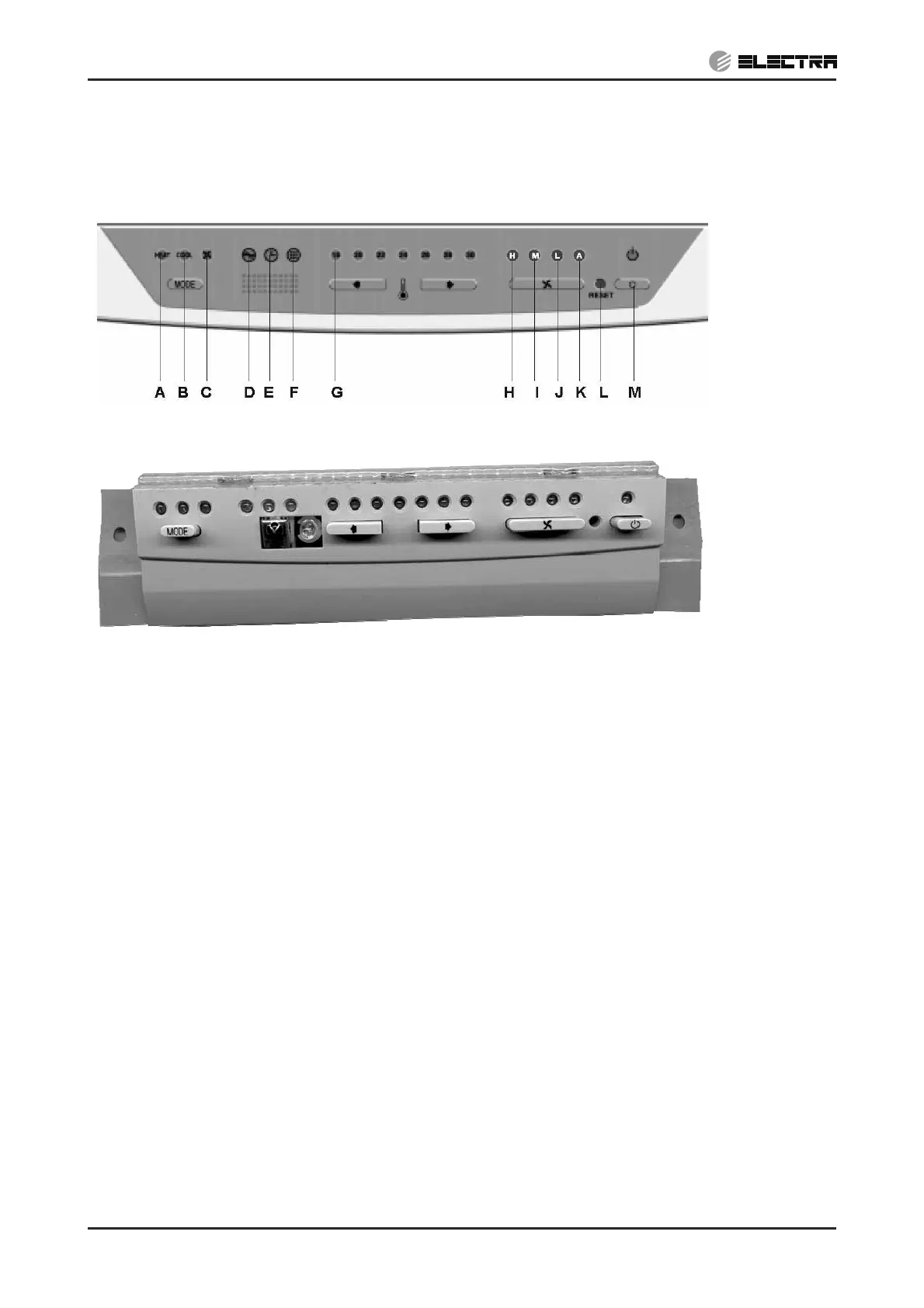

11.1.5 Display Board :LEXAN
11.1.6 Display Board : Assembly
11.1.7 Legend :
A) Heating LED
B) Cooling LED
C) Fan LED
D) Operation LED
E) Timer LED
F) Filter LED
G) Temp’ Set Point Indication
H) Fan Speed H,(High) I,(Medium) J,(Low) K,(AUTO)
L) Reset
M) STB’Y LED
