Controls and Connections

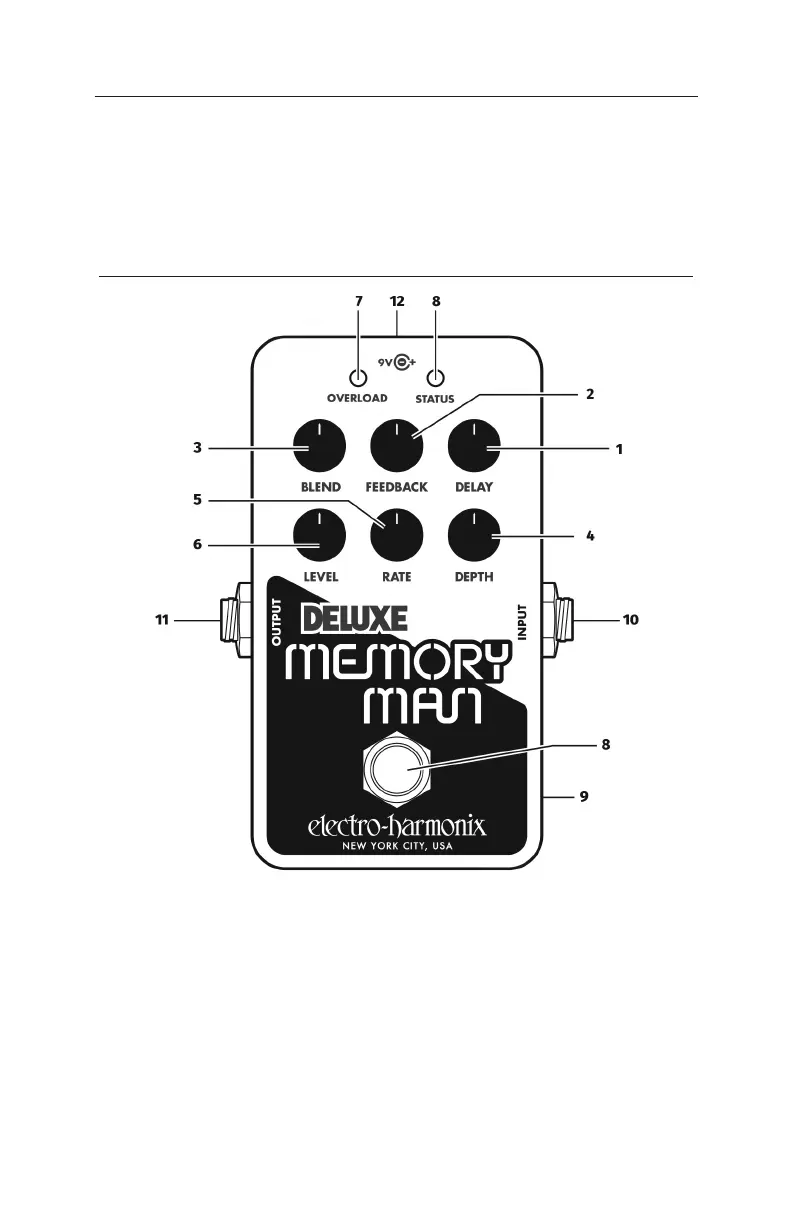

1. DELAY Knob Sets delay time from 30ms to 550ms. As DELAY is turned clockwise, the
delay time increases. Turning the DELAY knob while playing can produce strange, eerie
and unusual pitch-shift effects, especially with FEEDBACK set above noon. Note:
it is normal to hear ring modulation artifacts when DELAY is set above 3 o’clock.
2. FEEDBACK Knob Controls the amount of signal that is circulated from the
output of the delay block back to its input yielding delay repeats, or multiple
echoes. If set very high, runaway oscillation will occur. Fairly high feedback
with short delay settings produces a reverb effect.
3. BLEND Knob Varies the output mix between the dry and delayed signals. The
BLEND knob ranges from 100% dry (CCW position) to 100% wet (CW position).
Set BLEND to the center position for equal levels of both.
- 2 -
Operating Instructions
Connect your guitar to the INPUT jack on the Nano Deluxe Memory Man (Nano DMM)
and the OUTPUT jack to your amp’s input. Plug in the included power supply and
insert its output plug into the power jack. Press the footswitch to ensure the
STATUS LED is lit, now your Nano DMM is ready to go. Have fun experimenting with
the Nano DMM and other effects pedals to develop your own unique sound.
