Cabinets: 4 x Xi 1183, 4 x Xi 2181, 6 x Xi 1191 Horizontal coverage: 2 x 120°-130°
Amps: 7 x P 3000 Average distance: 30-40 meters
Cabeling: 6 x NL8 long, 12 x NL8 short Total amp. power: 13,400 Watts
Dx38: 3
L: 12“ L:2“
L: 18“ (1183) S:3 x 18“
L: 2 x 18 “ (2181) L: 2 x 18 “ (2181)
R: 12 “ R:2 “
S: 3 x 18 “ R:18 “ (1183)
R: 2 x 18 “ R:2 x 18 “
Equipment Capacity
Dx 38 configuration * OS V1.05, might change w/o prior notice
Comments Options

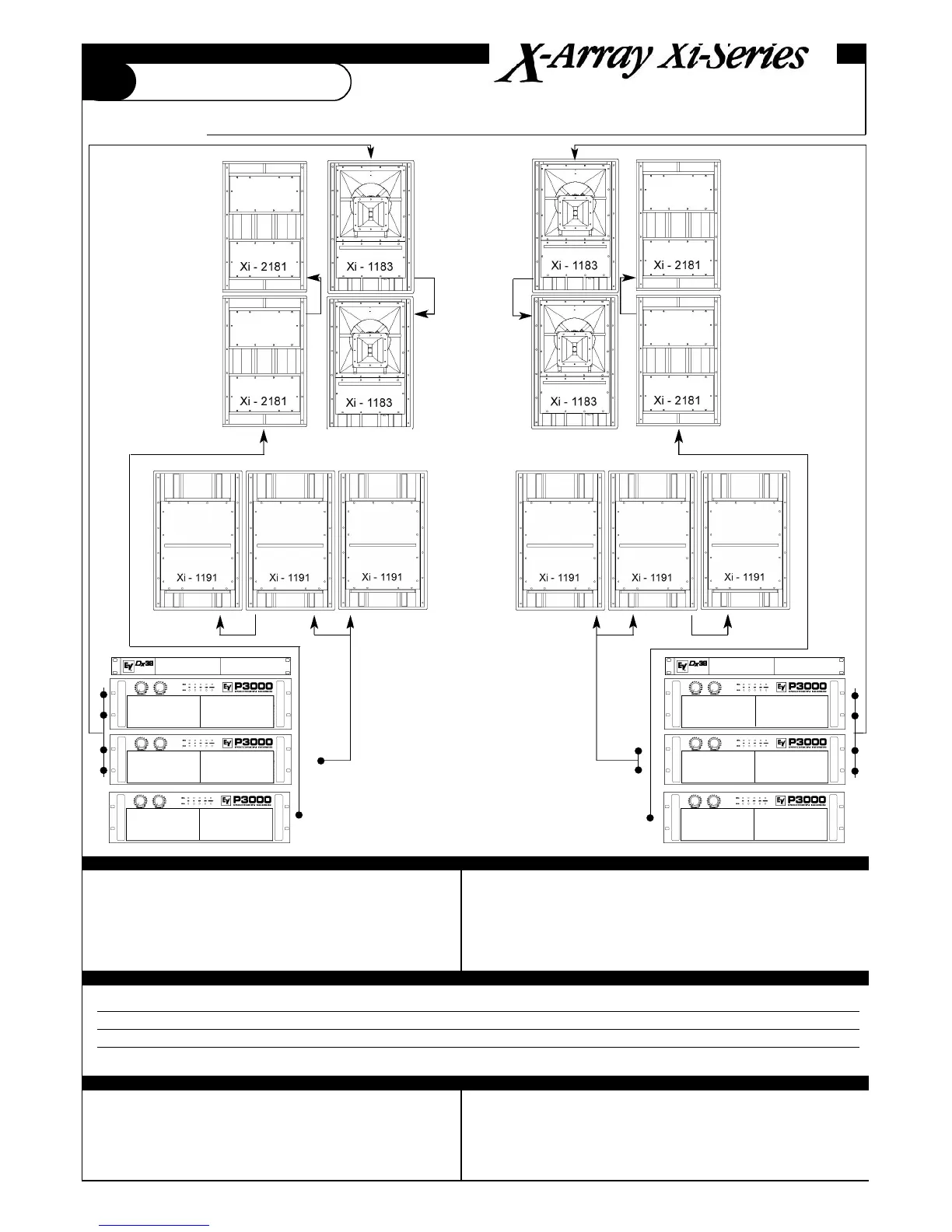

System Applications Xi Series
4-Way Stereo + Sub
Medium to Large Venue • Concert, narrow
6.1
Left
to OP
to OP
Right
Dx38 In 1 In 2 Out 1 Out 2 Out 3 Out 4 Preset *
#1 Main Left Sub L Lo L Mid L Hi L #42
#2 Main Right Sub R Lo R Mid R Hi R #42
#3 Sub Mono Sub M #36
If Low channel is operated in mono, the Sub signal
could be handle through the 2nd Dx38 – the 3rd ist
not needed.
