System Applications Xi Series
Medium to Large Venue • Rock’n Roll
5.2
4-Way Stereo

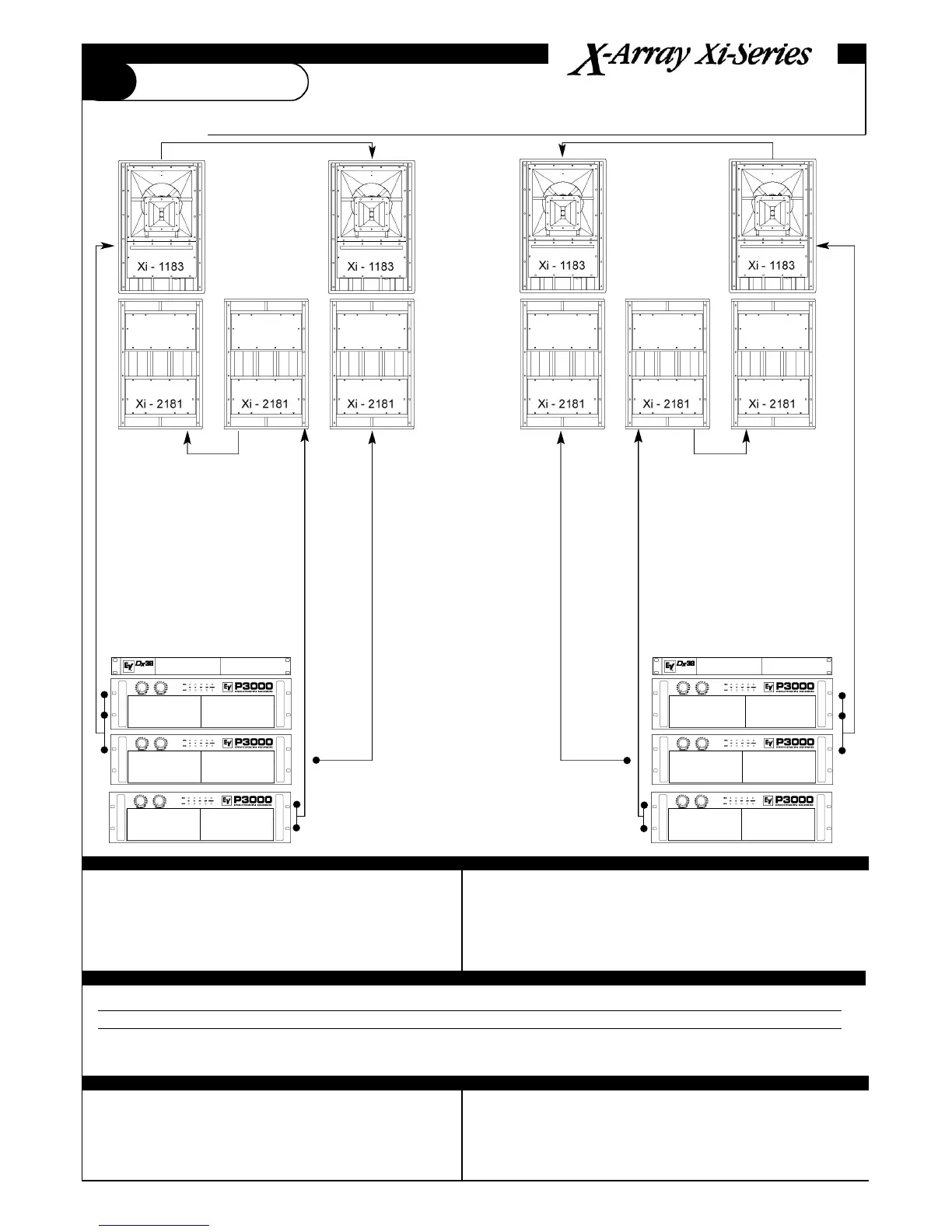

Cabinets: 4 x Xi 1183, 6 x Xi 2181 Horizontal coverage: 2 x 120°-130°
Amps: 6 x P 3000 Average distance: 30 - 35 meters
Cabeling: 6 x NL8 long, 4 x NL8 short Total amp. power: 11,400 Watts (cont.)
Dx38: 2
L: 12” L:2”
L: 18” (1183) L:2x18” (2181)
L: 2 x 18” (2181) L: 2 x 18” (2181)
R: 12” R:2”
R: 18” (1183) R : 2 x 18” (2181)
R: 2 x 18” (2181) R:2 x 18” (2181)
Left Right
Dx38 In 1 In 2 Out 1 Out 2 Out 3 Out 4 Preset *
#1 Main Left Sub L Lo L Mid L Hi L #42
#2 Main Right Sub R Lo R Mid R Hi R #42
Very “punch” orientated set-up. For longer narrow
venues stack Xi 1183.
If Sub signal is used mono (Sum L+R or separate
feed) remaining Input and Output Dx38 could be
used for Fullrange Delay Lines.
