7.3.12 Adjusting receiver output level
Setting the receiver output level through menu item 7, RX Output Level assigns either mic level, or
line level to the receiver XLR and ¼” TS output jacks. This is an important step in ensuring the
signal level leaving the receiver is appropriate for the destination circuit of either a microphone
preamp, or a line in preamp.

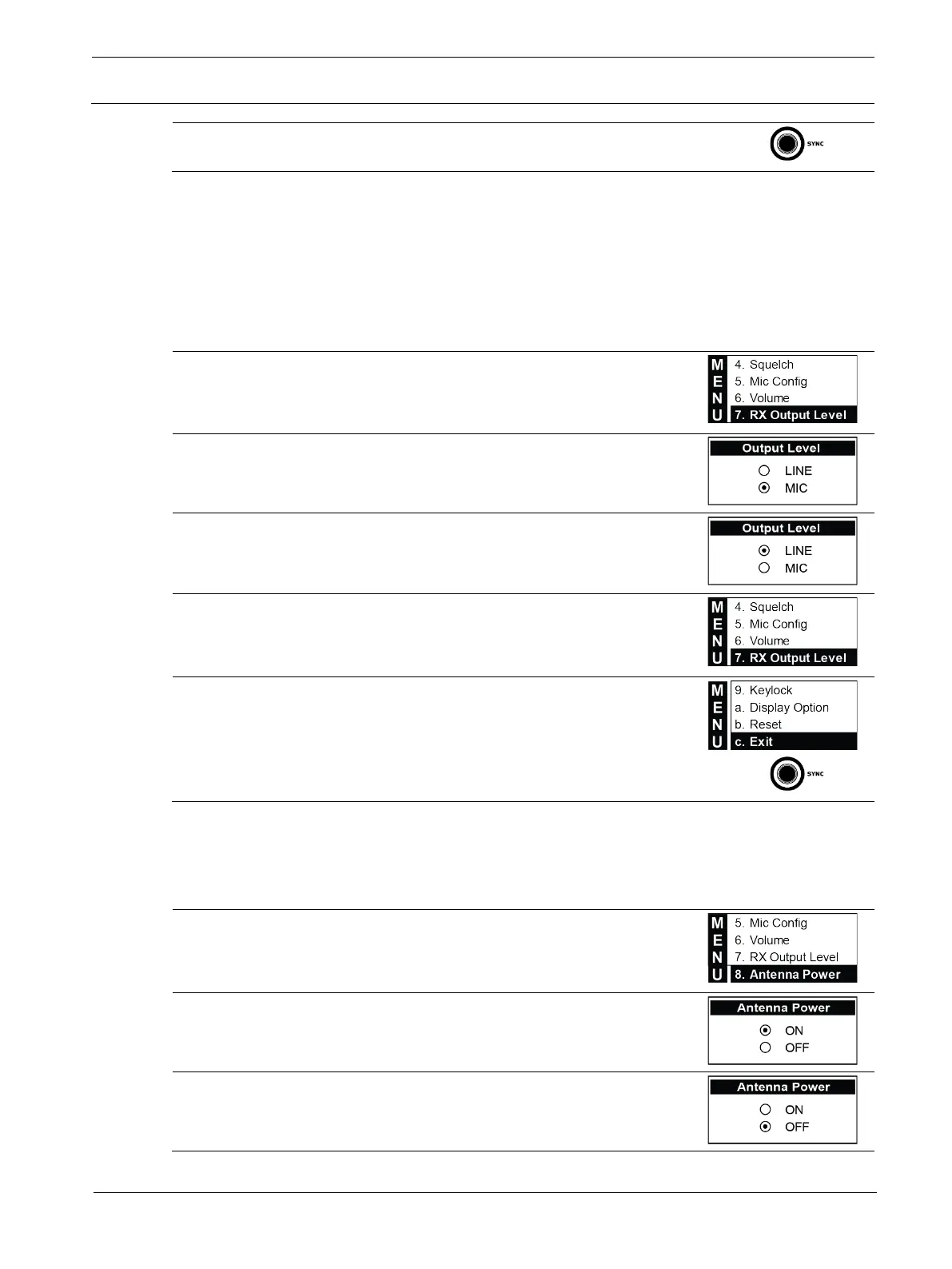

1
Press the ▼ button to scroll down to RX Output Level from the
main menu. Select by pressing SET to enter the RX Output Level
screen.
2
The display shows the current volume setting of either MIC or
LINE.
3
To select desired level, pressing the ▲ button toggles from MIC to
LINE, and the ▼ button toggles from LINE to MIC.
4 Press SET to save changes and return to main menu.
5
Either scroll ▼down to Exit and press SET, or briefly press SYNC
on the receiver front panel to return to the home screen.
OR
7.3.13 Turning antenna power on and off
The receiver antenna jacks can supply 12vDC booster feed to power the optional RFAMP booster,
or ALPA active antenna.
1
From the main menu, press the ▼ button to scroll down to
Antenna Power.
2 The display choices are ON or OFF.
3
To select, pressing the ▲ button toggles from OFF to ON, and the
▼ button toggles from ON to OFF.
