3. Cabling
LF-Cords

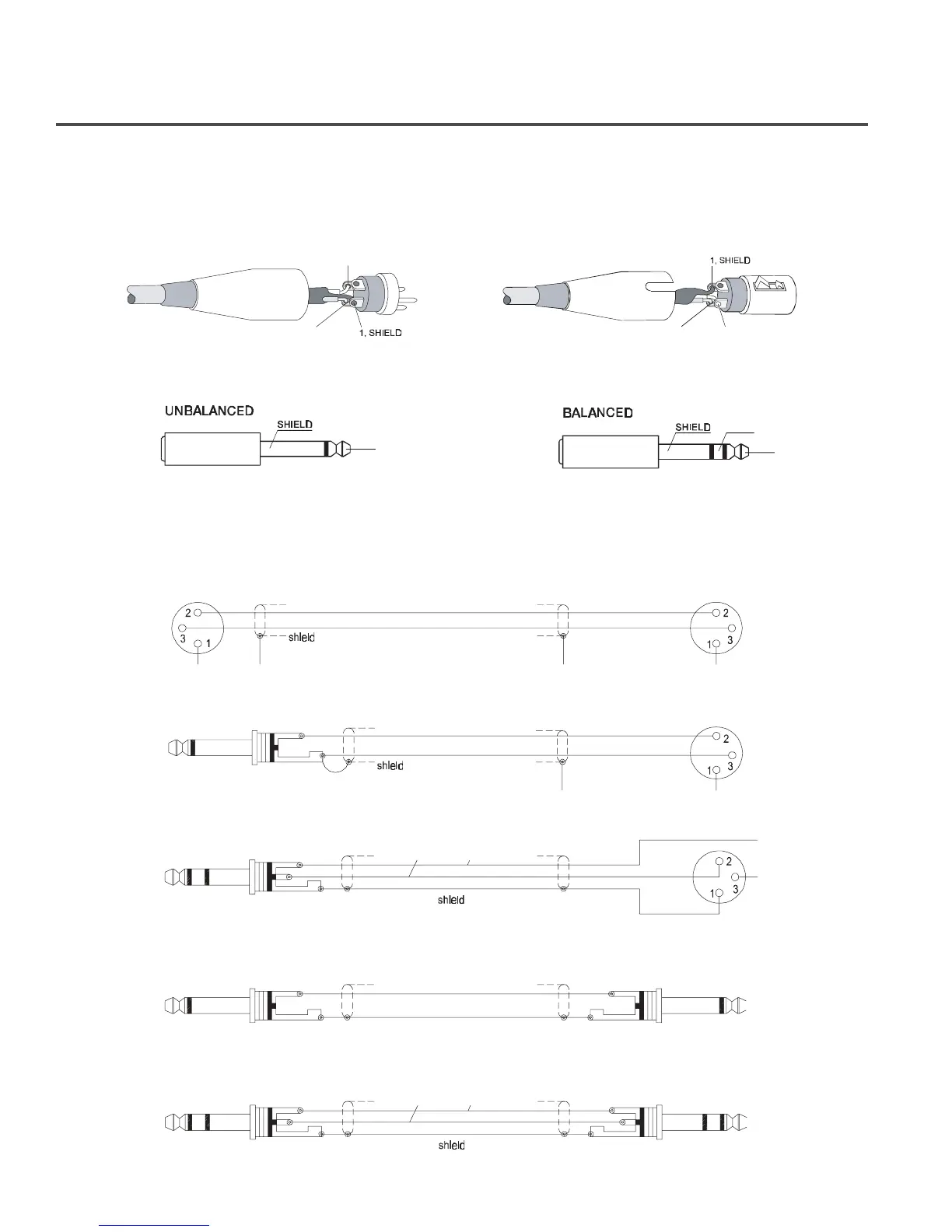

Using balanced cables with phone or XLR-type plugs for connecting signal sources to the SbA760 is
strongly recommended to prevent problems caused by noise interference. Make sure to mind the
pin-assignment as shown below.
XLR MALE
XLR FEMALE
2, SIGNAL +
3, SIGNAL -
2, SIGNAL +3, SIGNAL -
SIGNAL -
SIGNAL +
SIGNAL +
Standard XLR-Cable
Cable connection phone to XLR-type, unbalanced
Cable connection phone to XLR-type, balanced
Standard phone-type, unbalanced
Standard phone-type, balanced
signal +
signal -
signal +
signal -
signal +
signal -
signal +
signal -
signal +
signal -
The following illustration shows the most important cable connections and their pin-assignment.
A balanced wiring is to be preferred in each case.
