Location of Controls and Indicators

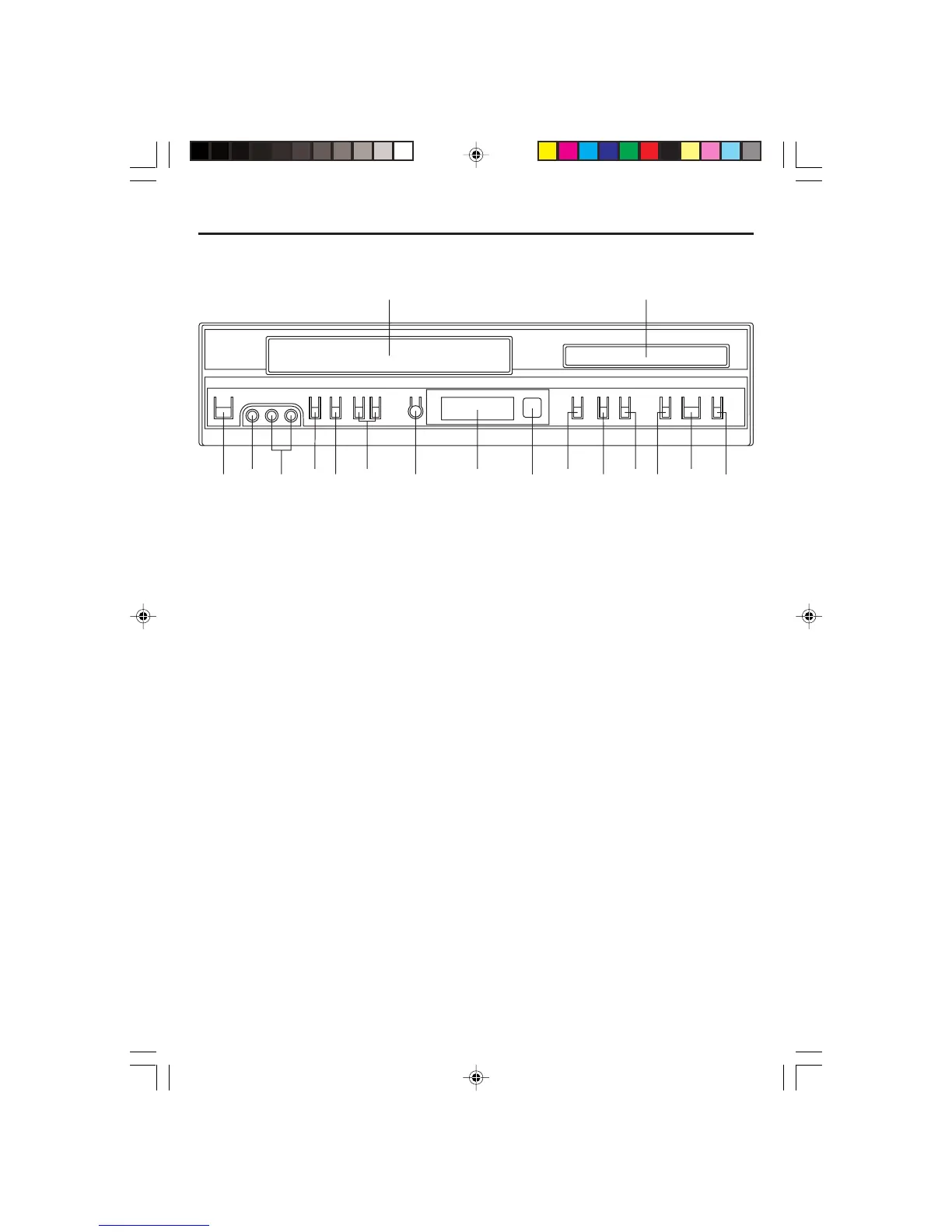

Main Unit (Front View)
1. Videotape Compartment 10. Display window
2. Disc Tray 11. RECORD Button
3. FAST FORWARD Button 12. CHANNEL Up/Down Button
4. PLAY/PAUSE Button 13. TV/VCR Button
5. REWIND Button 14. EJECT Button (VCR)
6. STOP Button 15. AUDIO L & R Input jack
7. OPEN/CLOSE Button (DVD) 16. VIDEO Input jack
8. SELECT Button 17. POWER (STANDBY/ON) Button
9. Remote Sensor
1
2
3
4
5
6
7
8
11
12
13
14
15
16
9
10
17
