ENGLISH
21

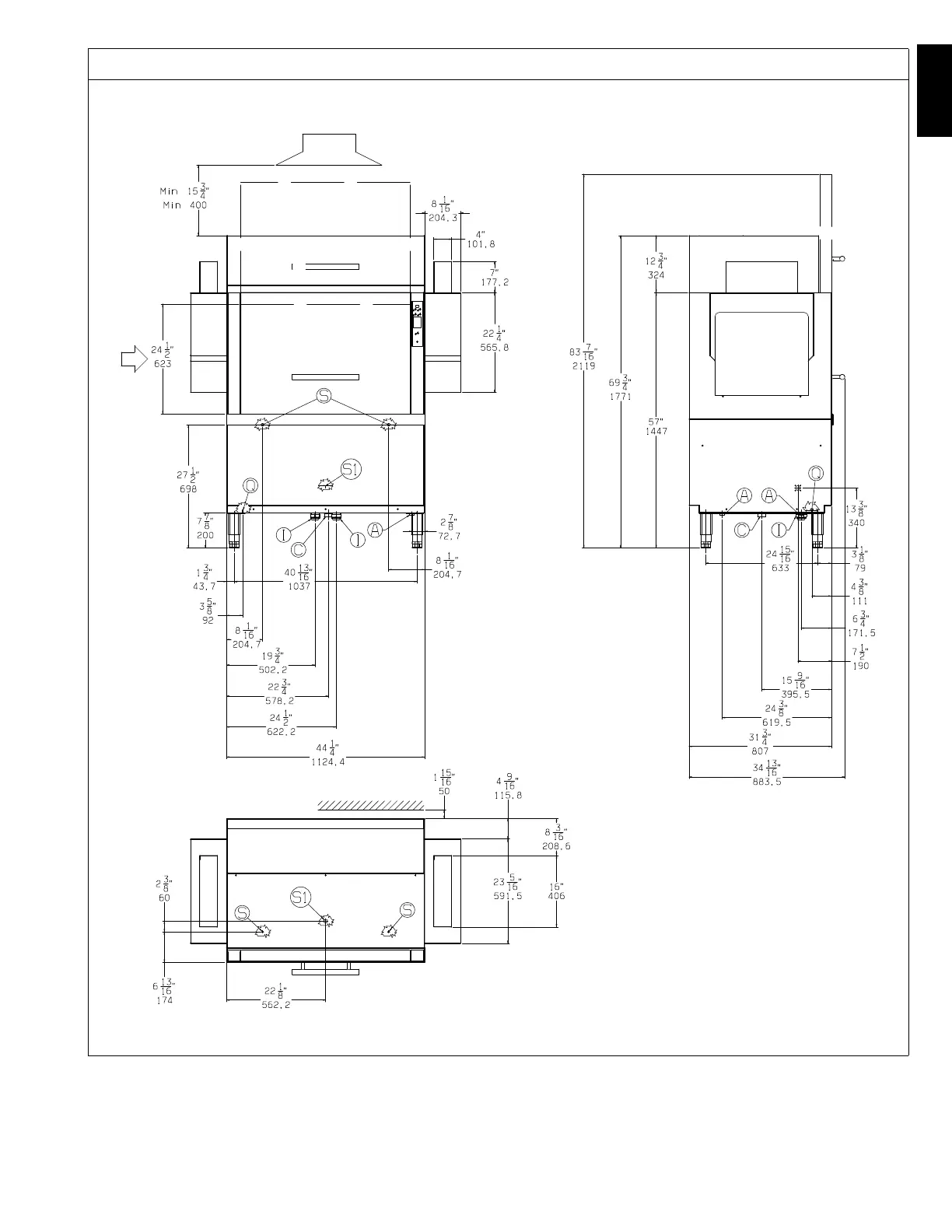

Installation diagram - rack-type dishwasher, 44” right
LEGEND
A Hot water inlet G 3/4”
B Cold water inlet G 3/4”
C Drain outlet G 1 1/2“
I Power supply entry
Q Equipotential screw
S Pipe inlet for detergents
S1 Detergent probe arrangement
