Electrolux Air-O-Steam User Manual

Installation
Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

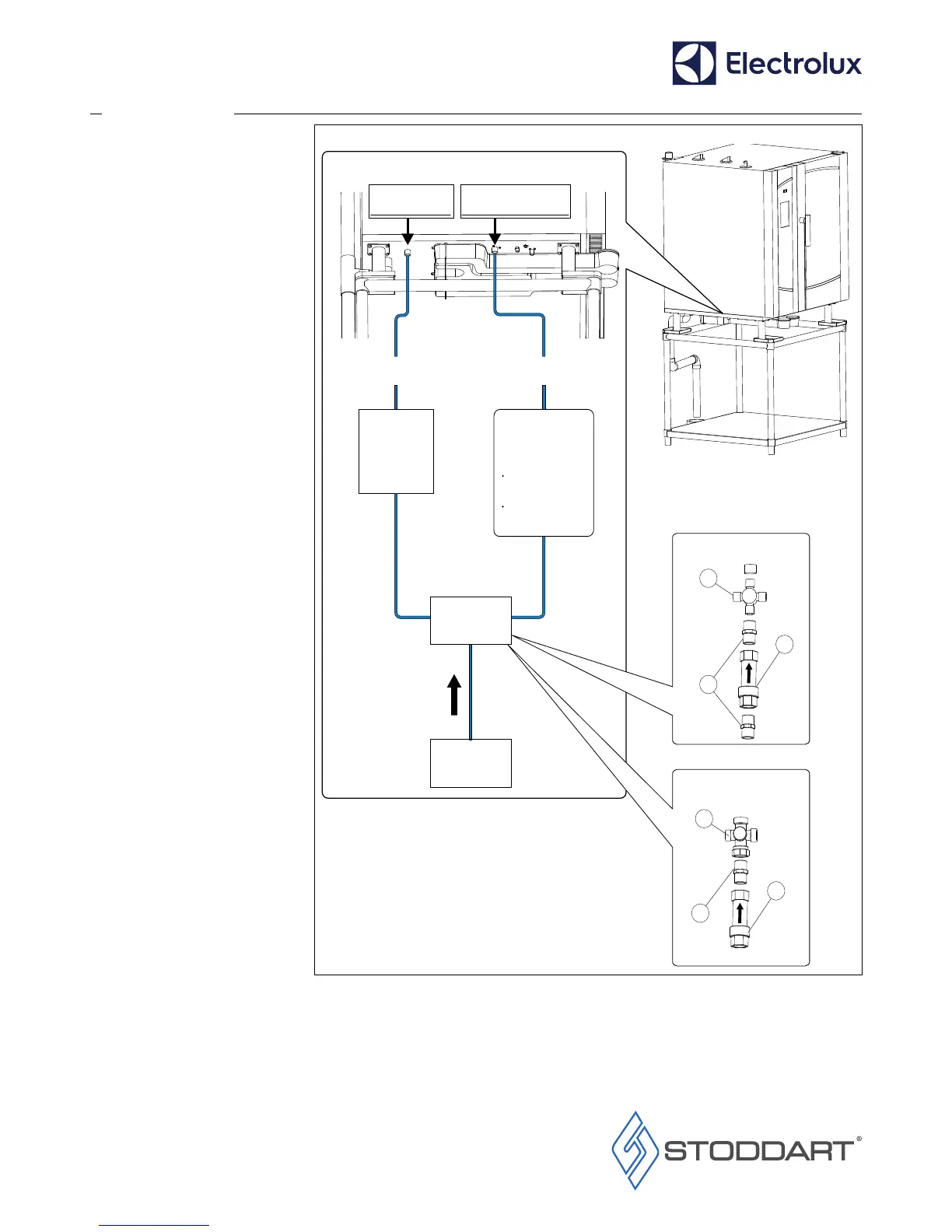

CWI-1
Filtered Water
CWI-2
Non Filtered Water
Water Supply
With
Isolation Valve
Water Flow
Direction
Filtration
System
150-350 kPa
(22-65 psi)
150-350 kPa
(22-65 psi)
No Filtration
System
Minimum Flow Rate
Refer to specific
installation guide
supplied with the
water filter
10LPM flow rate
6,10,10x2 tray oven
20LPM flow rate
20,40 tray oven
F
E
D
Supplied
Connectors
RO Filter
BWT Filter
B
C
A
Water Connection
• Water connections are labelled on the
service panel.
• Isolation valve must be installed at the
water supply outlet.
• CWI-1: The Combi oven requires
filtered water supplied to its steam
generation system.
Water pressure must be150-350 kPa
(22-65 psi) at oven connection.
• CWI-2:The Combi oven requires
unfiltered water supplied to its wash
system.
Water pressure must be150-350 kPa
(22-65 psi) at oven connection.
Minimum flow rate:
10LPM - 6,10,10x2 tray oven.
20LPM - 20,40 tray oven.
BWT Filter Supplied Connectors:
• A: Manifold fitting with 1 cap x1
• B: Non-Return Valve x1
• E: 3/4 BSB Hex Nipple x1
RO Filter Supplied Connectors:
• D: Manifold fitting with 2 caps x1
• E: Non-Return Valve x1
• F: 3/4 BSB Hex Nipple x1
