9
Calibration of temperature sensor
NOTE! In case of replacement of effect- or display PCB, the
food temperature sensor or the heating element temperature
sensor, temerature values for food and heating elemet have to
be calibrated as follows:
1. Fill up the boiling pan with appr. 10 cm water.
· Press Menu forwards and Menu back simultaneously
for 5 seconds.
· Digit the code 1122 by pressing Increase value or De-
crease value for digits, and Menu forwards or Menu
back for the position.
· Confirm by pressing Start .
SAFETY TEST MODE
· Select SERVICE MODE, pressing Decrease value and
press Menu forwards twice.
SERVICE
JACKET TEMP XX°C
CALIBRATED X°C
2. Press Decrease value and adjust the heating element
temperature sensor at -8°C.
3. Press Menu back .
SERVICE
FOOD TEMP XX°C
CALIBRATED X°C
· Press Decrease value and adjust the food temperature
sensor at -3°C.
4. Press Start .
· Stir the water inside the pan with a wooden ladle.
· Boiling process starts. When the water inside the pan is
boiling, the display shall indicate 100°C. Calibrate the value
by pressing Increase value or Decrease value max.
±8°C.
· Press Stop .
· Press Menu forwards once and Press Start .
· The boiling pan`s manometer have to show appr. 100-110
kPa (1,0-1,1 bar) when the display indicates 121°C. Calibrate
the value by pressing Increase value or Decrease value
max ±8°C.
· Press Stop .
· End the process by switching off the power, pressing ON/
OFF .

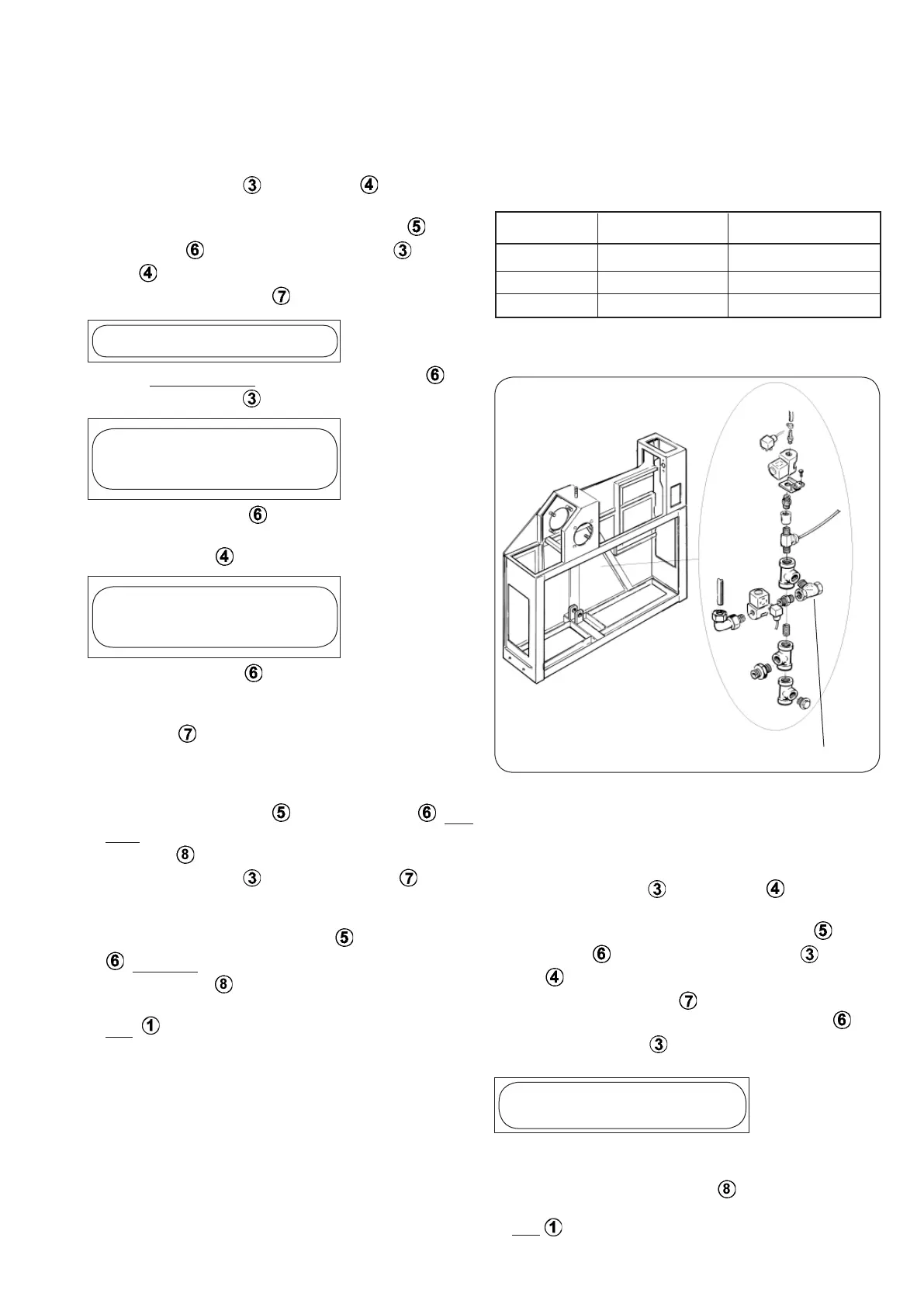

Radiator filler neck
Adjustment of the jacket cooling water
Valid to june 2013.
1. Start the automatic cooling program, vait until a uniform
flow of water running out of both pipes.
2. Put a bucket under båth pipes and fill under 20 seconds.
3. messure the water and confer with the tabe below:
Size(L) Flow (l/min.) Flow (l/20 sec.)
50-100 10 3,3
150 11 3,7
200-300 12 4
Adjust with radiator filler neck.
Reset the service intervall
Resetting the service interval after completion of service in
order to change the message in the display.
• Press Menu forwards and Menu back simultaneously
for 5 seconds.
• Digit the code 1122 by pressing Increase value or De-
crease value for digits, and Menu forwards or Menu
back for the position.
· Confirm by pressing Start .
• Select SERVICE MODE, pressing Decrease value and
press Menu forwards .
TIME TO SERVICE
0000 (0000) H
The time shown is the number of hours which elapsed since
the latest service and the maintenance interval.
• To reset the counter, press Stop in 3 sec.
• End the process by switching off the power, pressing ON/
OFF .
