Overhead Cabinet Should Not Exceed a
Maximum Depth of 13" (33 cm)
30" (76.2 cm) Min.
Clearance Between the
Top of the Cooking
Platform and the Bottom
of an Unprotected Wood
or Metal Cabinet
k
24" (6! cm) Min when_l_
Bottom of Wood or_
Metal Cabinet is
Protected by Not Less
Than 1/8" Flame
Retardant Millboard
Covered With Not Less
Than No. 28 MGS Sheet
Steel, 0015" (04 ram)
Stainless Steel, 0.024"
(0.6 ram) Aluminum or
0.020" (0.5 ram)
Copper
2 1/2" (64 cm) Min. From E
of Cutout to Front Edge of
Countertop
of Cutout and
Nearest Combustible I O"
254 cm)
F
ge
Approximate Location
of Junction Box
J Min. From Edge of
:p to Nearest
Combustible Wall
(Either Side of Unit)
It is not recommended to use
drawer underneath cooktop. Empty
space is needed for installation
purpose
Letterson this figure refer to chart on front pageexcept for J & K
_To eliminate the risk of burns or
fire by reaching over heated surfaces,cabinet
storage space located above the cooktop
should be avoided, If cabinet storage is
provided, risk can be reduced by installing a
range hood that projects horizontally a
minimum of 5" (12# cm) beyond the bottom
of the cabinets,
MODEL, J • K
30" Ceramic Glass 7Y2" (I9.1 cm) 2" (5.I cm)
36" Ceramic Glass 7Y2" (19.1 cm) 2" (5.I cm)

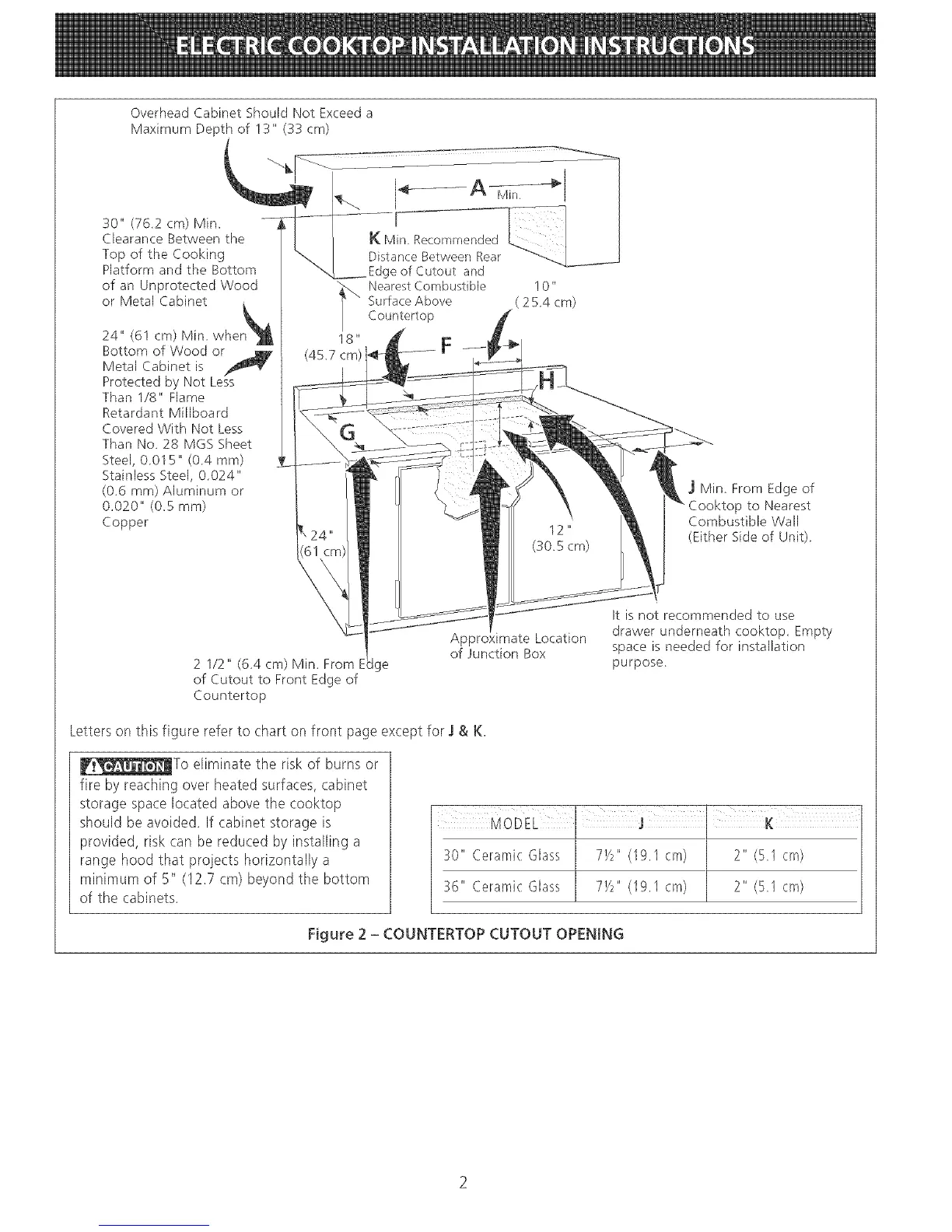

Figure 2 - COUNTERTOP CUTOUT OPENING
