Electrolux EDW 1503 - Control Panel Overview; Control Panel EDW 1100

- 5 -
03.2004 R.K. 599 519 400 EN

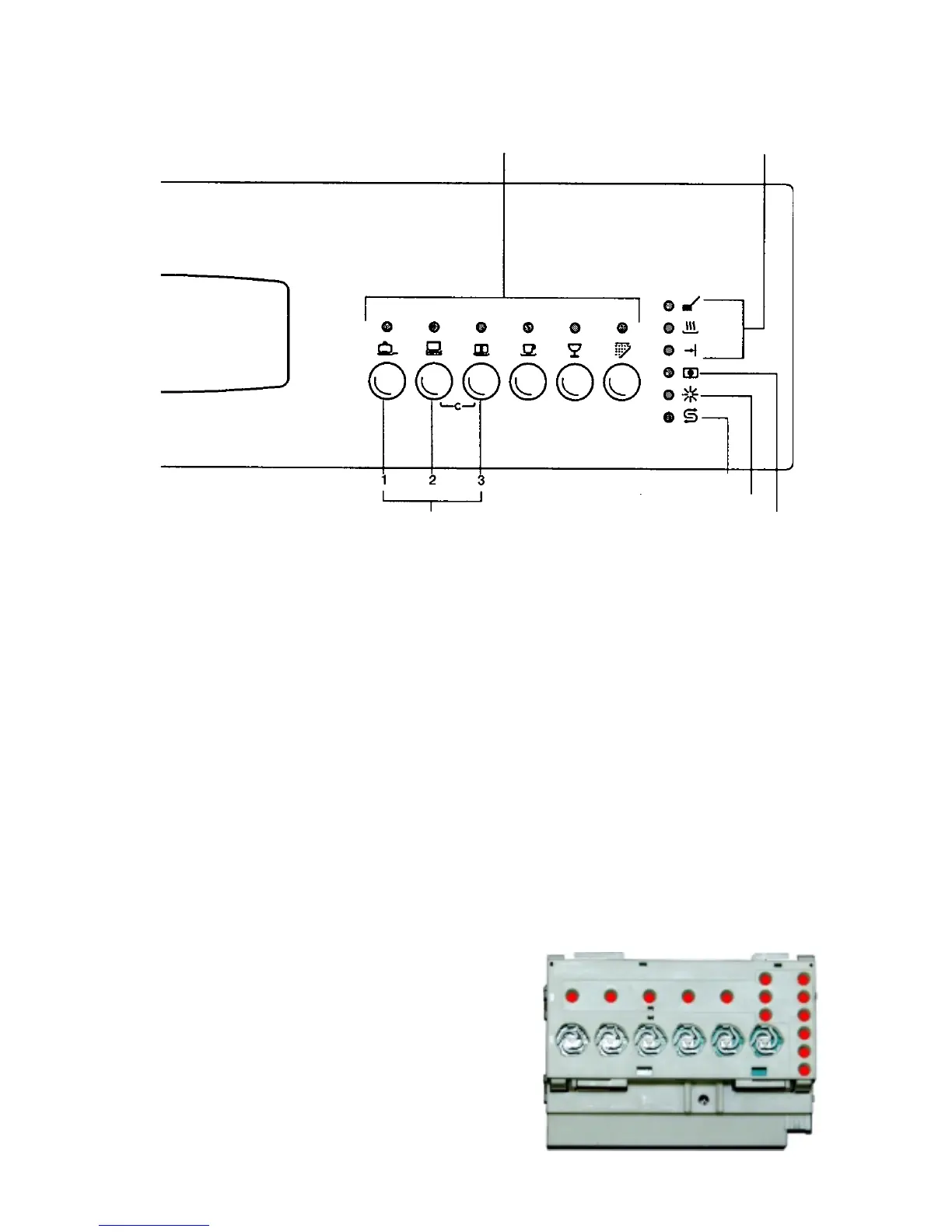

3.1. Control panel EDW 1100
LD1 LD2 LD3 LD4 LD5
S1 S2 S3 S4 S5 S6
LD8
LD7
LD6
LD9
LD10
LD11
LD12
LD13
LD14
Electronic EDW 1100
On electronic models, a micro processor controls all components,
this is done using triacs. The electronic also memorizes all
programme data.
The heating is switched by a relay on the electronic board.
Program buttons
Function buttons:
Function button 1 Setting of Water hardness
Function button 2 Activation/deactivation of rinse aid addition (3 in1)
Function button 3 -
Program flow LEDs:
The program flow LEDs indicate the active subprogram
Program buttons
Program flow LEDs
LED rinse-aid
LED 3in 1
Function buttons
LED salt
