3.3. Control panel EDW 1503
Electronic EDW 1503
On electronic models, a micro processor controls all
components, this is done using triacs. The electronic also
memorizes all programme data.
The heating is switched by a relay on the electronic board.
LD1 LD2 LD3 LD4 LD5 LD6
S1 S2 S3 S4 S5 S6
LD10
LD11
LD12
Display LD14 - 29
Separate ON/OFF switch without optical confirmation.

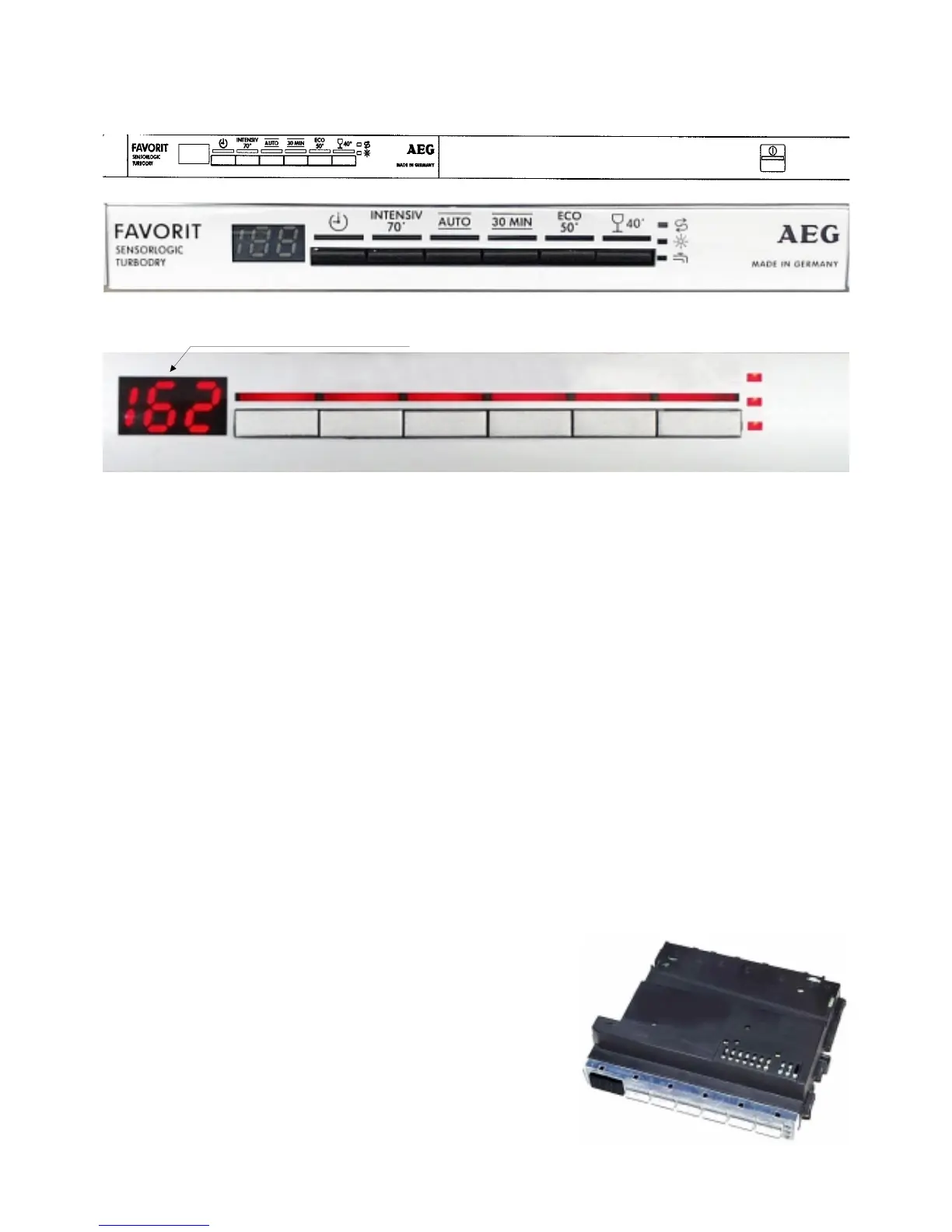

6 keys S1 to S6 to select programs or options with the corresponding LEDs
2,5-digit display and 3 LEDs (LD10 to LD12)
Indication of start time via 2.5-digit display
Indication between 1 and 19 hours (in steps of 1h)
Indication of remaining run time via 2.5-digit display (maximum indication of run time "199")
LED display for salt, rinse-aid, water tap closed and END.
regeneration on need manufacturing test routine several service functions
Possible selectable program options:
- start-time preselection
- half load "small quantity" as automatic system or with key
- additional washing cycle
- 3 in 1 (special tablet program)
- senitize
