6 electrolux Installation
EN
INSTALLATION
The cooker hood must be installed cen-
trally over a cooking appliance. The mi-
nimum distance between the cooking
surface and the metal grease lters on
the underside of the hood must be at
least 650mm.

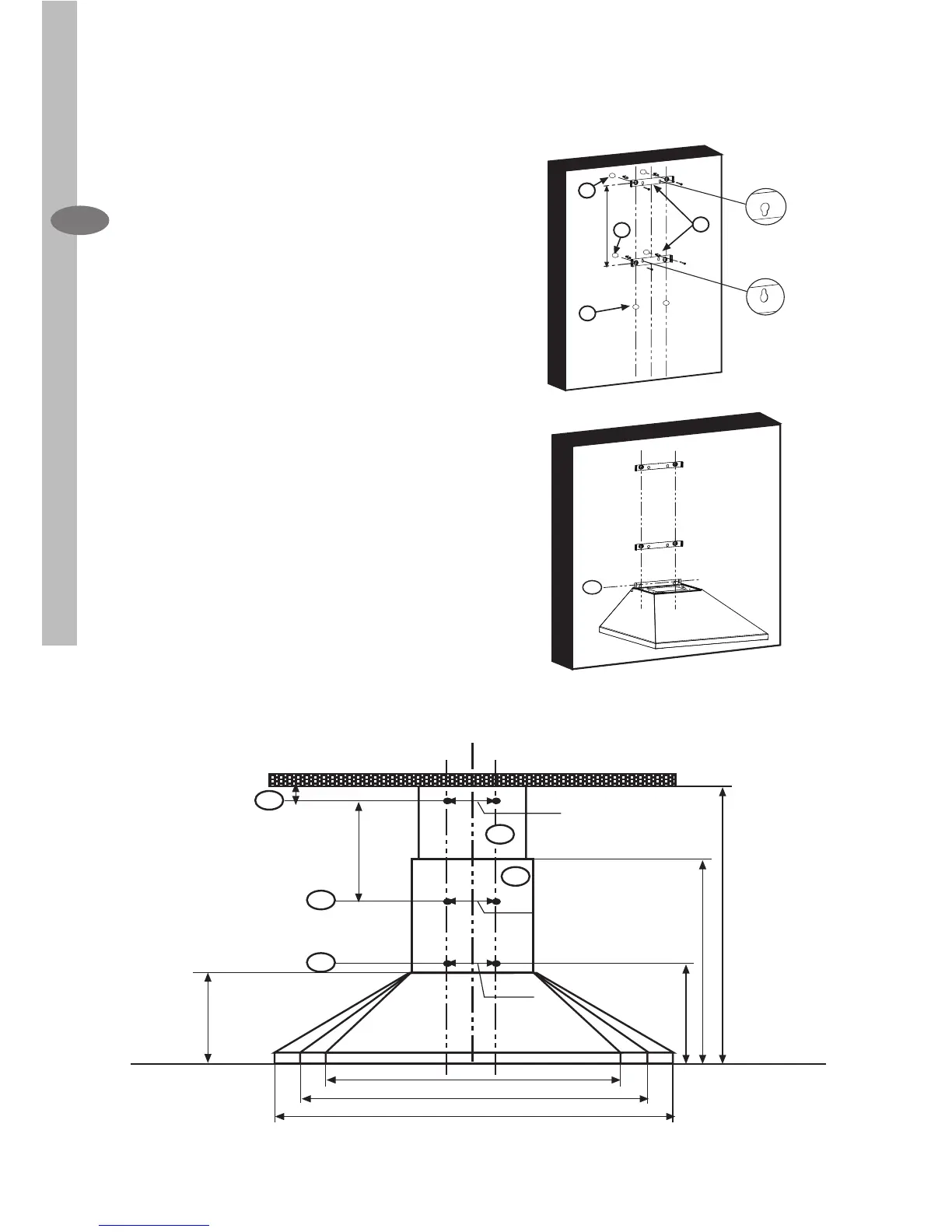

To install the hood proceed as follows:
1) Drill six 8mm diameter holes at X1-
X2-J and insert the plastic rawl plugs
supplied as illustrated ensuring the
brackets are tted as shown in the
blow up.
2) Secure the two brackets C to the wall
inserting two of the screws supplied
through the two holes on line X1-X2
as illustrated .
3) Slide the canopy down the wall to
locate the key hole over the washer
then secure the canopy to the wall
by inserting two of the screws sup-
plied through the two outer holes in
the rim of the canopy J1 and J2 as
illustrated
