Chimney assembly
Upper Chimney

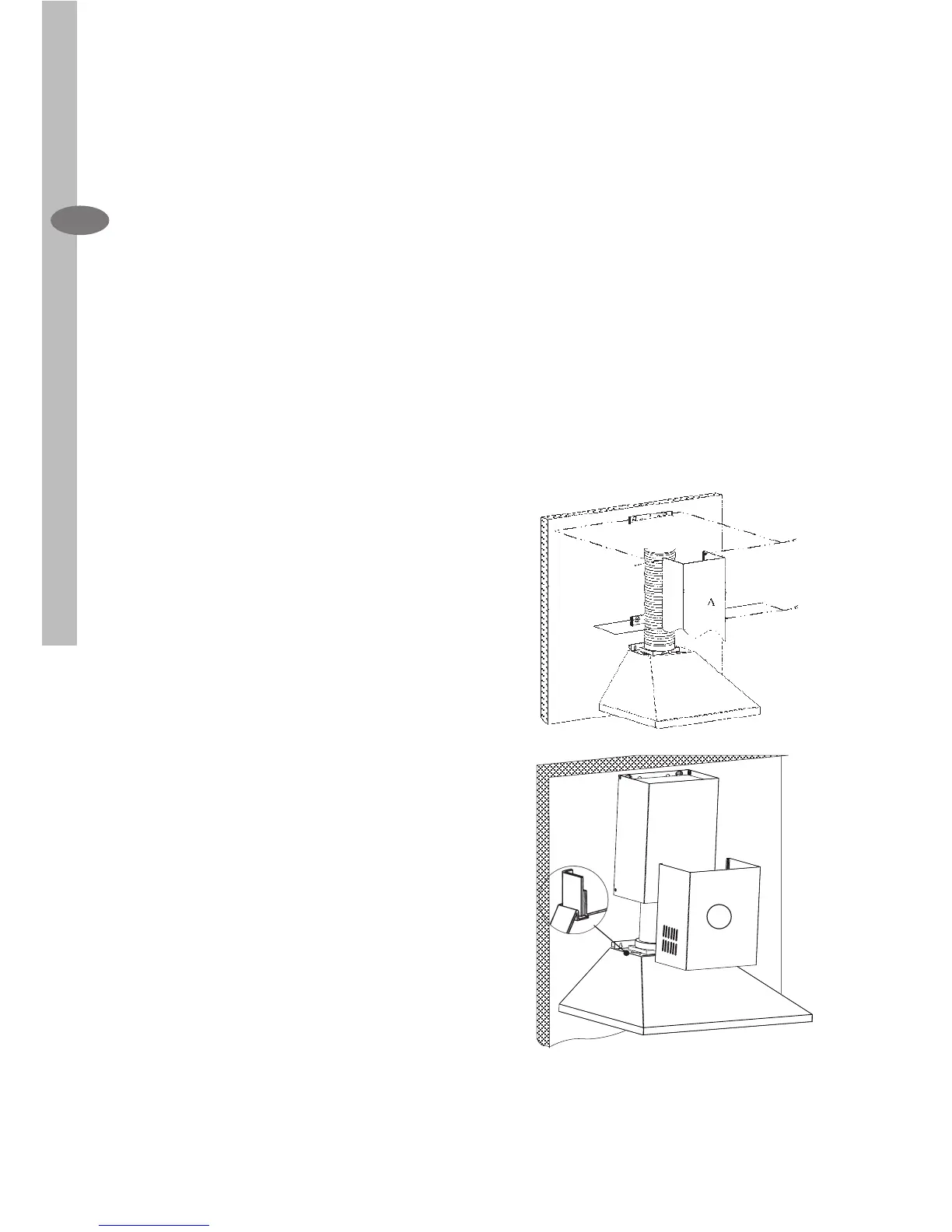

• To t the upper chimney A, place the
top edge of the chimney over the
bracket C as illustrated and secure
the chimney using two of the 2.9mm
self tapping screws provided.
• The distance H in the height between
the xing holes X1 and X2 is deter-
mined by the height of the upper
chimney A.
Lower Chimney
• To t the lower chimney B, apply slight
force to the two rear edges to increase
the width of the apperture, then sleeve
the chimney B over the chimney A as
illustrated.
Connection to the Mains
WARNING: Double insulated do
not earth
• Before connecting to the mains sup-
ply ensure the mains voltage corre-
sponds to the voltage on the rating
plate inside the hood.
• This appliance is tted with a 2 core
mains cable and must be permanently
connected to the electricity supply via
a double-pole switch having 3mm
minimum contact gap on each pole.
