The hood is fi xed using the holes
located in the rim around the base of
the casing visible when the inlet grille is
in the open position.

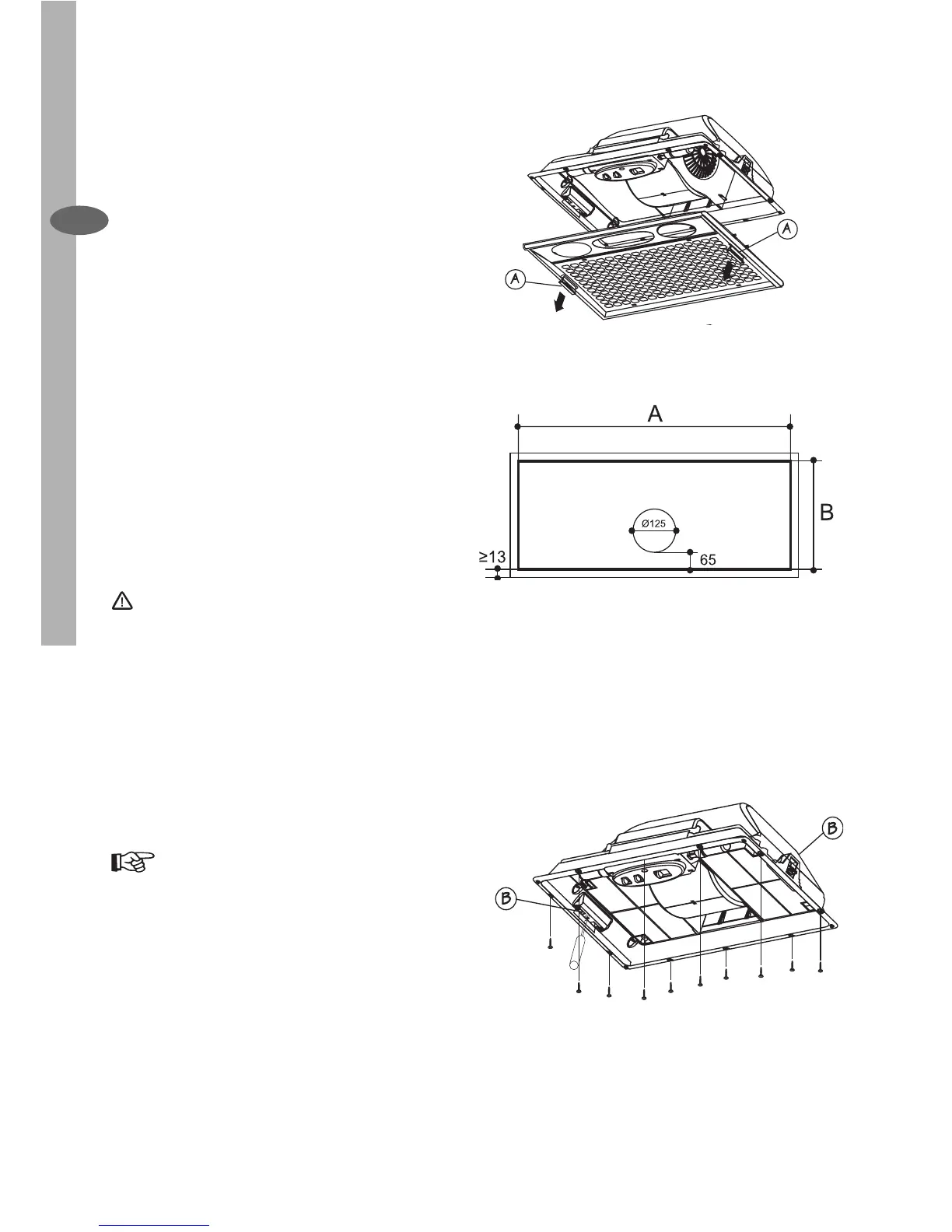

Support the grille panel with one hand
and draw down on the two grey handles
(A) which are located on each side of
the grille with the other hand.
Raise the hood into the cut out and mark
the positions for the fi xing screws. Pilot
drill the fi xing holes and fi t the hood.
Venting
The hood is more effective when used
in the extraction mode (ducted to the
outside). Venting kits maybe purchased
through your retailer or DIY store, and
must be ducted to an outside vent of
125mm (5”) minimum.
The ducting used must be manufac-
tured from fi re retardant material.
When the hood is ducted externally the
charcoal fi lters must be removed.
Recirculation
If you are using the hood for recirculating,
ensure the charcoal fi lters are in position
following the instructions below.
Inserting the Charcoal
Filters
1.Remove the grille panel, support the
grille with one hand and draw down
on the two grey handles (located at
each side of the grille).
2.The charcoal fi lters are handed and
should be fi tted one at a time.
3.Insert one end of the fi lter into the
slots in the fan housing, then lower
the other and until the tab engages
the slot in the casing.
